G12520.0X13.5

G12520.0X13.5

SKU DOR5973192
by Dormer Pramet
Primary Use: Possible Use:

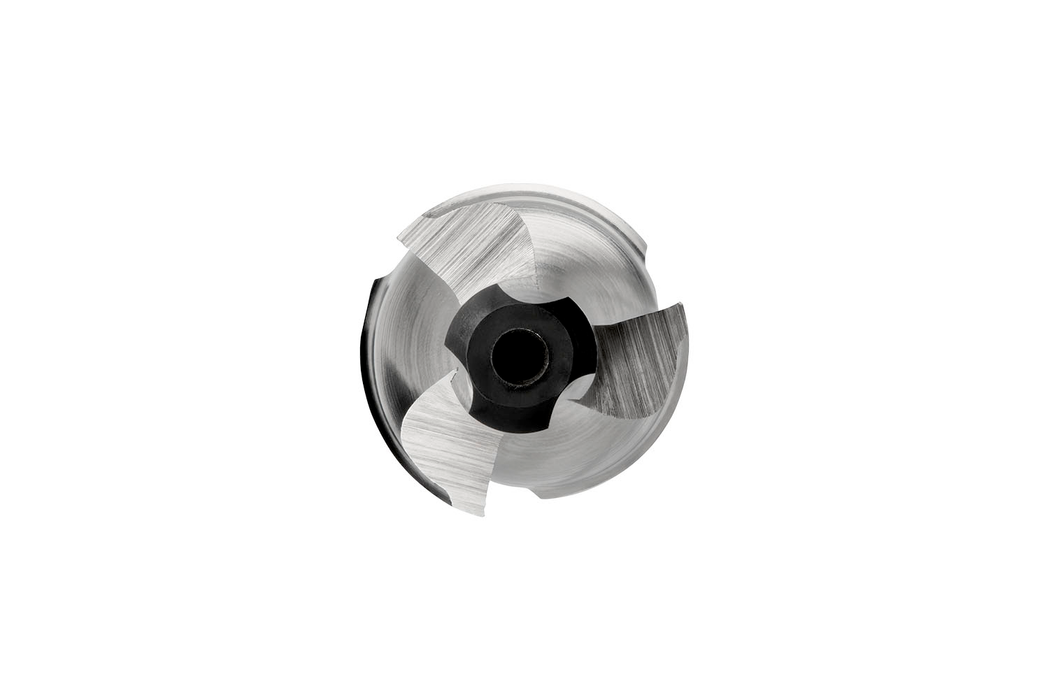

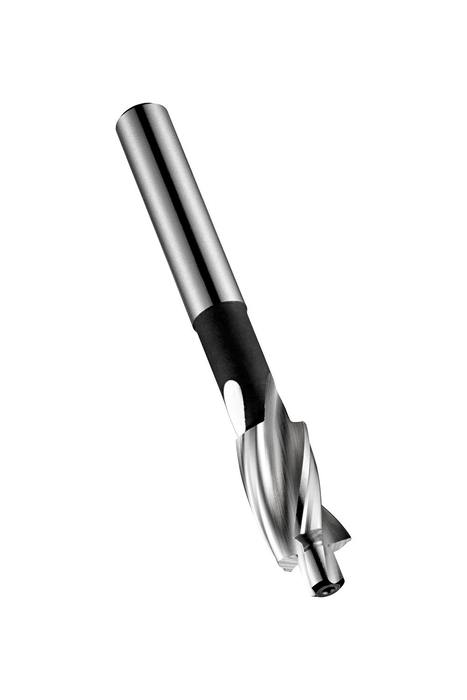

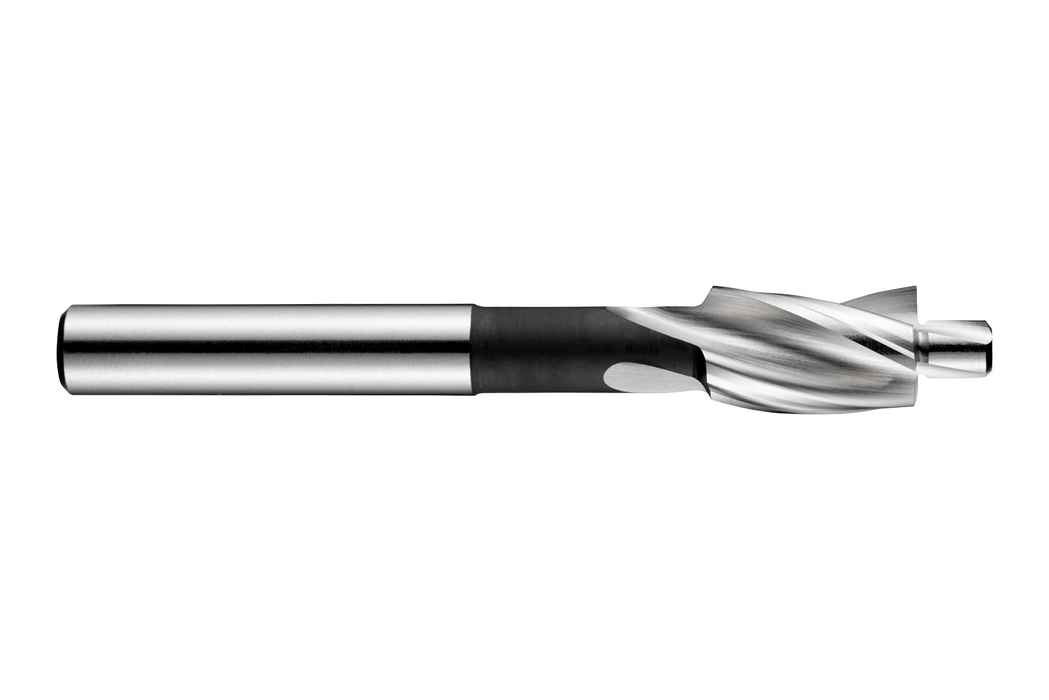

Counterbore with 3-flutes, diameter 20.00mm with an overall length of 100mm and a flute length of 22mm and 12.5mm straight shank, according to DIN 373 standard to produce a counterbore with the aid of a non-drilling pilot with a diameter of 13.50mm for normal fit clearance for M12, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$68.71 - $68.71
$68.71
$68.71 - $68.71
$68.71
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

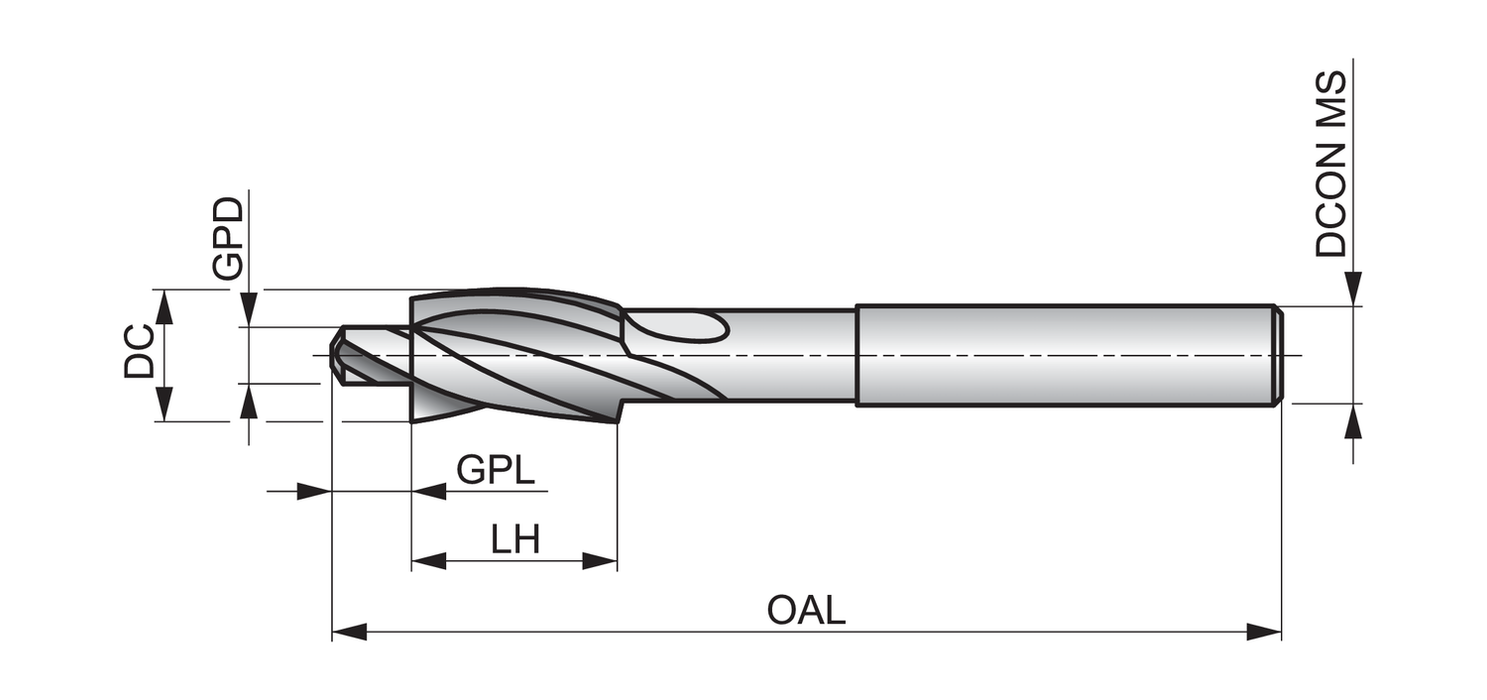

Material: HSS

Cutting Diameter - in (DC): 0.7874

Cutting Diameter - mm (DC): 20.0

Overall Length (OAL): 3.937

Connetion Diameter: 0.4921

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 107744

EAN: 7320760107744

MFG Part Number: 5973192
