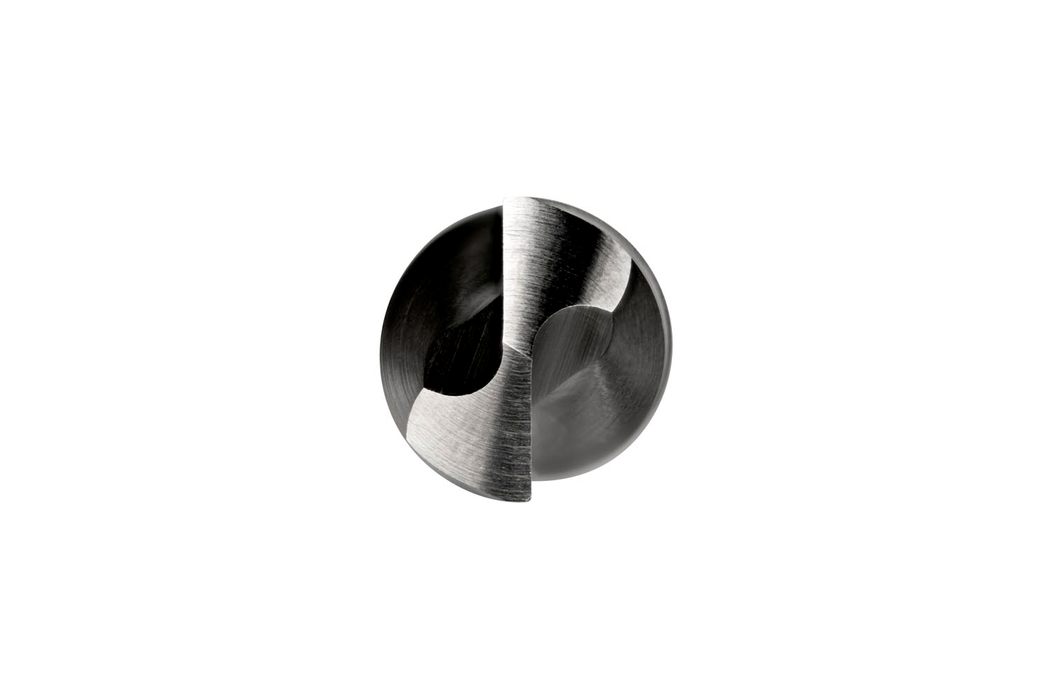

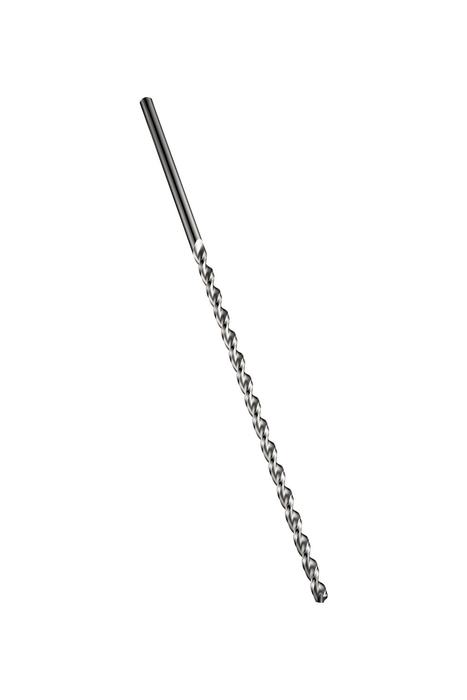

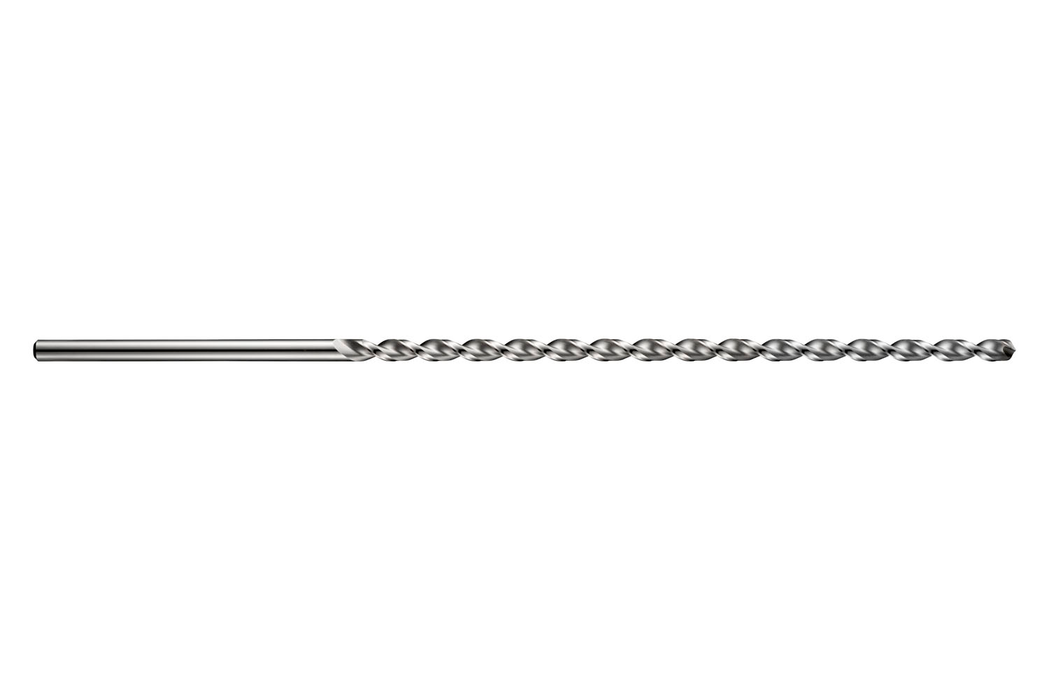

A97810.0X430

A97810.0X430

SKU DOR5973194
by Dormer Pramet
Primary Use: Possible Use:

Extra long length PFX drill with straight shank, diameter 10mm with an overall length of 430mm and flute length of 295mm according to DIN 1869 / 3 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 25xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$390.00 - $390.00
$390.00
$390.00 - $390.00
$390.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.3937

Cutting Diameter - mm (DC): 10.0

Drill Point Angle - deg: 130

Flute Length: 11.6142

Lenxth x Diameter Ratio: 25

Overall Length (OAL): 16.9291

Connetion Diameter: 0.3937

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 148983

EAN: 7320760148983

MFG Part Number: 5973194
