G1256.5X3.2

G1256.5X3.2

SKU DOR5973200
by Dormer Pramet
Primary Use: Possible Use:

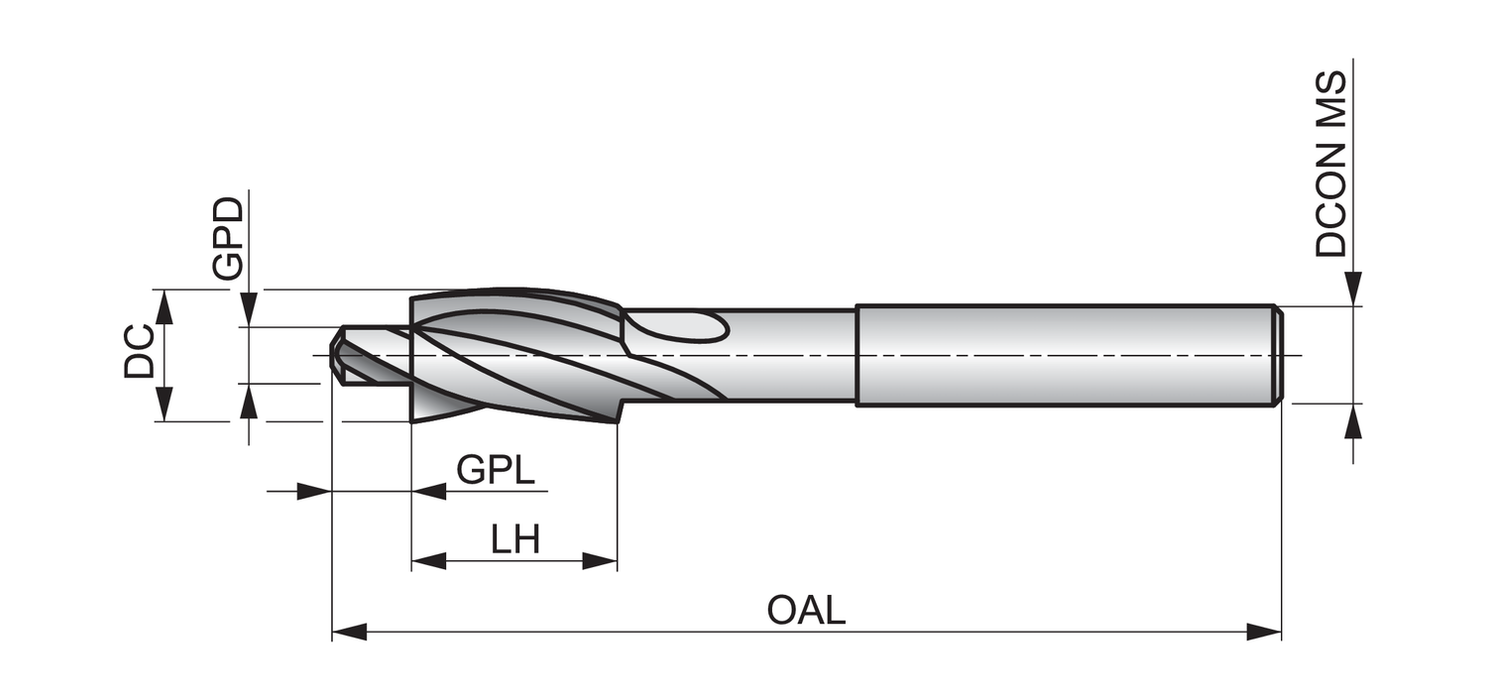

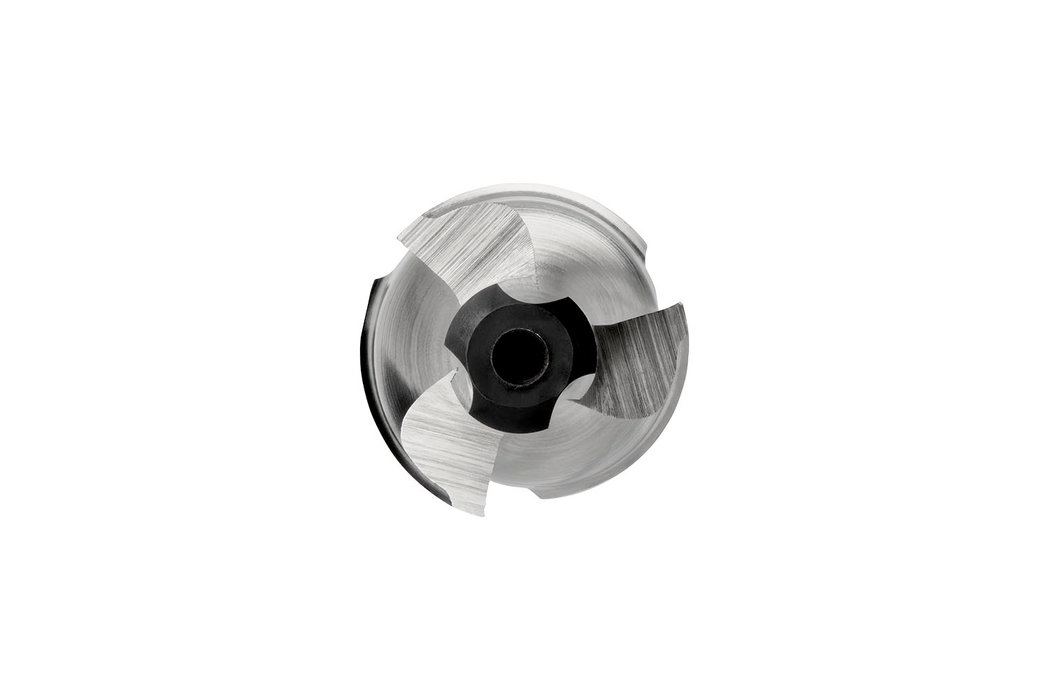

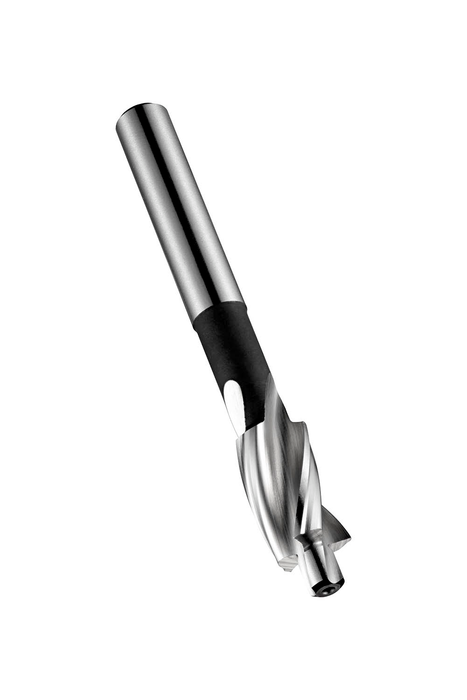

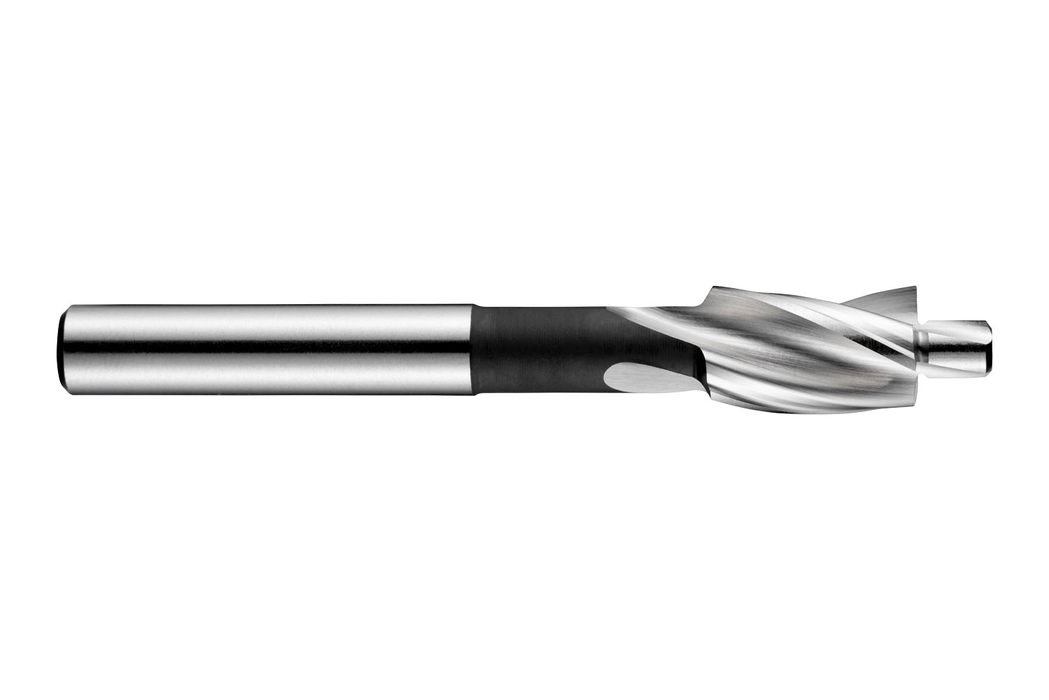

Counterbore with 3-flutes, diameter 6.50mm with an overall length of 71mm and a flute length of 14mm and 5mm straight shank, according to DIN 373 standard to produce a counterbore with the aid of a non-drilling pilot with a diameter of 3.20mm for a close fit clearance for M3, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$31.24 - $31.24
$31.24
$31.24 - $31.24
$31.24
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Cutting Diameter - in (DC): 0.2559

Cutting Diameter - mm (DC): 6.5

Overall Length (OAL): 2.7953

Connetion Diameter: 0.1969

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 374405

EAN: 7320760374405

MFG Part Number: 5973200
