G1258.0X4.5

G1258.0X4.5

SKU DOR5973224
by Dormer Pramet
Primary Use: Possible Use:

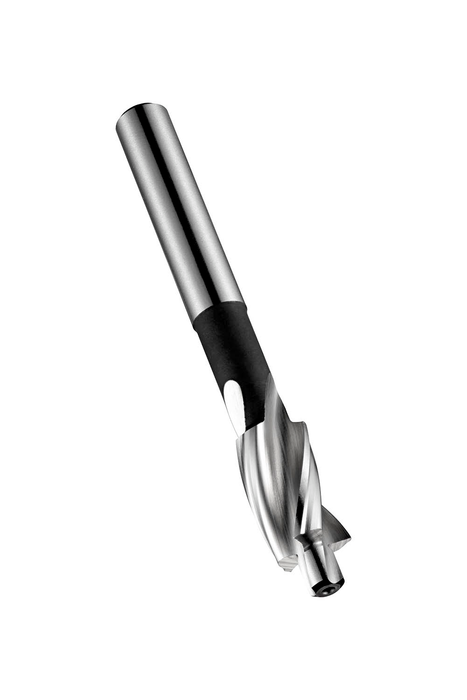

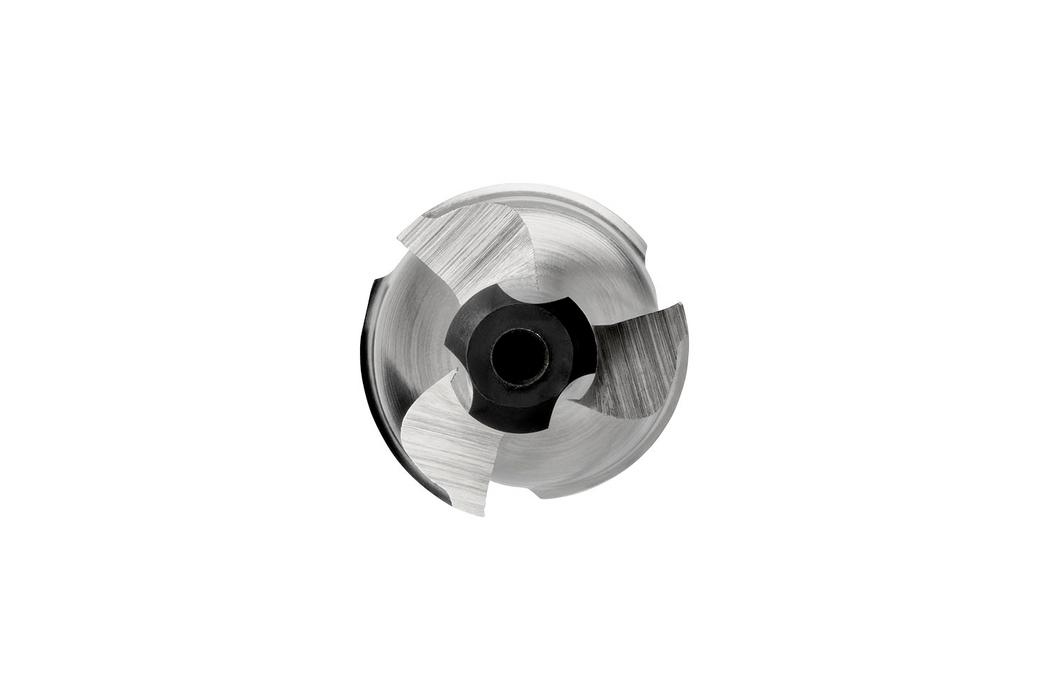

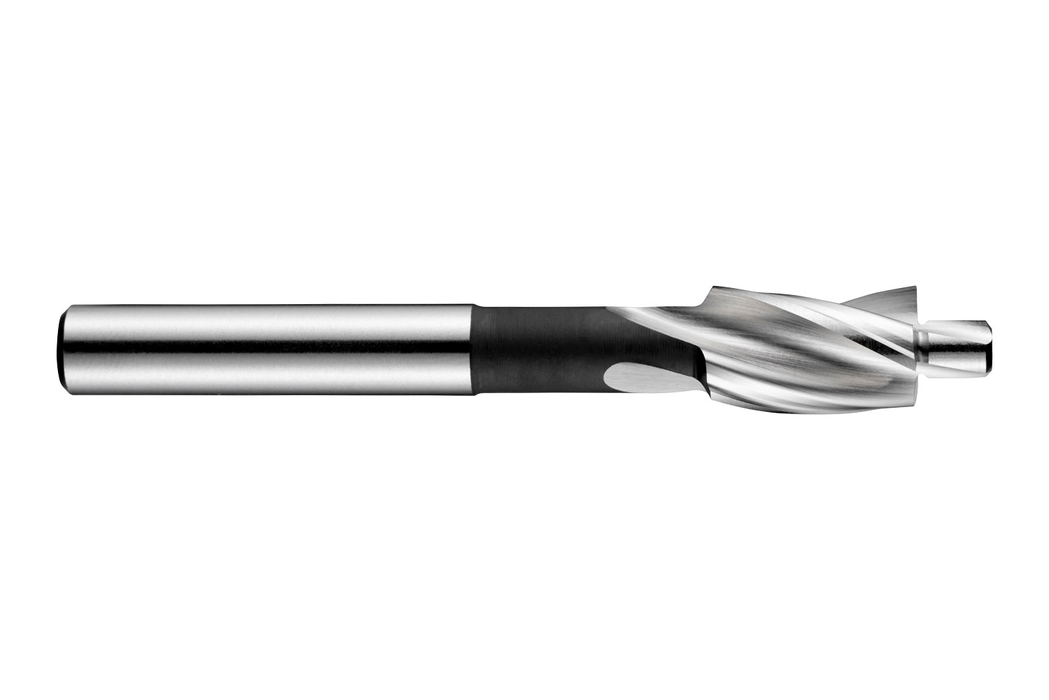

Counterbore with 3-flutes, diameter 8.00mm with an overall length of 71mm and a flute length of 14mm and 5mm straight shank, according to DIN 373 standard to produce a counterbore with the aid of a non-drilling pilot with a diameter of 4.50mm for normal fit clearance for M4, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$29.07 - $29.07
$29.07
$29.07 - $29.07
$29.07
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

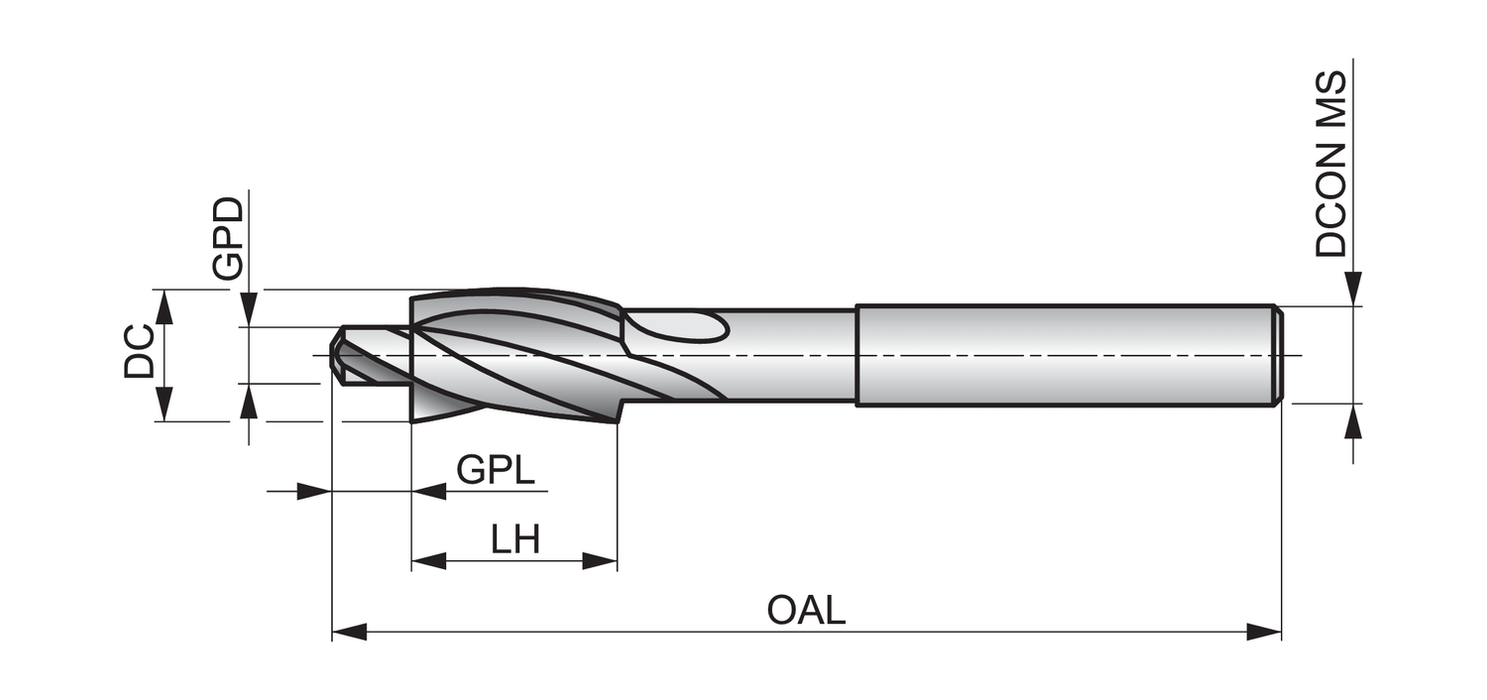

Material: HSS

Cutting Diameter - in (DC): 0.315

Cutting Diameter - mm (DC): 8.0

Overall Length (OAL): 2.7953

Connetion Diameter: 0.1969

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 107805

EAN: 7320760107805

MFG Part Number: 5973224
