A9789.5X410

A9789.5X410

SKU DOR5973265
by Dormer Pramet
Primary Use: Possible Use:

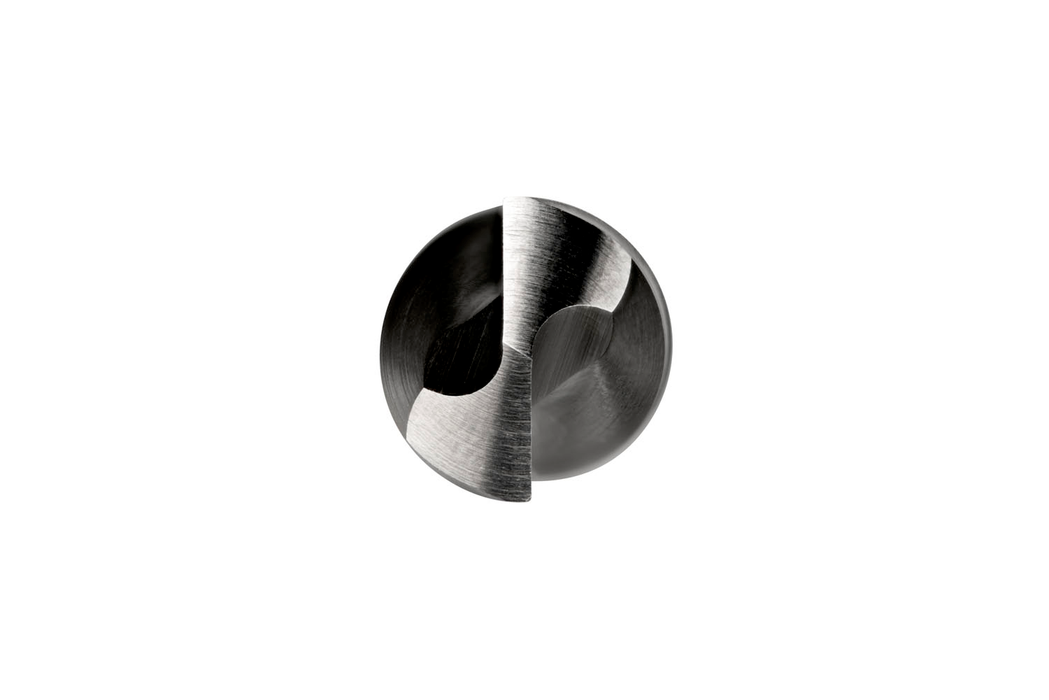

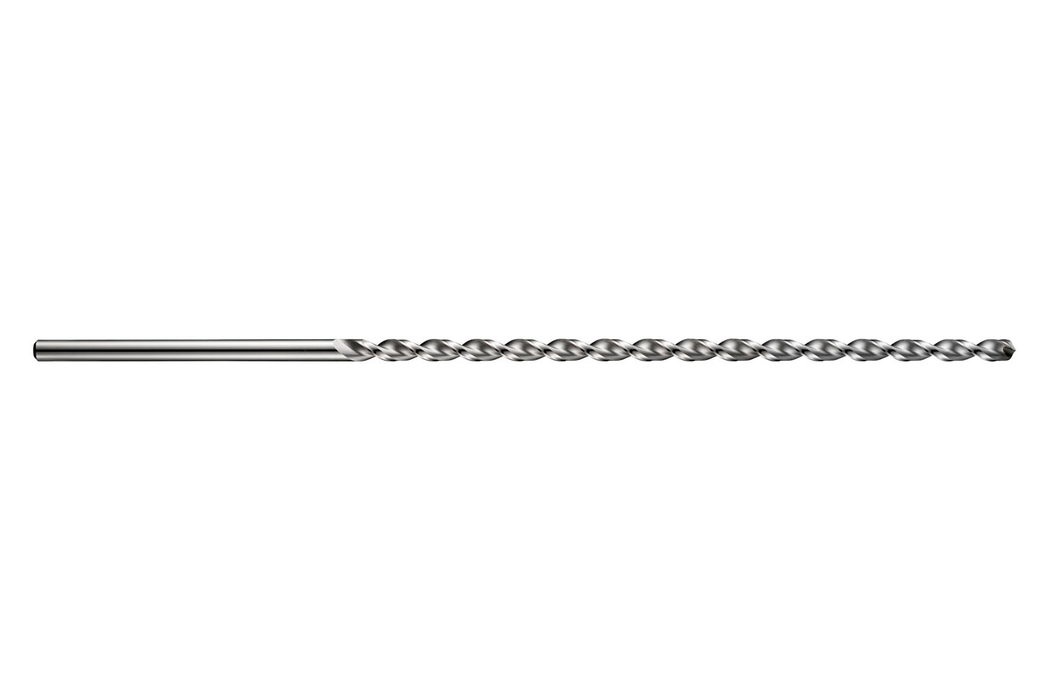

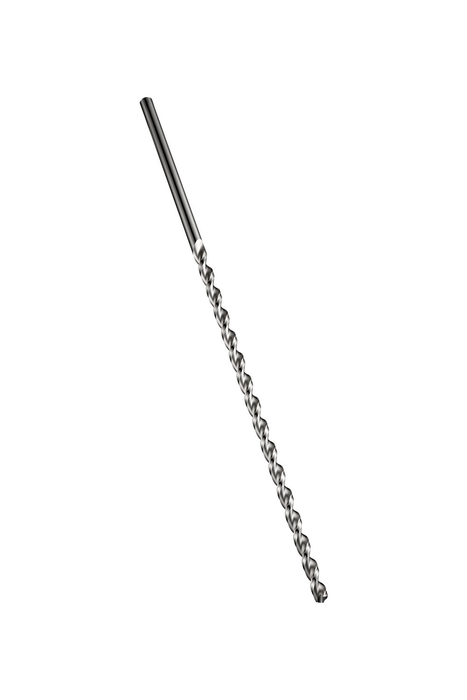

Extra long length PFX drill with straight shank, diameter 9.5mm with an overall length of 410mm and flute length of 280mm according to DIN 1869 / 3 standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 25xD drilling without pecking in steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$405.79 - $405.79
$405.79
$405.79 - $405.79
$405.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Cutting Diameter - in (DC): 0.374

Cutting Diameter - mm (DC): 9.5

Drill Point Angle - deg: 130

Flute Length: 11.0236

Lenxth x Diameter Ratio: 25

Overall Length (OAL): 16.1417

Connetion Diameter: 0.374

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 148976

EAN: 7320760148976

MFG Part Number: 5973265
