A9402.0

SKU DOR5973278
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Original price $23.81 CAD - Original price $23.81 CAD
Original price
$23.81 CAD
$23.81 CAD - $23.81 CAD
Current price $23.81 CAD

Sold in packs of: 1

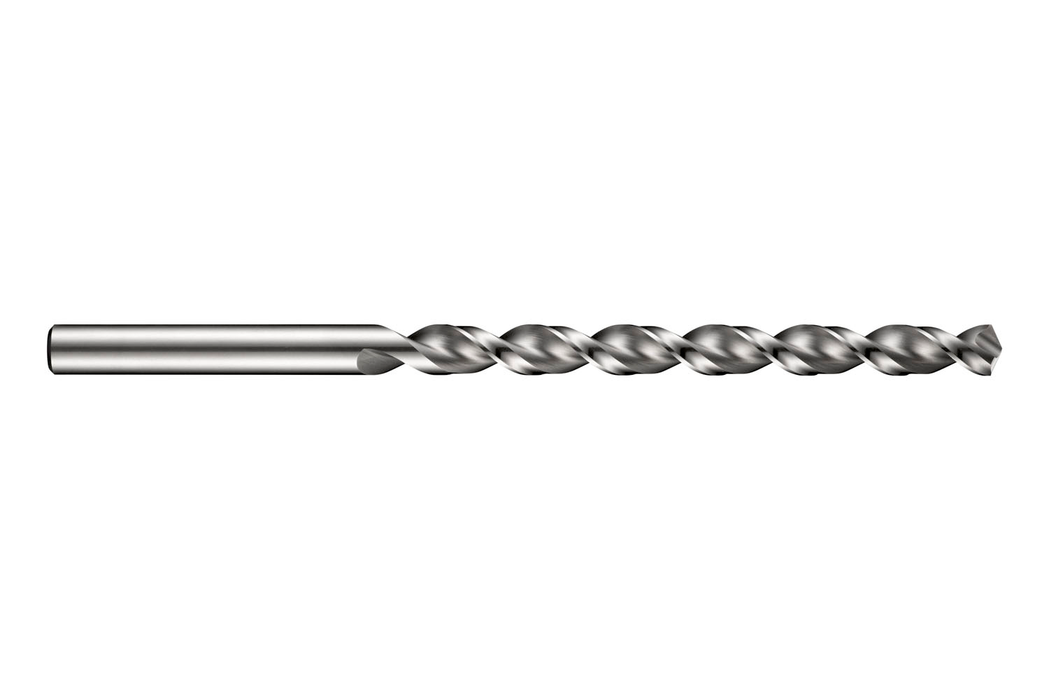

Long series PFX drill with straight shank, diameter 2mm with an overall length of 85mm and flute length of 56mm according to DIN/ANSI standard with 130° point angle, cobalt based HSS-E with bright finish, quick spiral and parabolic web for 10xD drilling without pecking in steel, stainless steel and super-alloy

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A9402.0
GradeBright
Product Number5973278
Product FamilyA940
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)3.3465"
Overall Length — mm (OAL)85.0 mm
Flute Length — in (LCF)2.2047"
Flute Length — mm (LCF)56.0 mm
Length × Diameter Ratio10
Connection Dia. — in (DCON)0.0787"
Connection Dia. — mm (DCON)2.0 mm
Drill Point Angle (SIG)130°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN/ANSI
Reference Numbers
EDP Number54604
EAN7320760054604
File Type Download
A9402.0 — 3D Model STP Download
A9402.0 — Line Drawing PDF Download
