G12510.0X4.2

G12510.0X4.2

SKU DOR5973310
by Dormer Pramet
Primary Use: Possible Use:

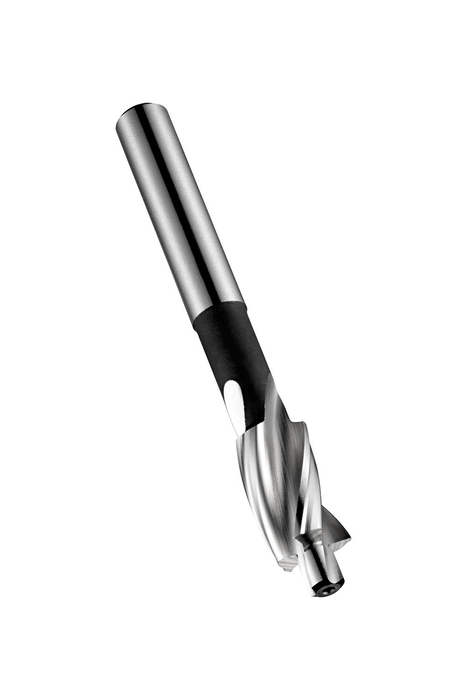

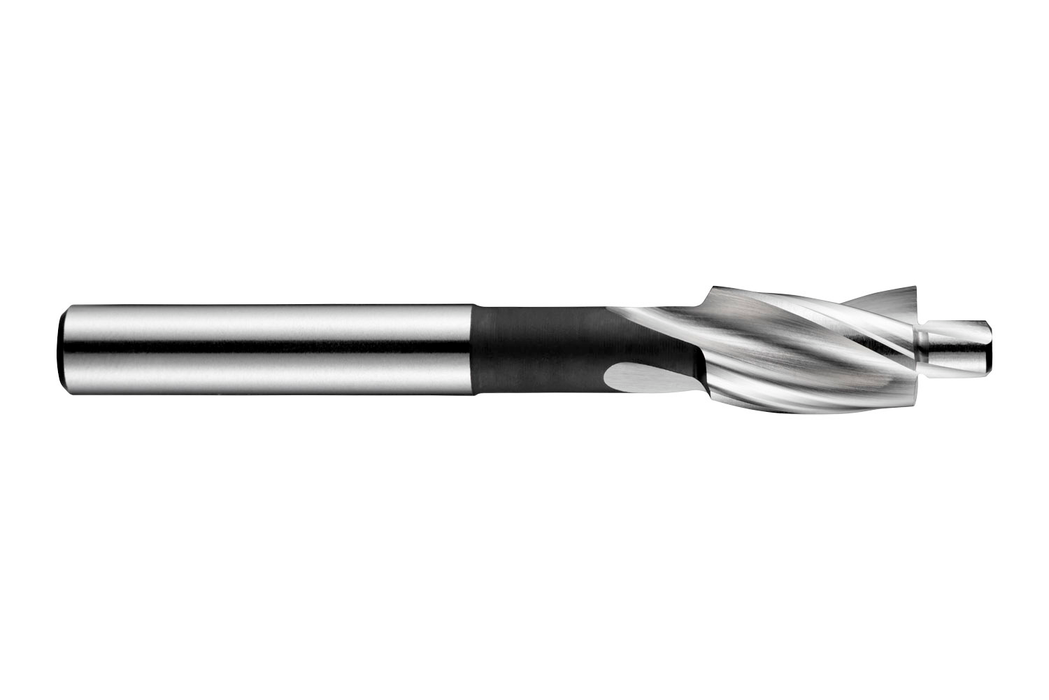

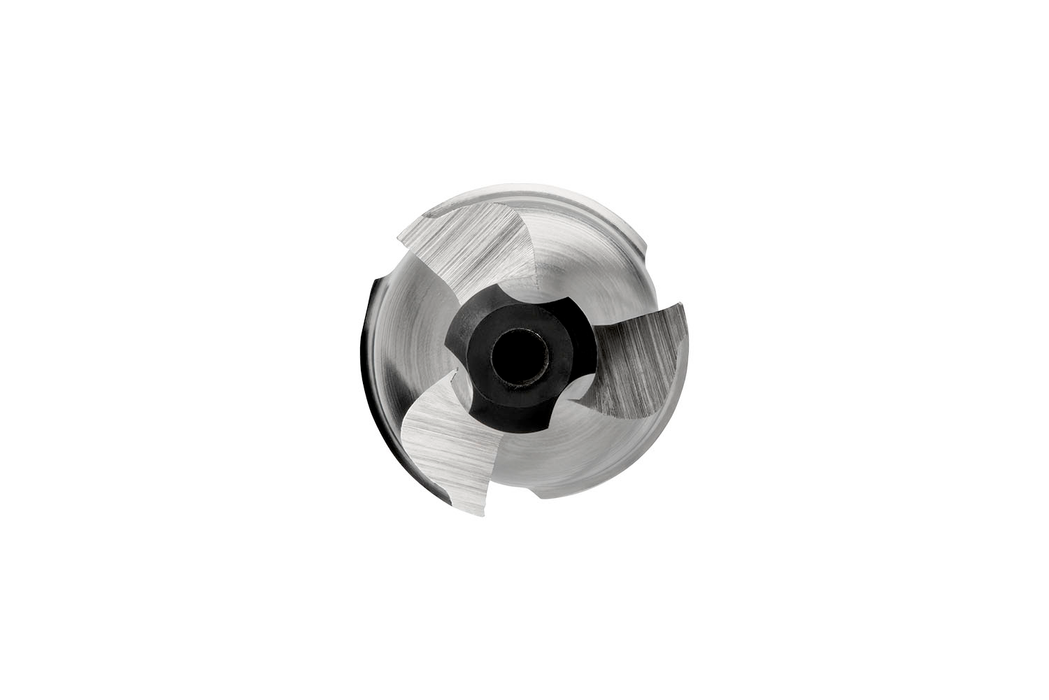

Counterbore with 3-flutes, diameter 10.00mm with an overall length of 80mm and a flute length of 18mm and 8mm straight shank, according to DIN 373 standard to produce a counterbore with the aid of a non-drilling pilot with a diameter of 4.20mm for a pre-hole tapping diameter M5, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$31.40 - $31.40
$31.40
$31.40 - $31.40
$31.40
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

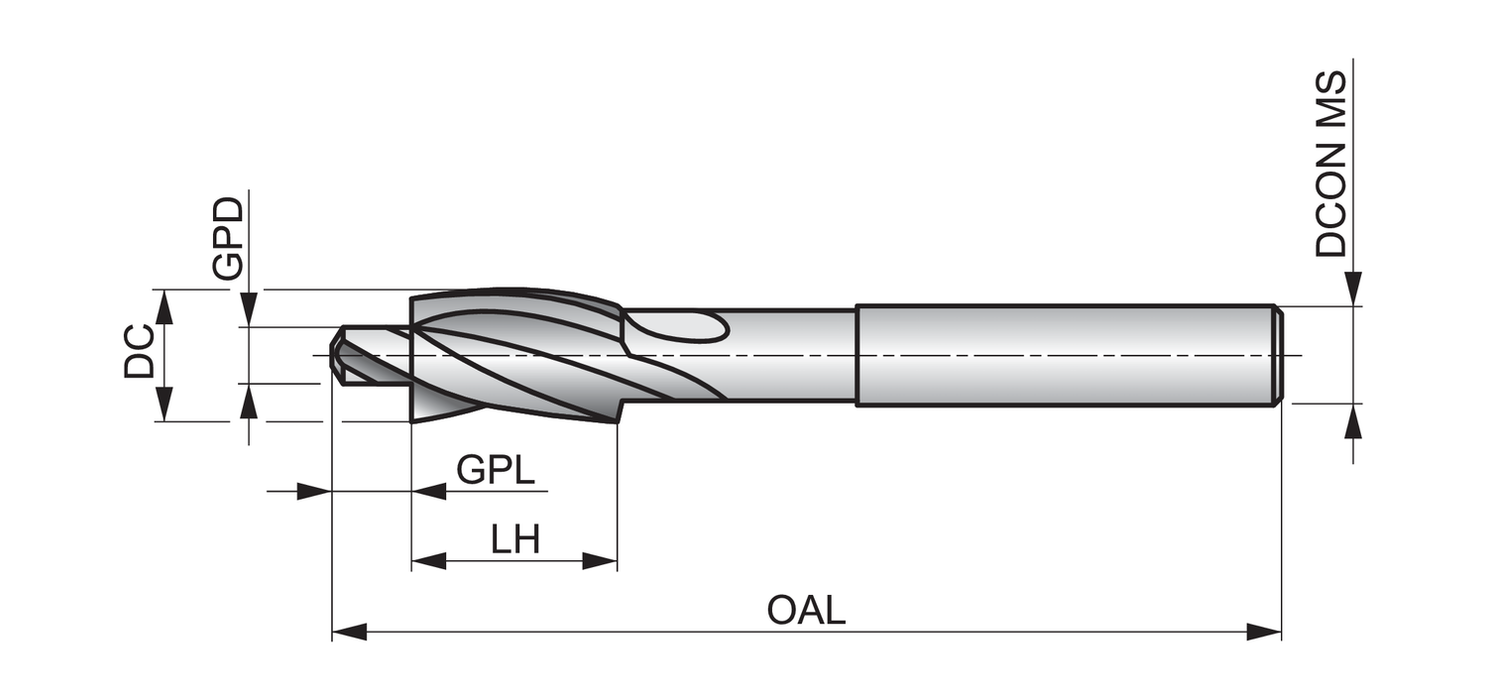

Material: HSS

Cutting Diameter - in (DC): 0.3937

Cutting Diameter - mm (DC): 10.0

Overall Length (OAL): 3.1496

Connetion Diameter: 0.315

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 107607

EAN: 7320760107607

MFG Part Number: 5973310
