G33825.0

G33825.0

SKU DOR5973321
by Dormer Pramet
Primary Use: Possible Use:

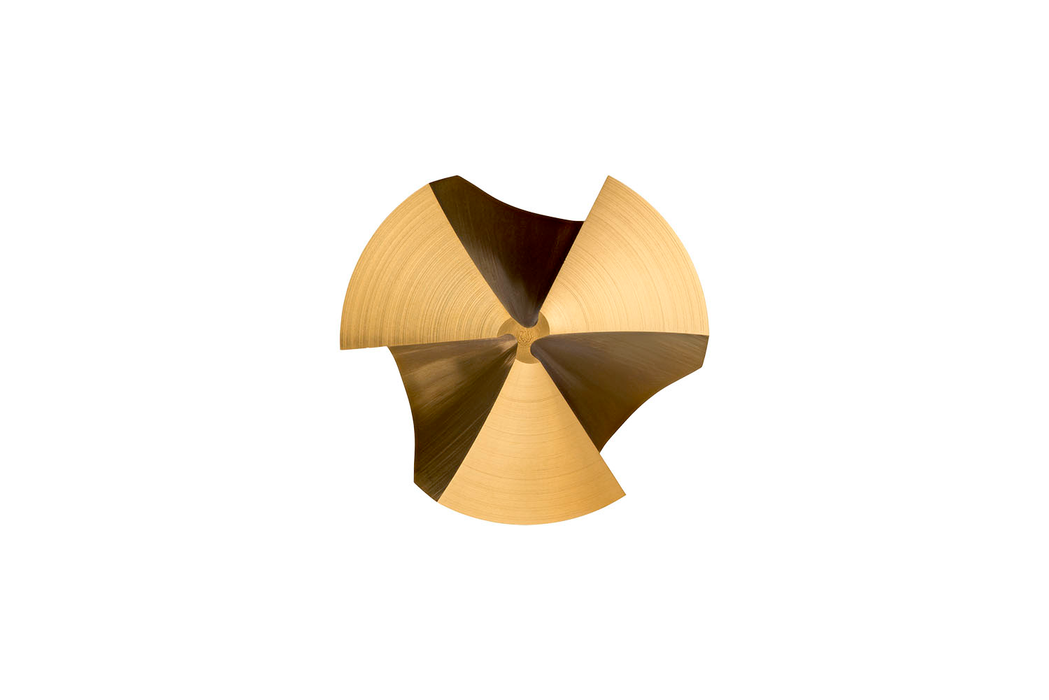

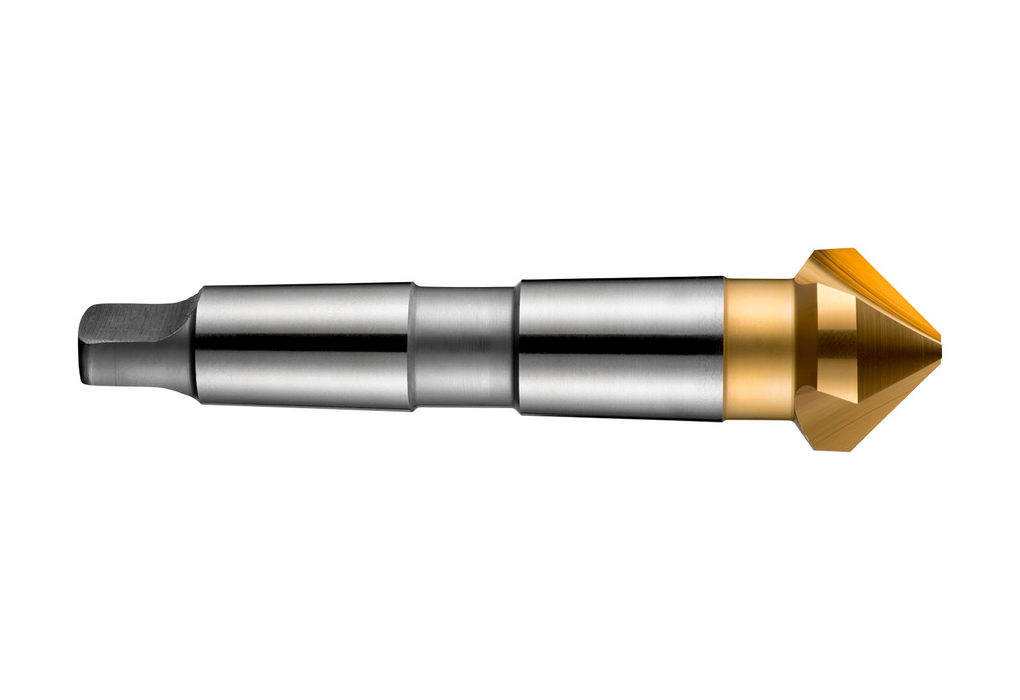

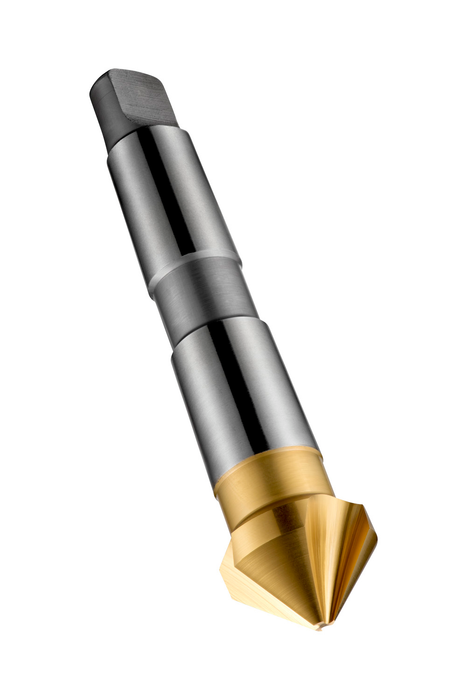

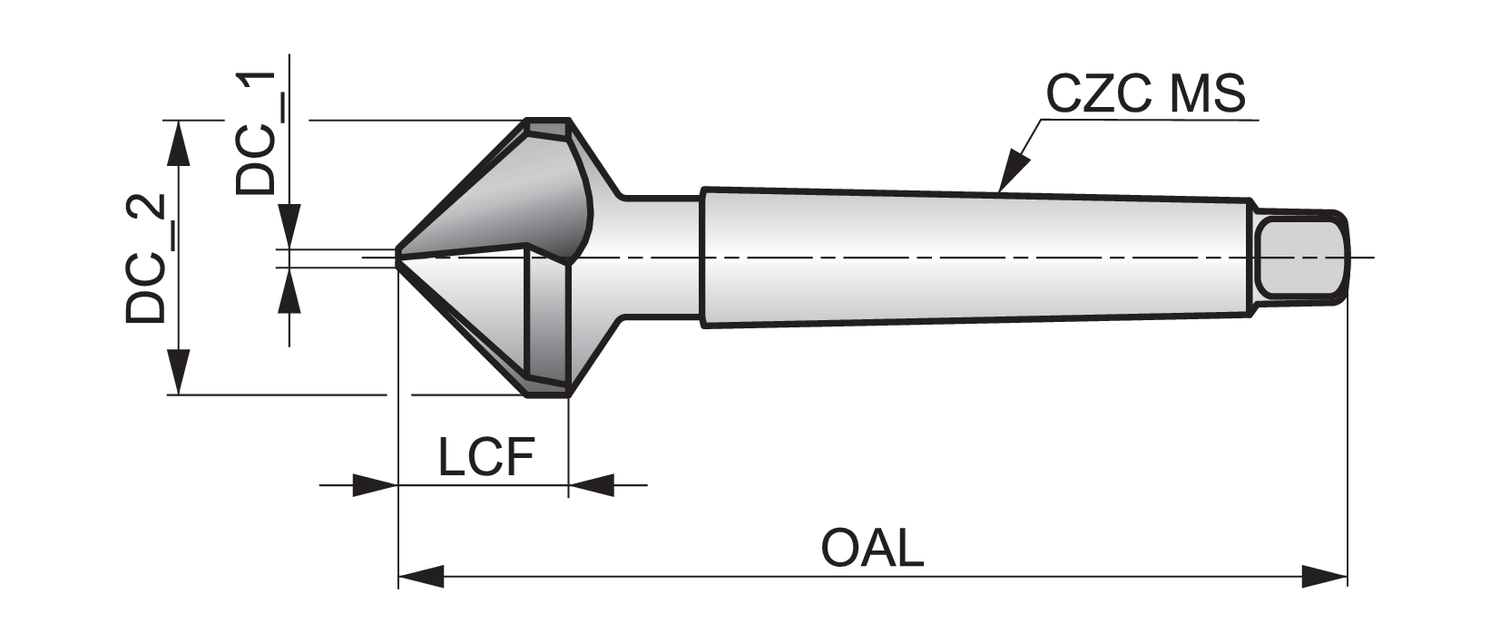

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 25.00mm with an overall length of 106mm and a head length of 15.5mm and MT 2 Morse-taper shank, according to DIN 335 D standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.80mm, HSS with standard TiN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$204.56 - $204.56
$204.56
$204.56 - $204.56
$204.56
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Drill Point Angle - deg: 90

Overall Length (OAL): 4.1732

Tool Direction: Right

Shank: Morse Taper Shank

Grade: TiN

EDP: 109502

EAN: 7320760109502

MFG Part Number: 5973321
