G13212.5

G13212.5

SKU DOR5973334
by Dormer Pramet
Primary Use: Possible Use:

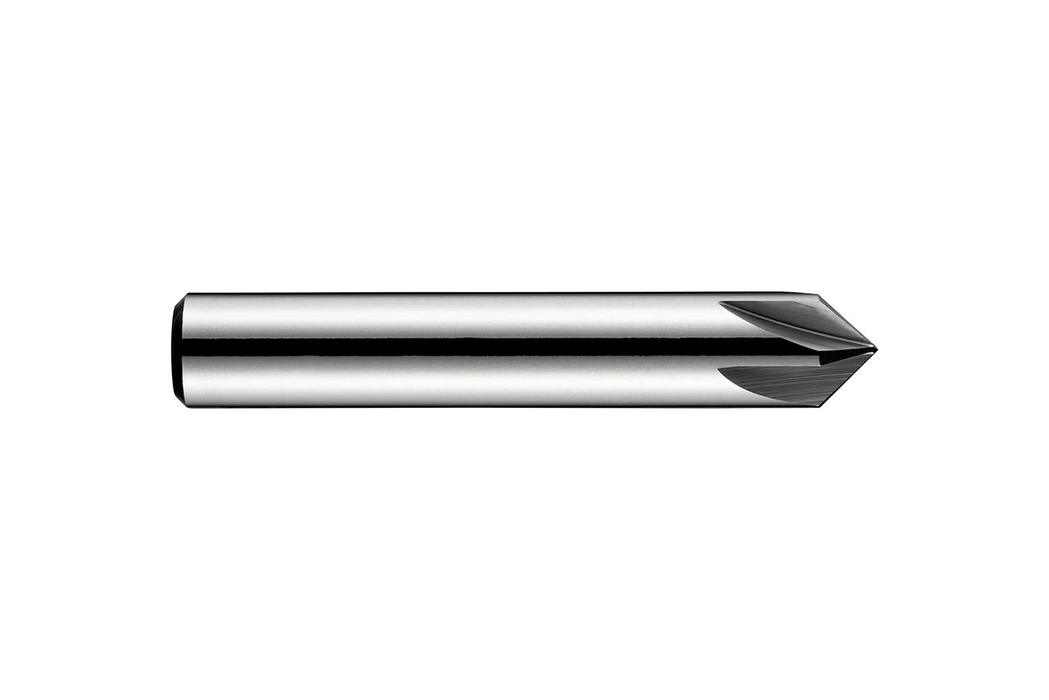

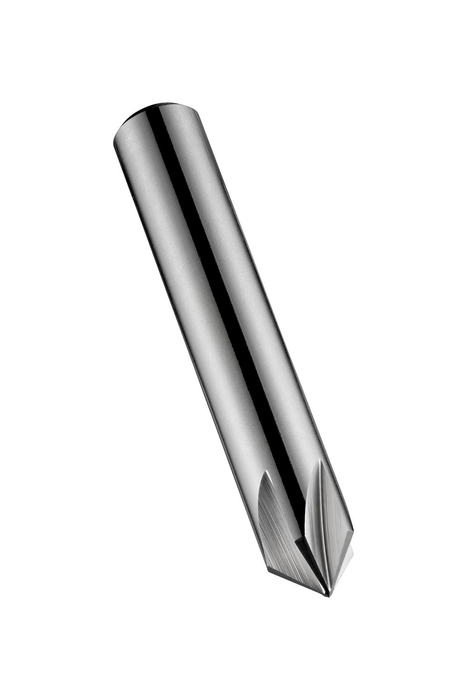

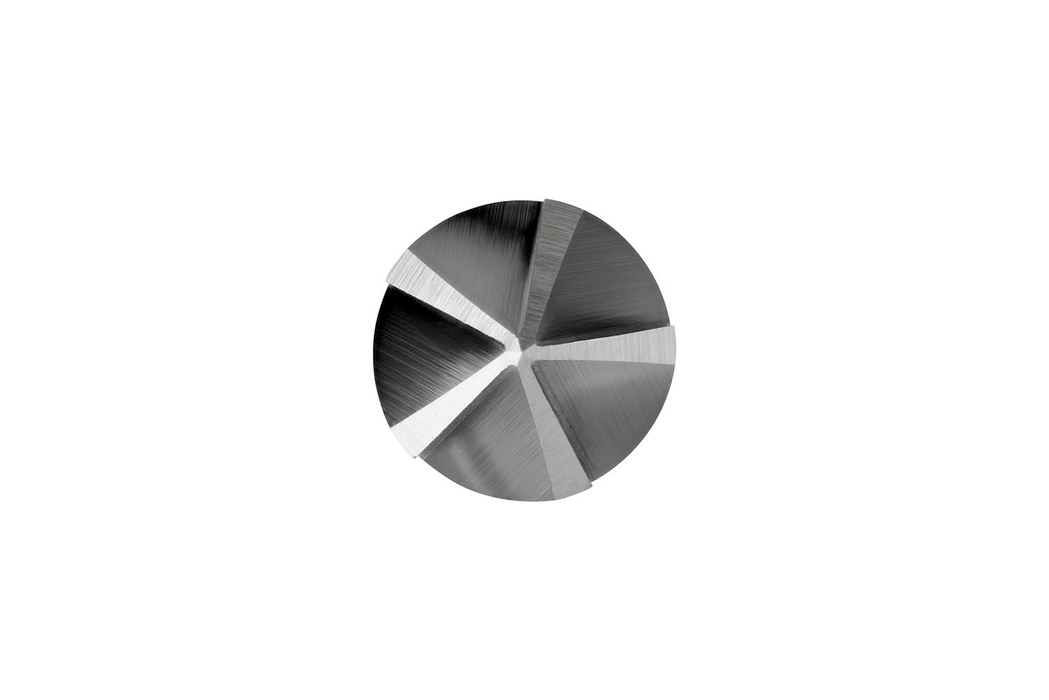

Rose pattern countersink with 5-flutes, 90° chamfering angle, maximum diameter 12.50mm with an overall length of 48mm and a head length of 15.5mm and 8mm straight shank, according to DIN 335 A standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.00mm, HSS with standard bright finish for machining tool steel, grey cast-iron, cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$41.39 - $41.39
$41.39
$41.39 - $41.39
$41.39
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

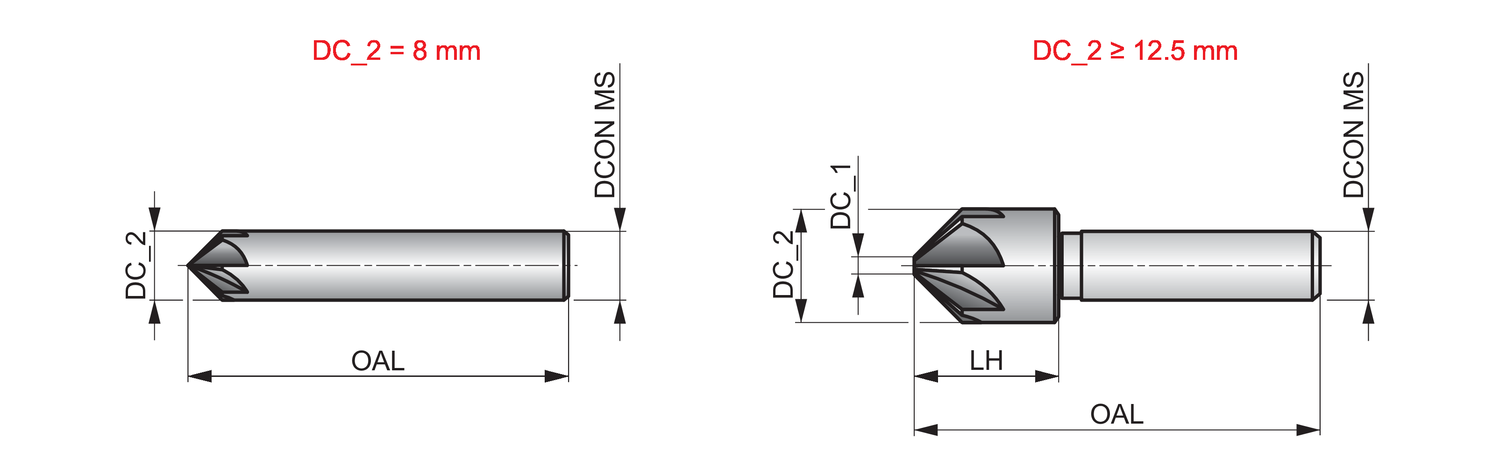

Material: HSS

Drill Point Angle - deg: 90

Overall Length (OAL): 1.8898

Connetion Diameter: 0.315

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 108260

EAN: 7320760108260

MFG Part Number: 5973334
