G13628.0

G13628.0

SKU DOR5973383
by Dormer Pramet
Primary Use: Possible Use:

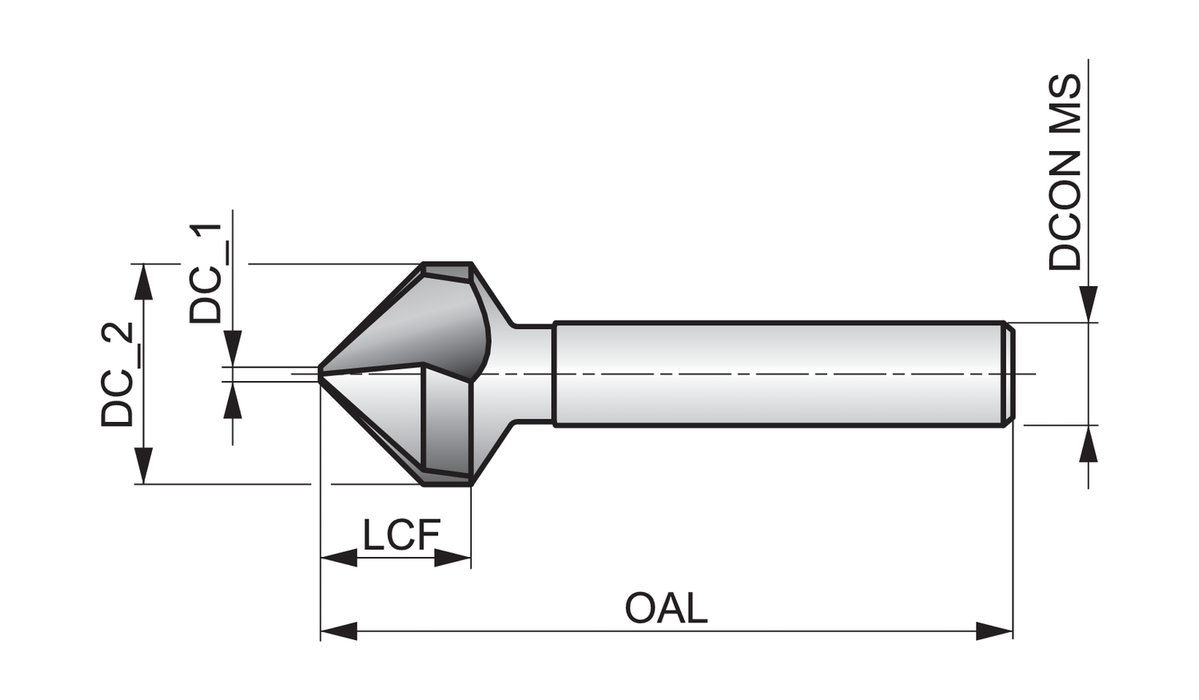

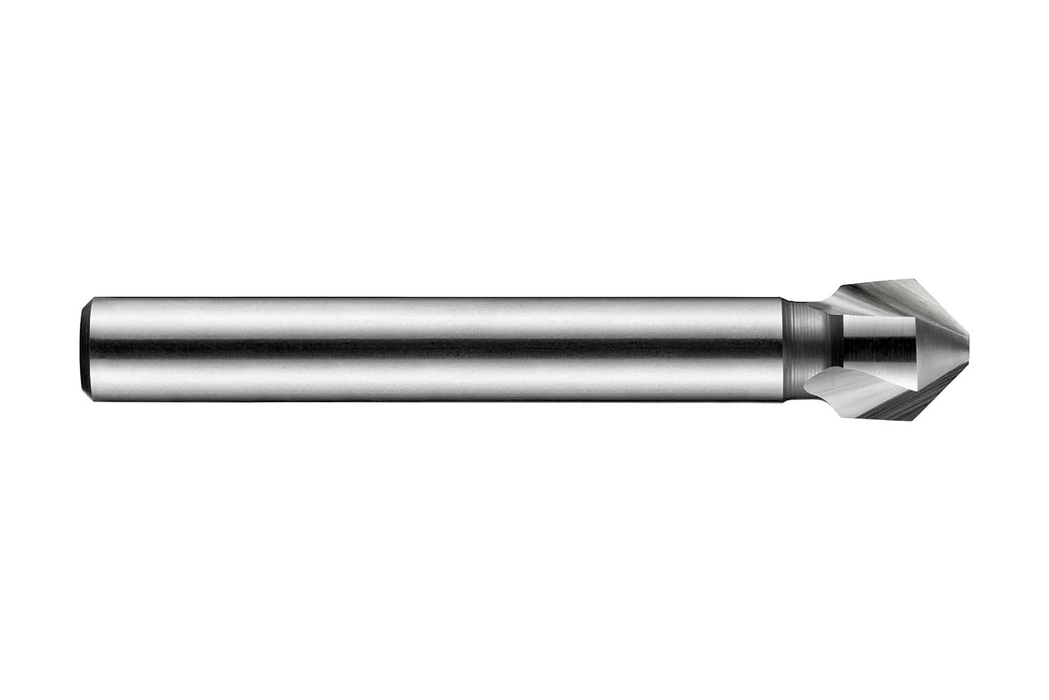

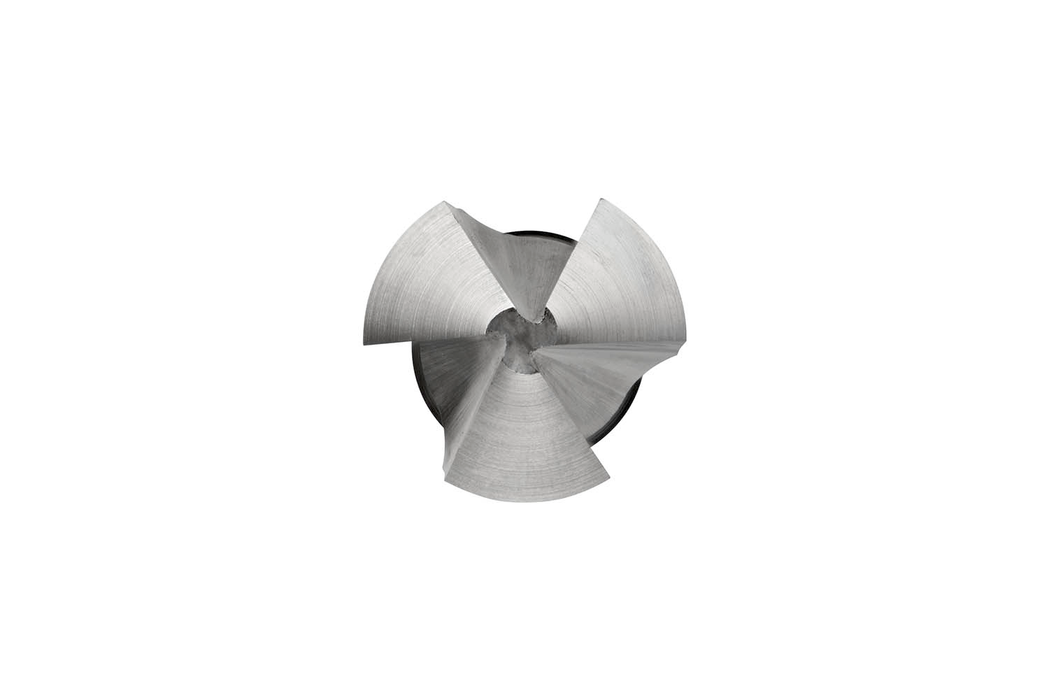

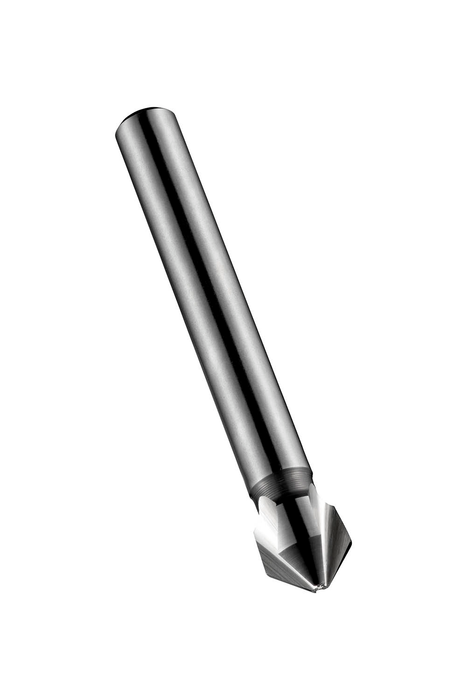

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 28.00mm with an overall length of 71mm and a head length of 16.5mm and 12mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.00mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$185.53 - $185.53
$185.53
$185.53 - $185.53
$185.53
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Drill Point Angle - deg: 90

Overall Length (OAL): 2.7953

Connetion Diameter: 0.4724

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 108628

EAN: 7320760108628

MFG Part Number: 5973383
