G13631.0

G13631.0

SKU DOR5973387
by Dormer Pramet
Primary Use: Possible Use:

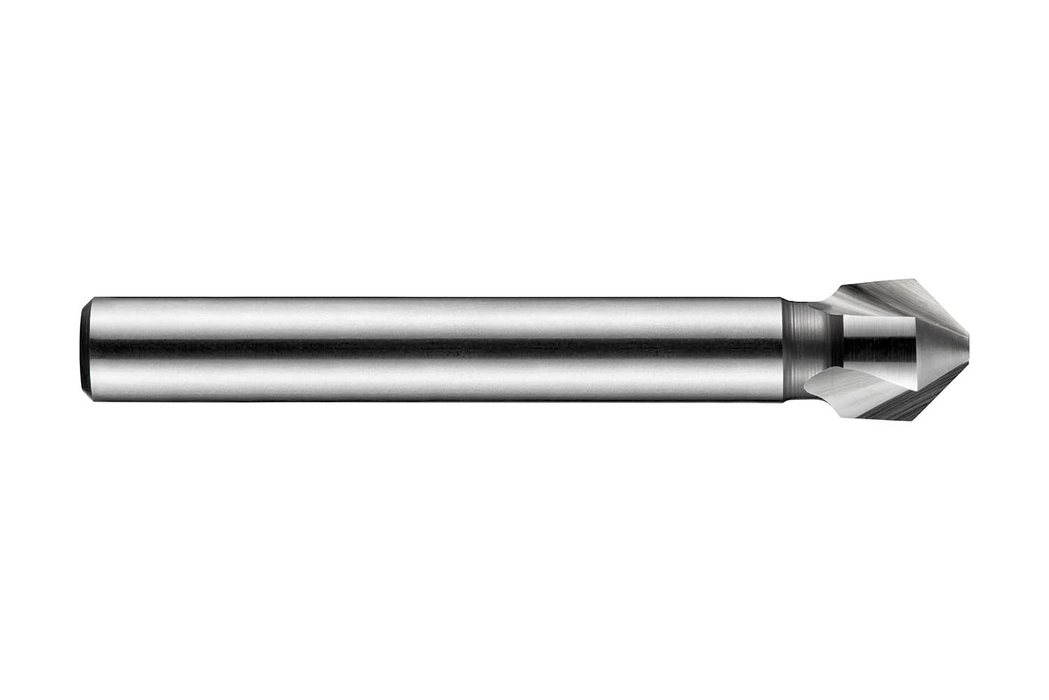

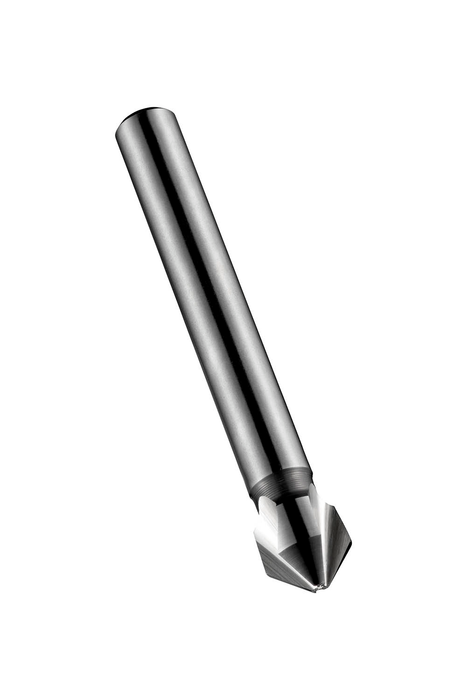

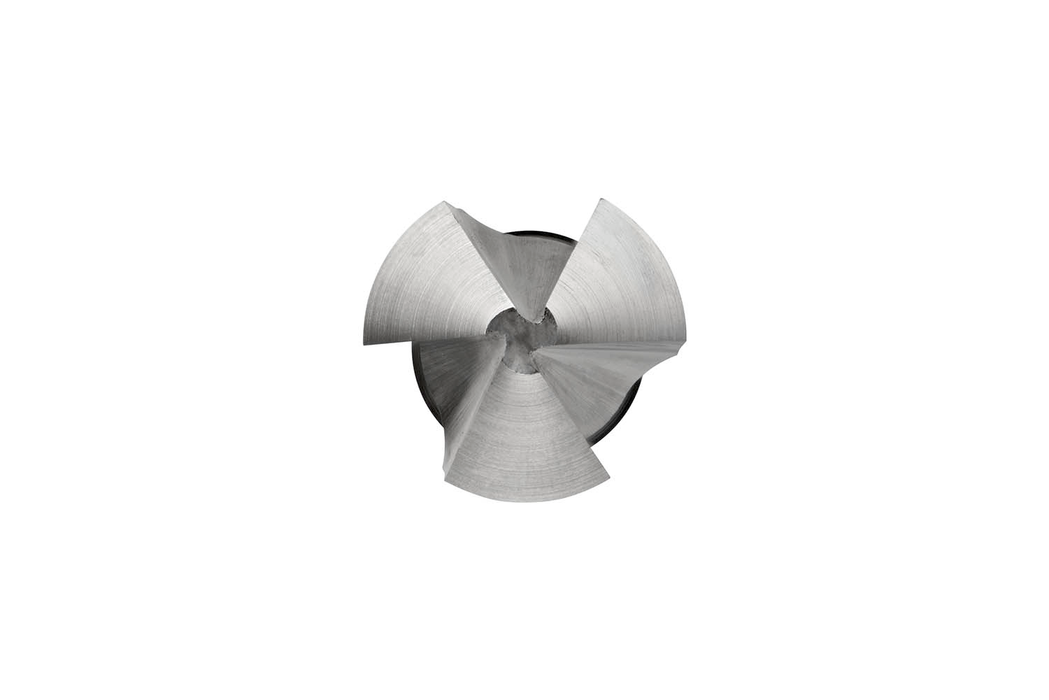

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 31.00mm with an overall length of 71mm and a head length of 18.5mm and 12mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.20mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$220.94 - $220.94
$220.94
$220.94 - $220.94
$220.94
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

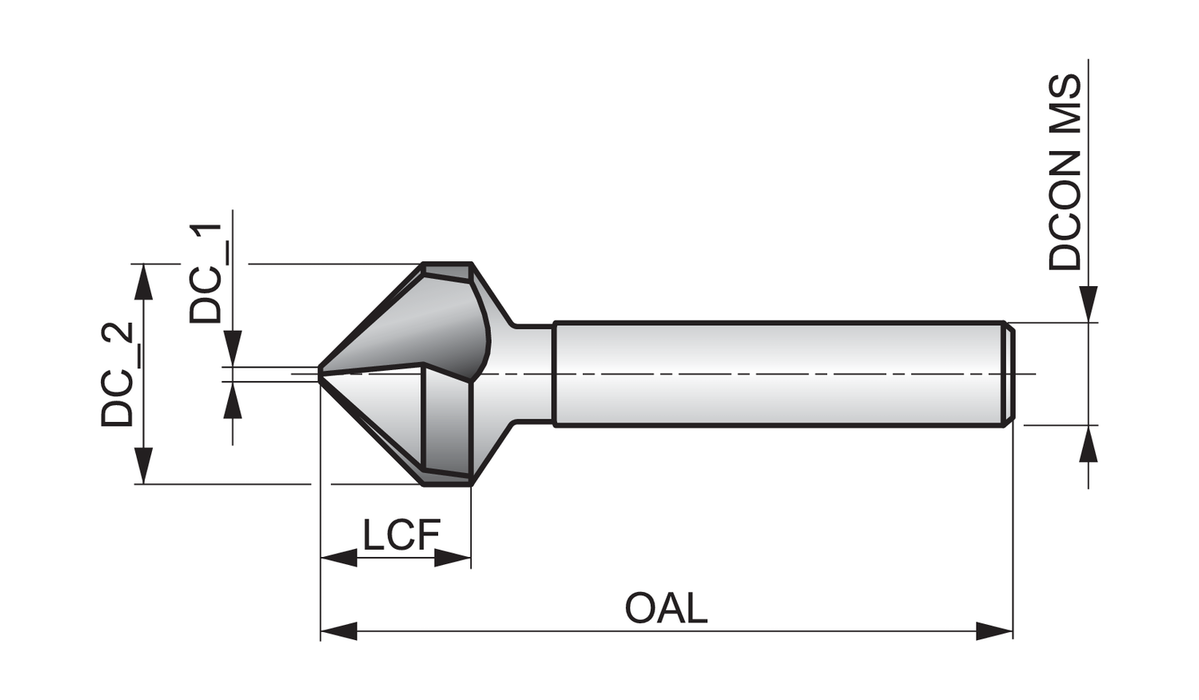

Material: HSS

Drill Point Angle - deg: 90

Overall Length (OAL): 2.7953

Connetion Diameter: 0.4724

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 108642

EAN: 7320760108642

MFG Part Number: 5973387
