G12931.5

G12931.5

SKU DOR5973411
by Dormer Pramet
Primary Use: Possible Use:

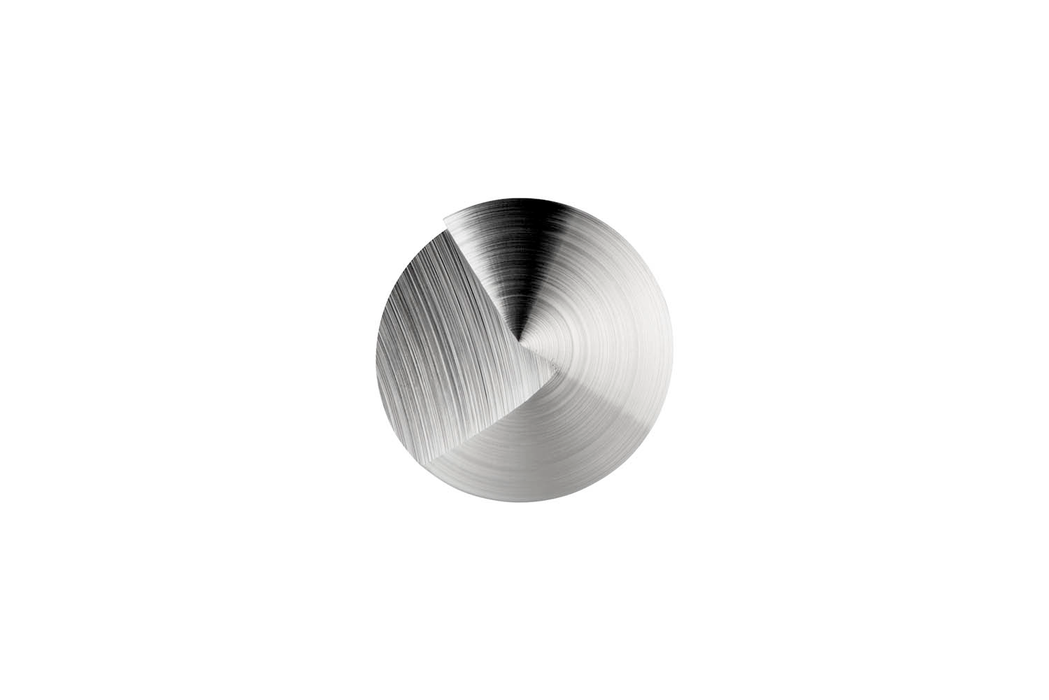

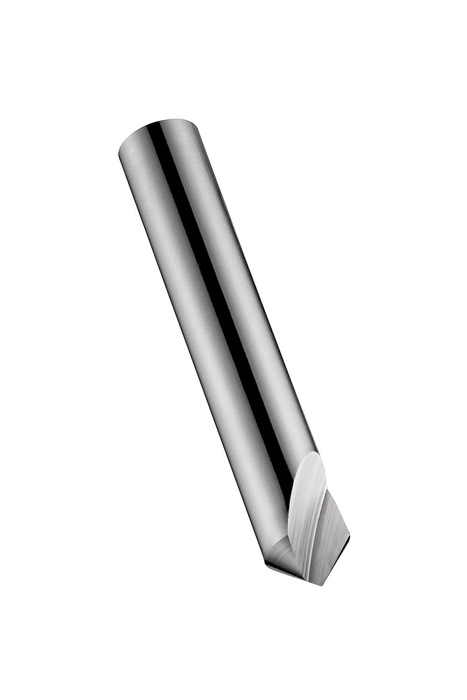

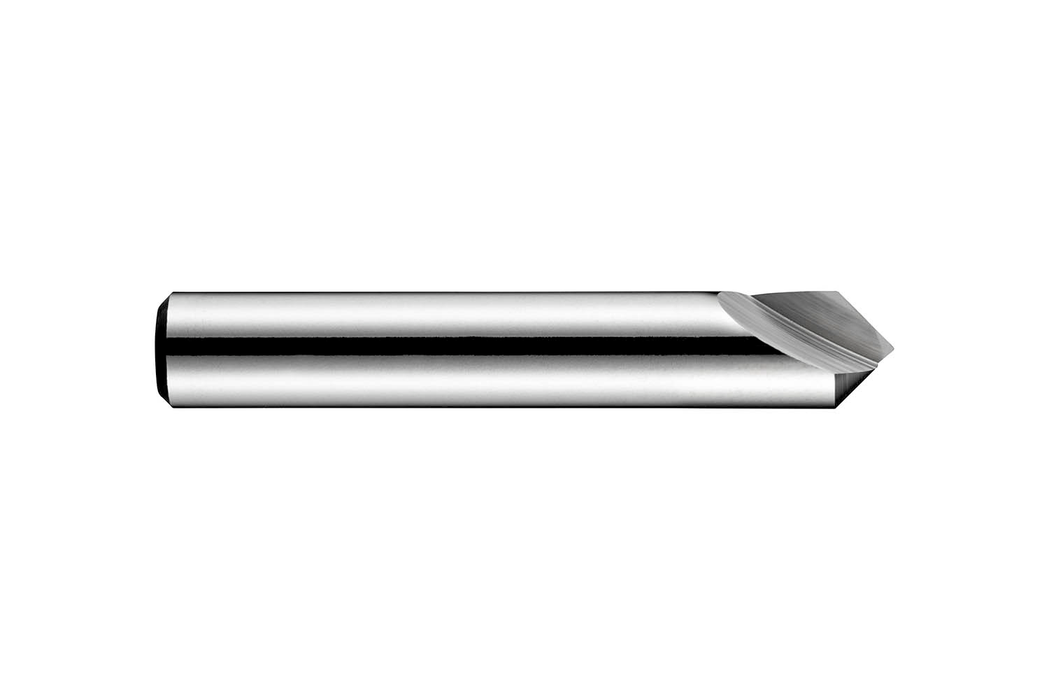

Countersink with 1-flute, 90° chamfering angle, maximum diameter 31.50mm with an overall length of 80mm and a head length of 29mm and 12mm straight shank, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$187.11 - $187.11
$187.11
$187.11 - $187.11
$187.11
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

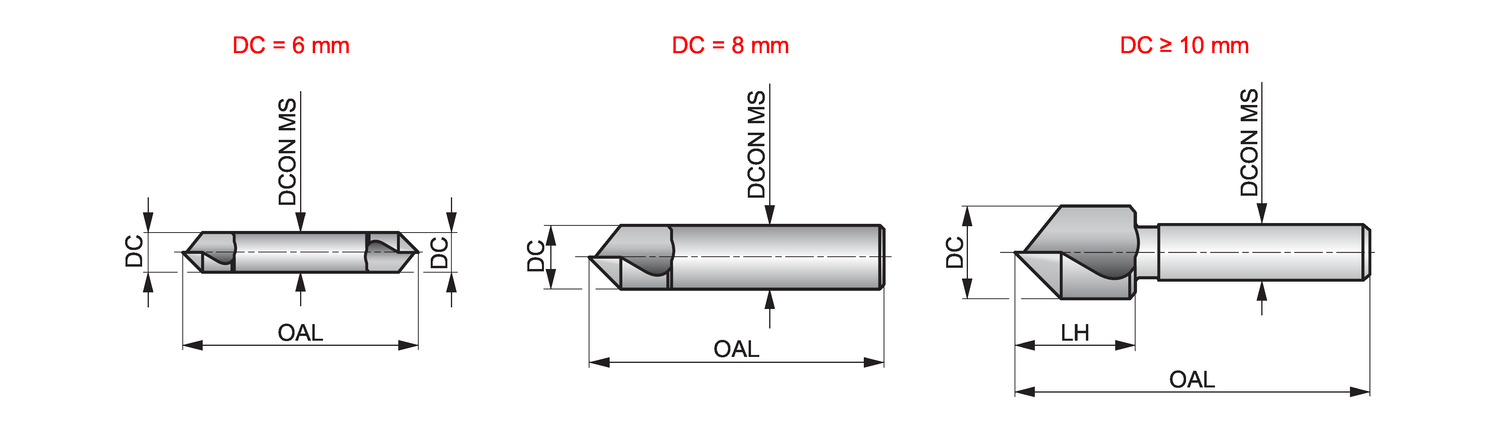

Cutting Diameter - in (DC): 1.2402

Cutting Diameter - mm (DC): 31.5

Drill Point Angle - deg: 90

Overall Length (OAL): 3.1496

Connetion Diameter: 0.4724

Tool Direction: Right

Shank: Cylindrical shank

Grade: Bright

EDP: 149263

EAN: 7320760149263

MFG Part Number: 5973411
