EX00M52

EX00M52

SKU DOR5973653
by Dormer Pramet
Primary Use:

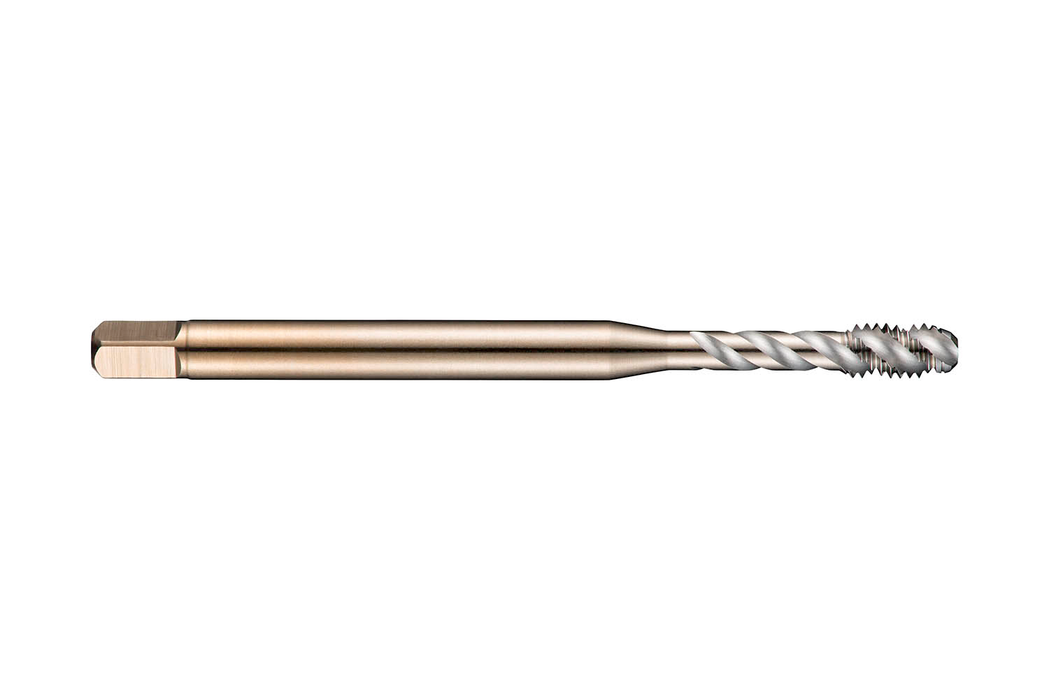

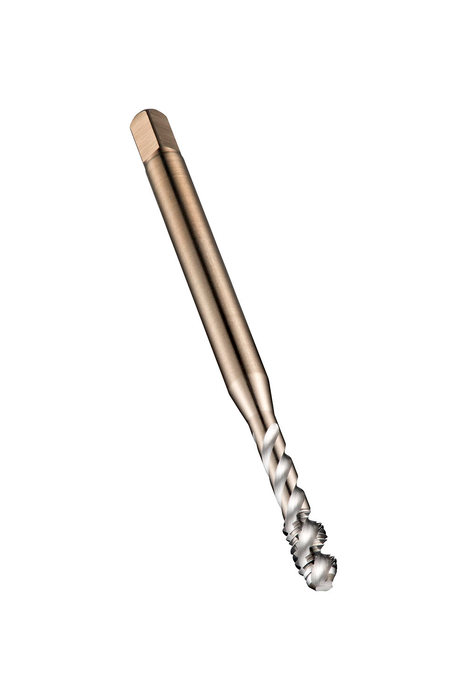

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M52 with 5.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 40.0mm shank and 32.0mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$1,352.07 - $1,352.07
$1,352.07
$1,352.07 - $1,352.07
$1,352.07
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

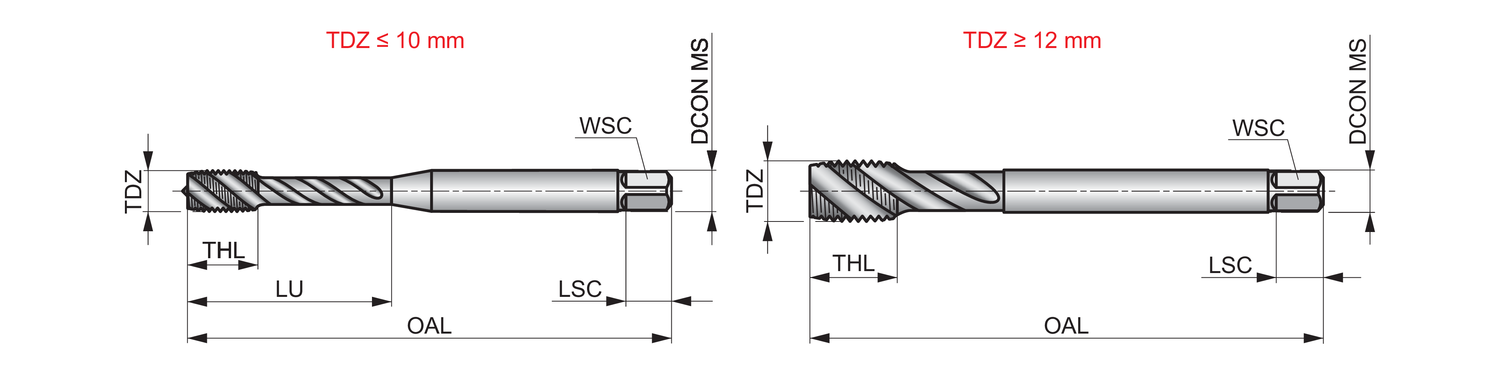

Material: HSS-E

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 9.8425

Connetion Diameter: 1.5748

Tool Direction: Right

Diameter Size: 52

Pitch - mm: 5.0

Pitch - in: 0.1969

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 136911

EAN: 7320760136911

MFG Part Number: 5973653
