EX01M30

EX01M30

SKU DOR5973706
by Dormer Pramet
Primary Use: Possible Use:

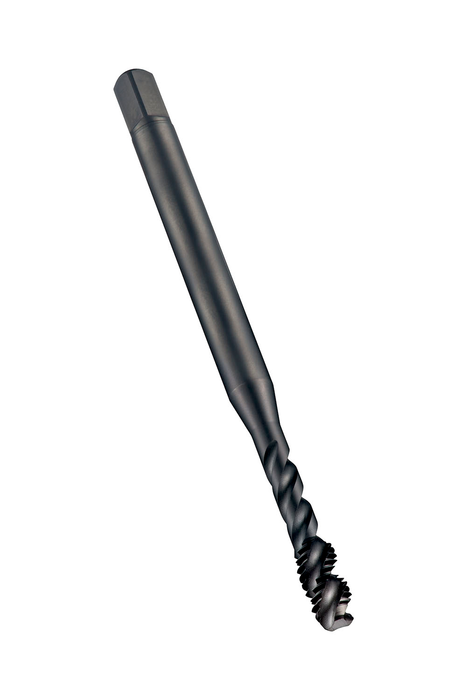

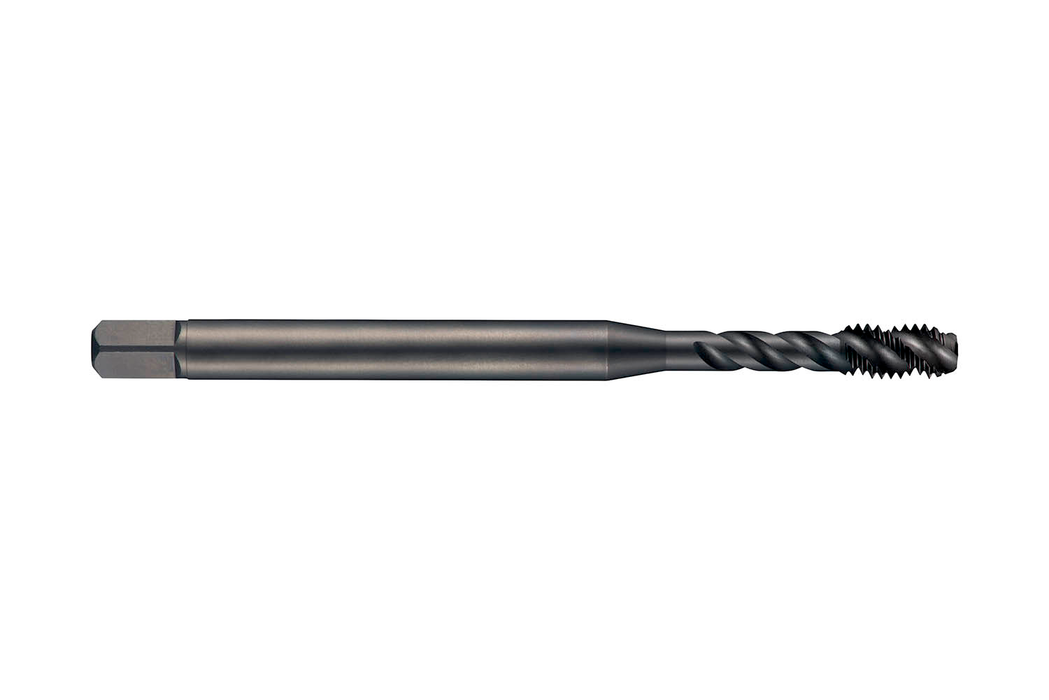

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M30 with 3.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 22.0mm shank and 18.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$308.69 - $308.69
$308.69
$308.69 - $308.69
$308.69
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 7.0866

Connetion Diameter: 0.8661

Tool Direction: Right

Diameter Size: 30

Pitch - mm: 3.5

Pitch - in: 0.1378

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Grade: Steam Tempered

EDP: 137147

EAN: 7320760137147

MFG Part Number: 5973706
