EP11M12X1.0

EP11M12X1.0

SKU DOR5973738
by Dormer Pramet
Primary Use: Possible Use:

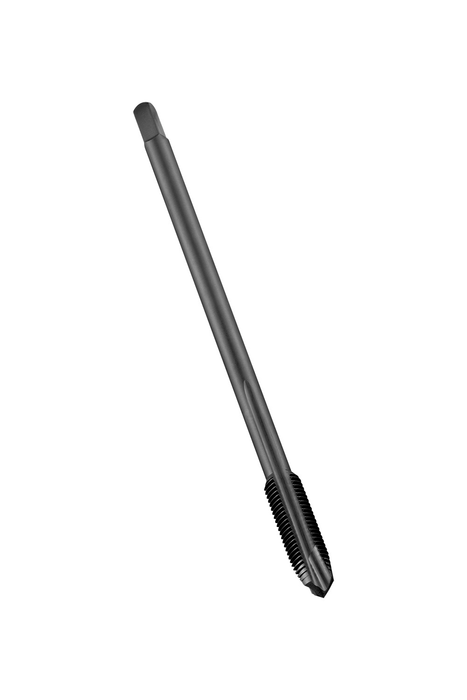

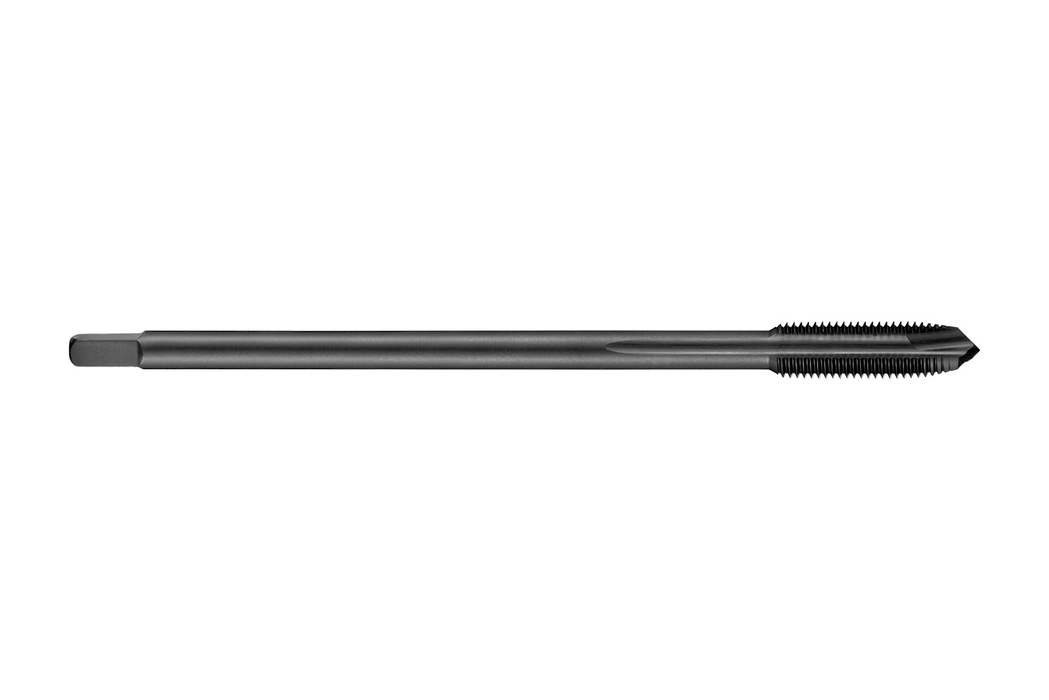

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric Fine thread M12 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 9.0mm shank and 7.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$63.61 - $63.61
$63.61
$63.61 - $63.61
$63.61
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

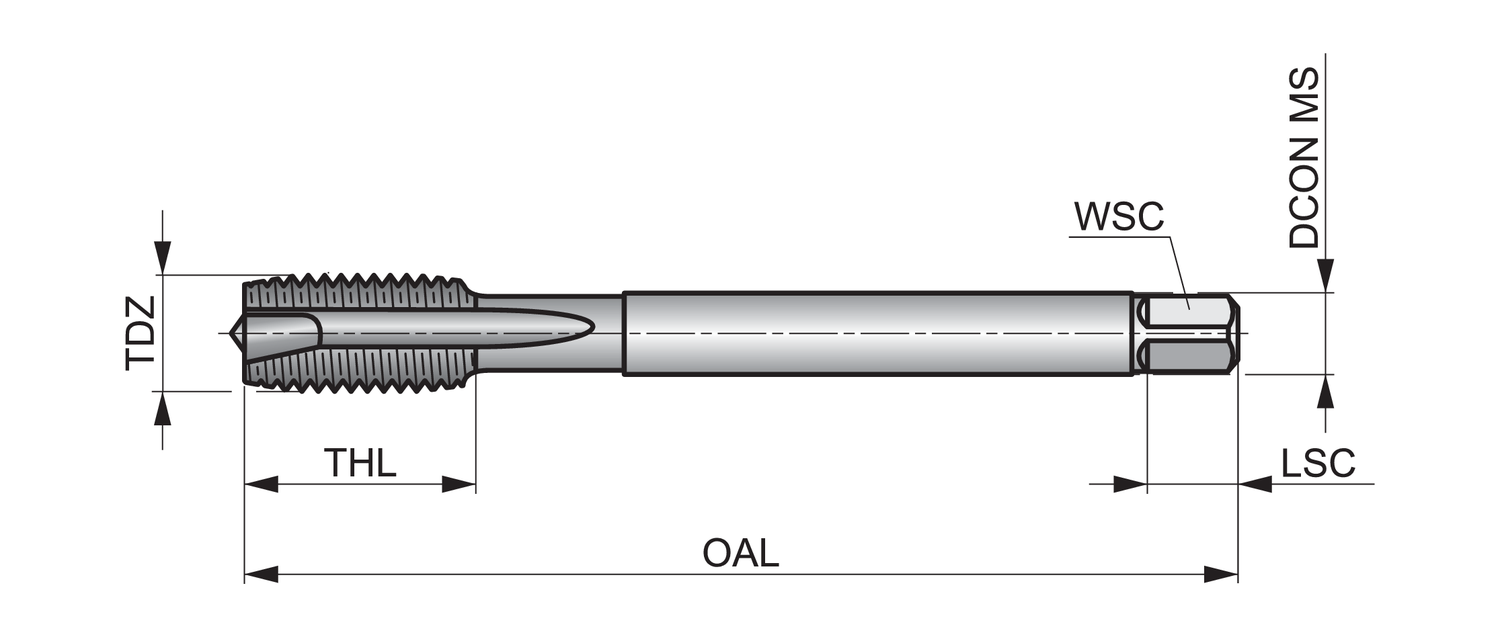

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.937

Connetion Diameter: 0.3543

Tool Direction: Right

Diameter Size: 12

Pitch - mm: 1.0

Pitch - in: 0.0394

Thread Form: MF - Metric fine

Shank: Cylindrical shank with Square

Grade: Steam Tempered

EDP: 137727

EAN: 7320760137727

MFG Part Number: 5973738
