EX411.1/2

EX411.1/2

SKU DOR5973797
by Dormer Pramet
Primary Use: Possible Use:

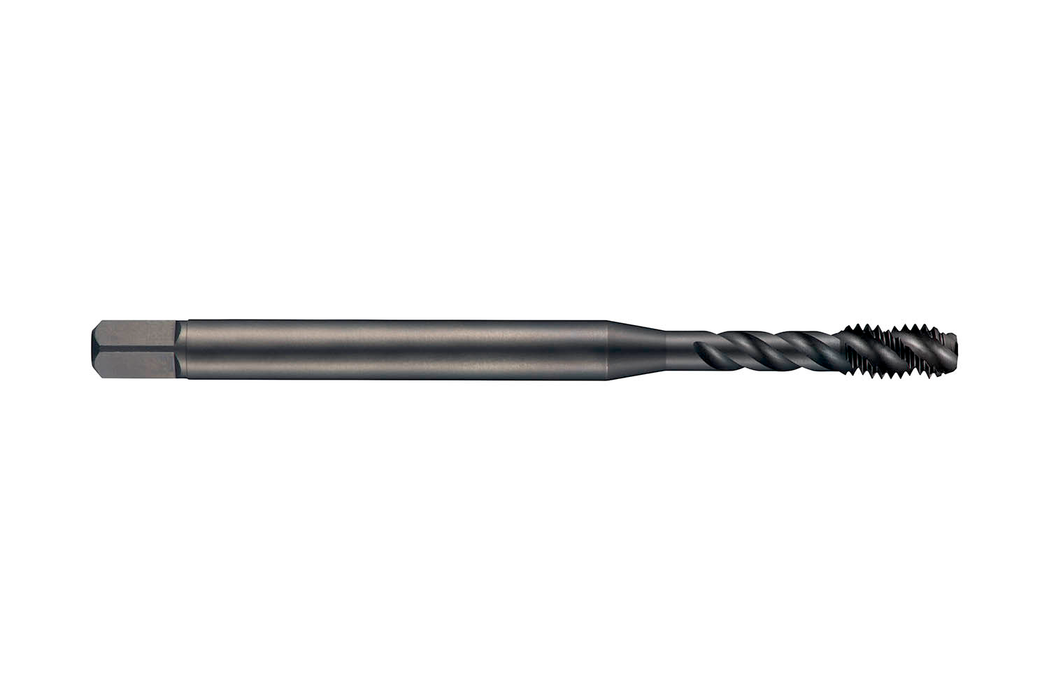

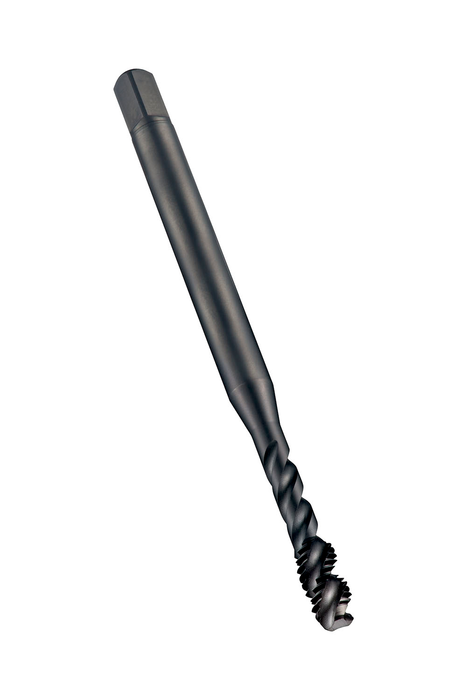

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for British Standard Pipe thread G 1.1/2" with 11 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 36.0mm shank and 29.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$1,101.79 - $1,101.79
$1,101.79
$1,101.79 - $1,101.79
$1,101.79
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

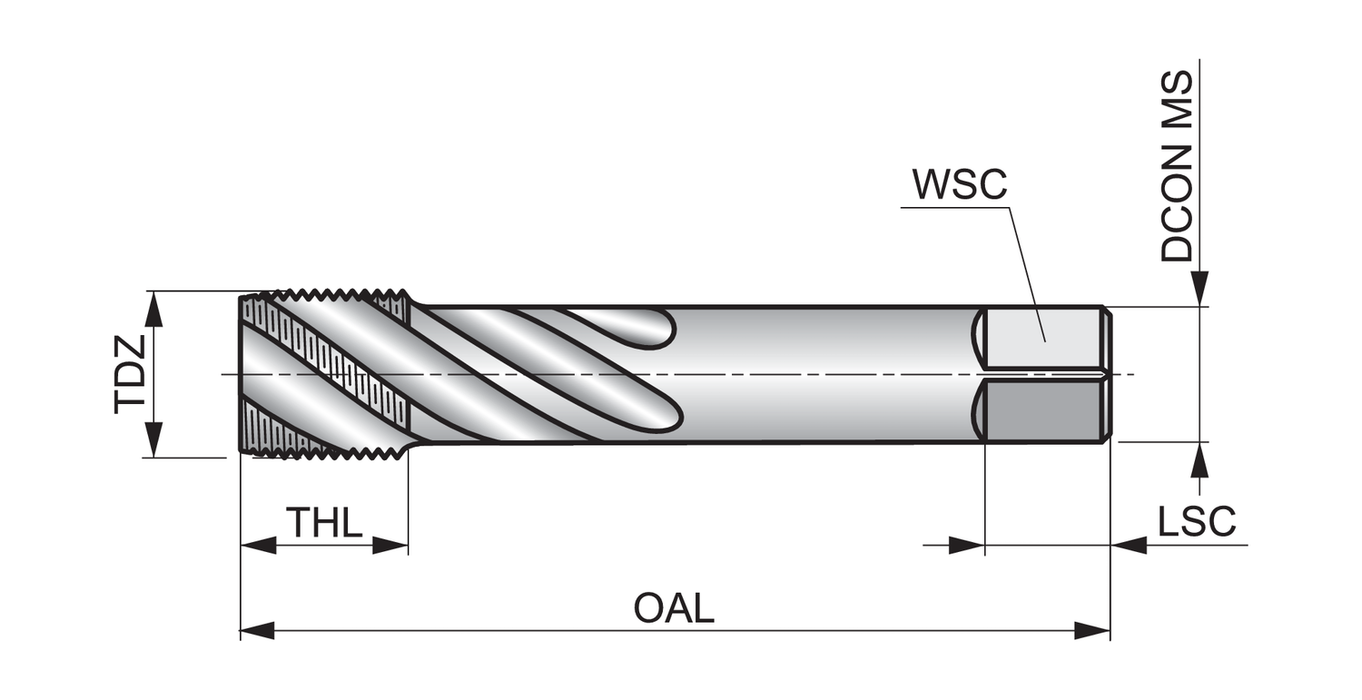

Material: HSS-E

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 7.4803

Connetion Diameter: 1.4173

Tool Direction: Right

Diameter Size: 1.1/2

Thread Diameter - in: 1.882

Thread Diameter - mm: 47.803

TPI: 11.0

Thread Form: G - British standard pipe fastening - G series

Shank: Cylindrical shank with Square

Grade: Steam Tempered

EDP: 168752

EAN: 7320760168752

MFG Part Number: 5973797
