E007M5

E007M5

SKU DOR5973805
by Dormer Pramet
Primary Use:

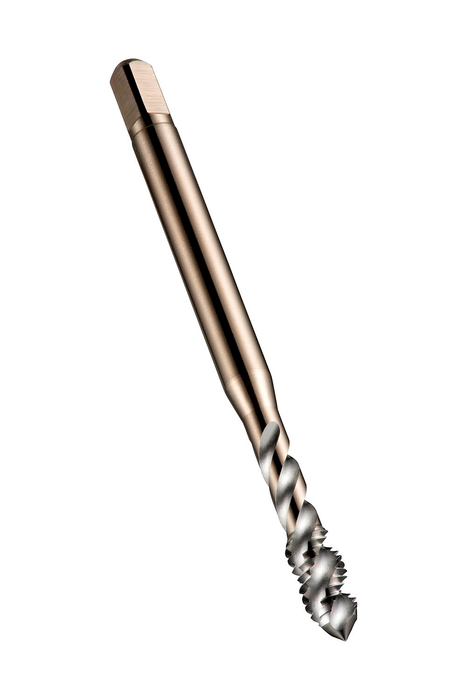

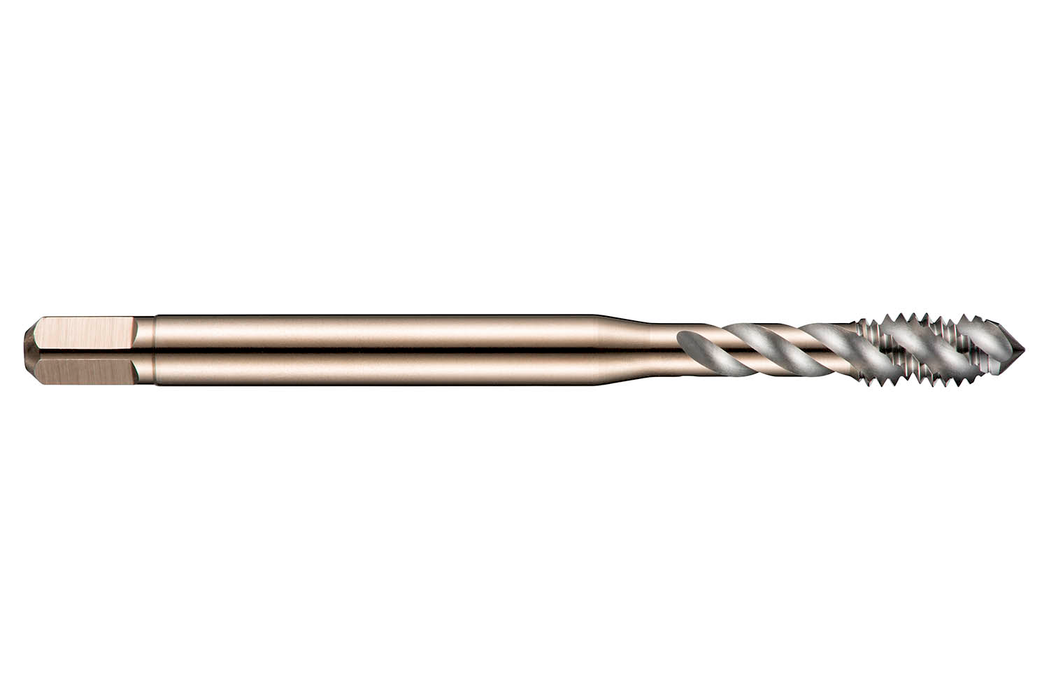

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to ANSI standard with 0.1940" shank and 0.1520" square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$31.37 - $31.37
$31.37
$31.37 - $31.37
$31.37
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

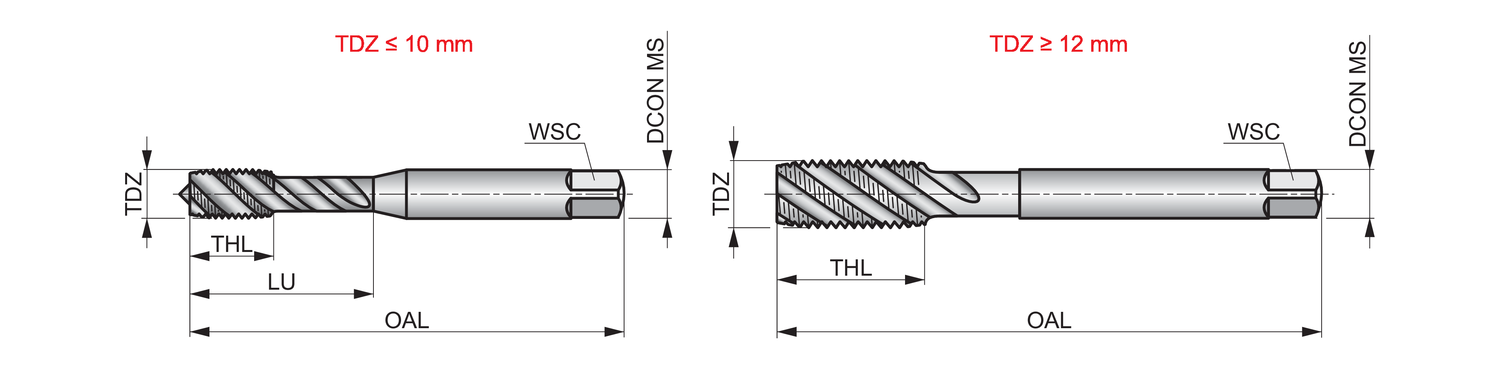

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.375

Connetion Diameter: 0.194

Tool Direction: Right

Diameter Size: 5

Pitch - mm: 0.8

Pitch - in: 0.0315

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 0.8434

Grade: Bright

EDP: 580615

EAN: 7320760580615

MFG Part Number: 5973805
