EX411/8

EX411/8

SKU DOR5973910
by Dormer Pramet
Primary Use: Possible Use:

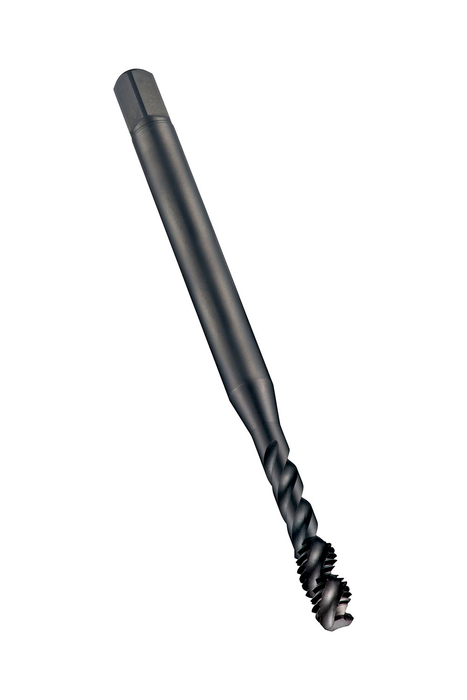

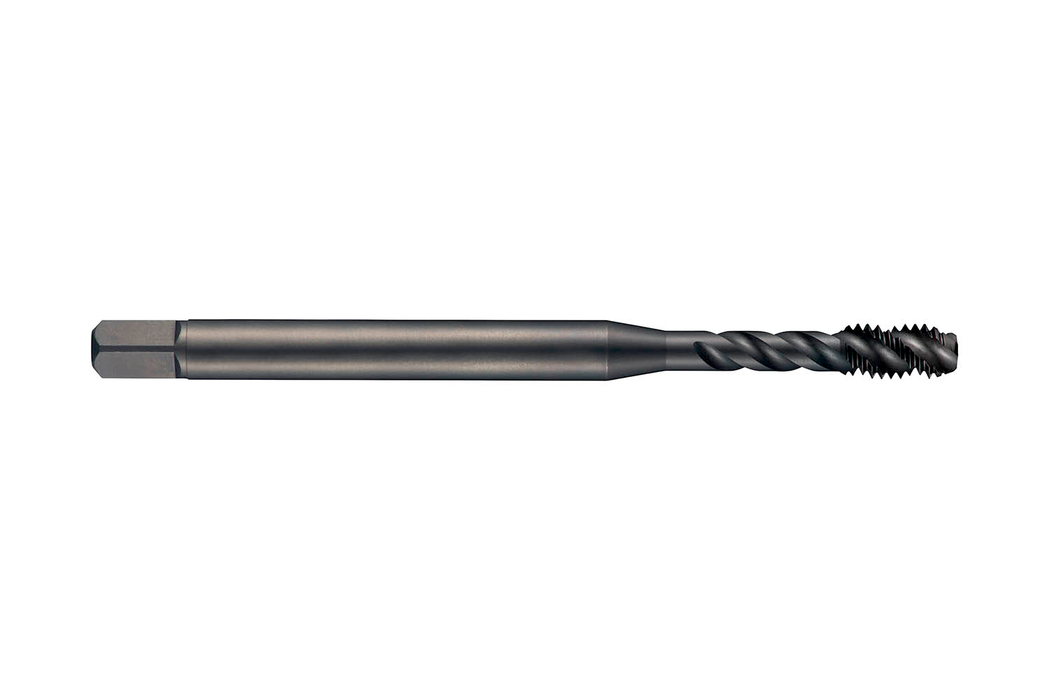

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for British Standard Pipe thread G 1/8" with 28 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$55.80 - $55.80
$55.80
$55.80 - $55.80
$55.80
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

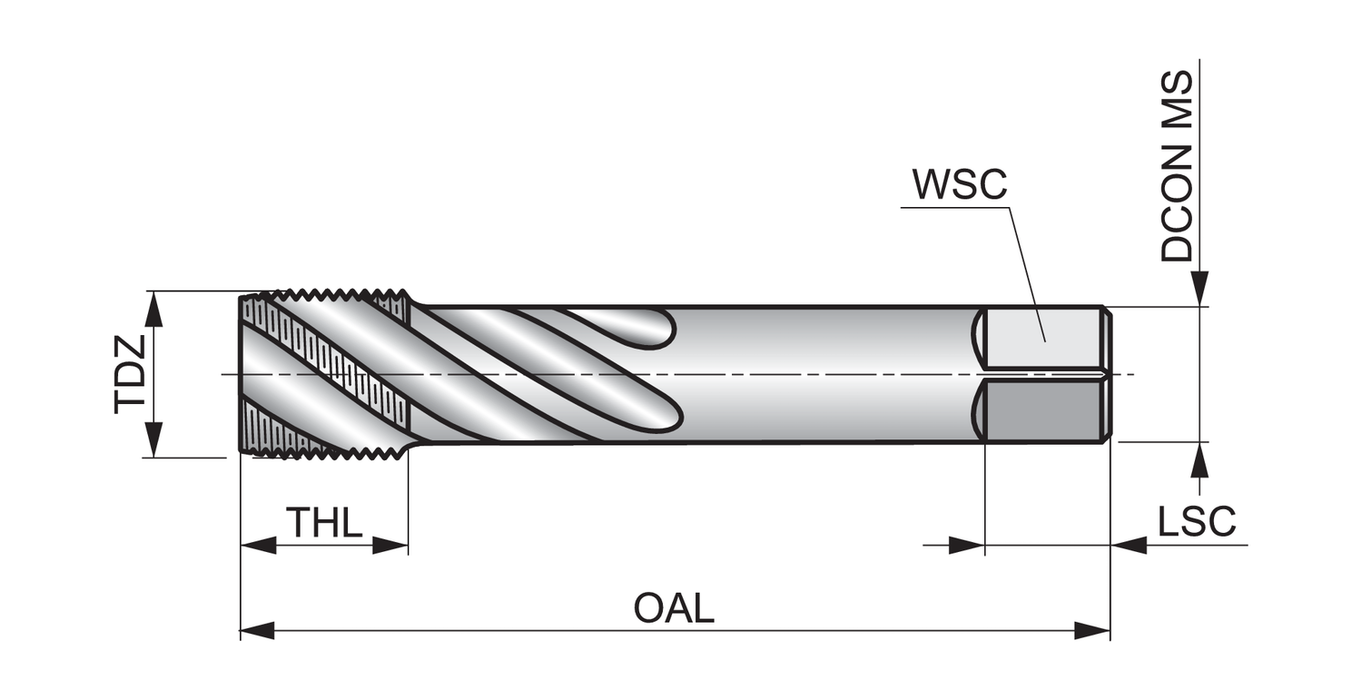

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.5433

Connetion Diameter: 0.2756

Tool Direction: Right

Diameter Size: 1/8

Thread Diameter - in: 0.383

Thread Diameter - mm: 9.728

TPI: 28.0

Thread Form: G - British standard pipe fastening - G series

Shank: Cylindrical shank with Square

Grade: Steam Tempered

EDP: 168653

EAN: 7320760168653

MFG Part Number: 5973910
