E0411/2

E0411/2

SKU DOR5973920
by Dormer Pramet
Primary Use: Possible Use:

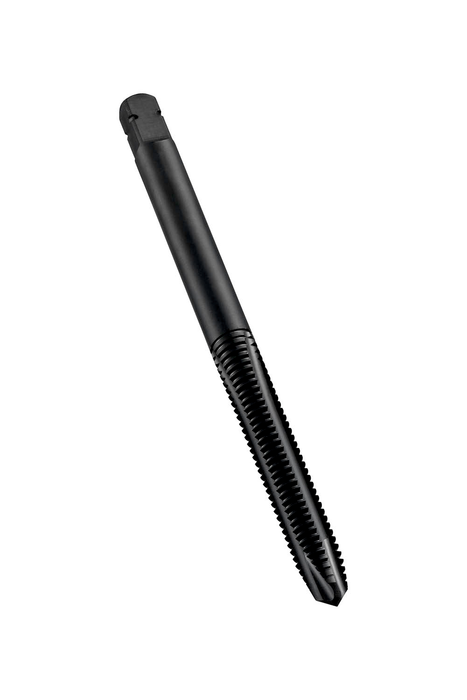

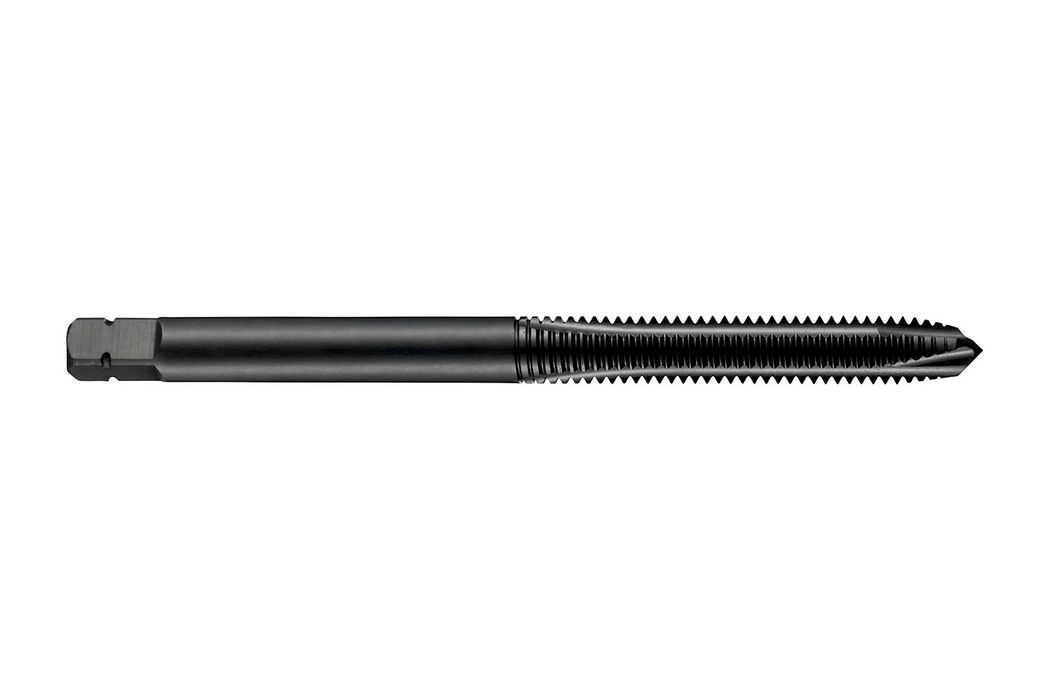

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for British Standard Pipe thread G 1/2" with 14 TPI and Normal class of fit, dimensions according to DORMER-ISO standard with 16.0mm shank and 12.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$134.44 - $134.44
$134.44
$134.44 - $134.44
$134.44
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

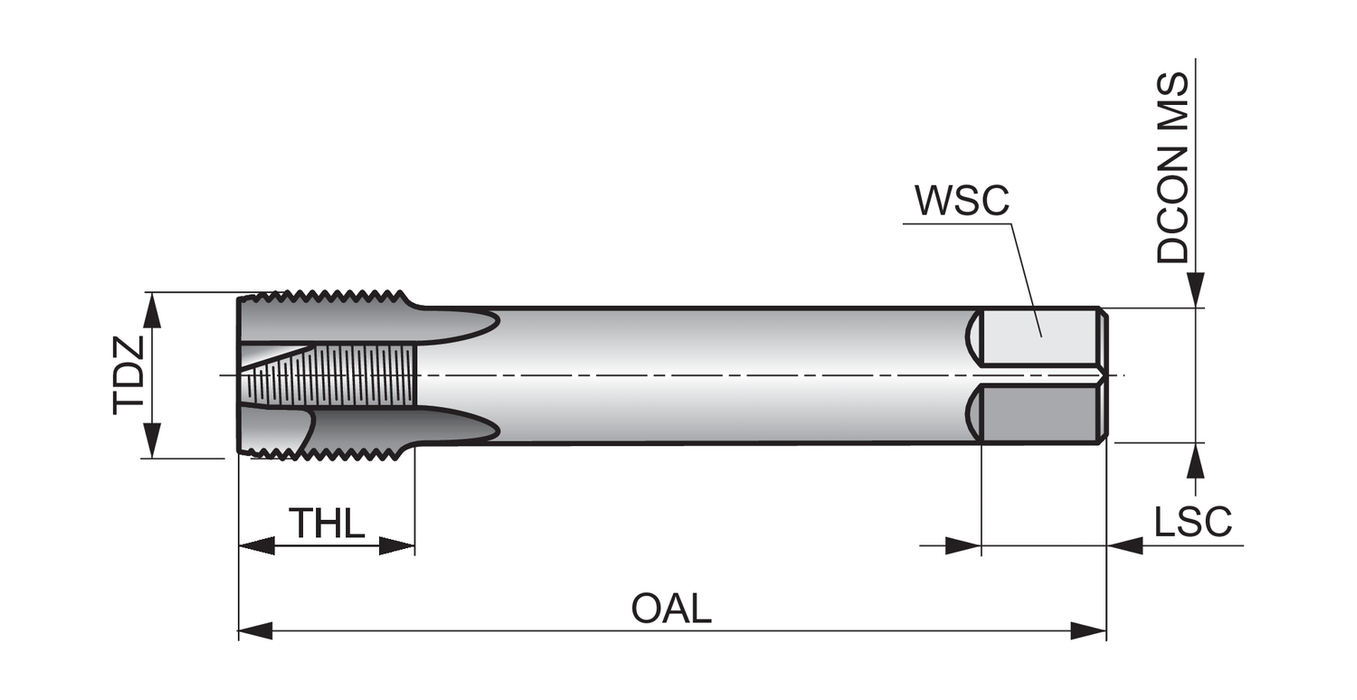

Overall Length (OAL): 4.9213

Connetion Diameter: 0.6299

Tool Direction: Right

Diameter Size: 1/2

Thread Diameter - in: 0.825

Thread Diameter - mm: 20.955

TPI: 14.0

Thread Form: G - British standard pipe fastening - G series

Shank: Cylindrical shank with Square

Grade: Steam Tempered

EDP: 569849

EAN: 7320760569849

MFG Part Number: 5973920
