EP401/4

EP401/4

SKU DOR5973939
by Dormer Pramet
Primary Use:

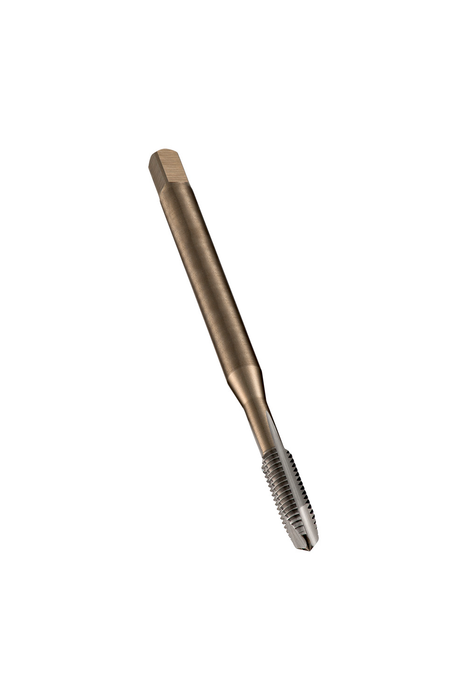

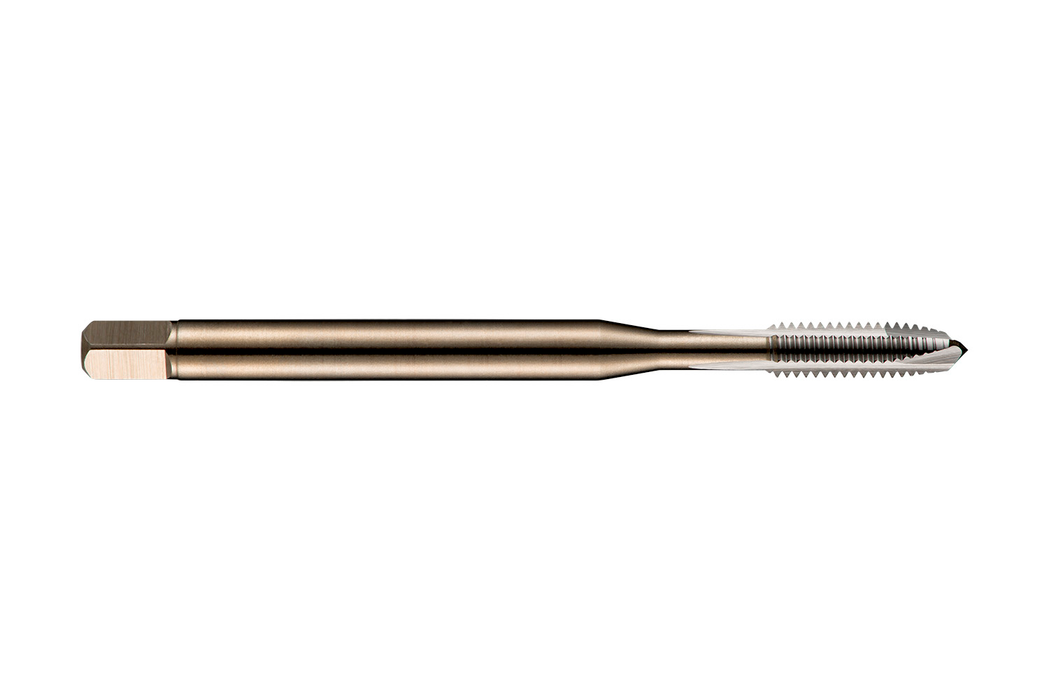

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for British Standard Pipe thread G 1/4" with 19 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 11.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$84.47 - $84.47
$84.47
$84.47 - $84.47
$84.47
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

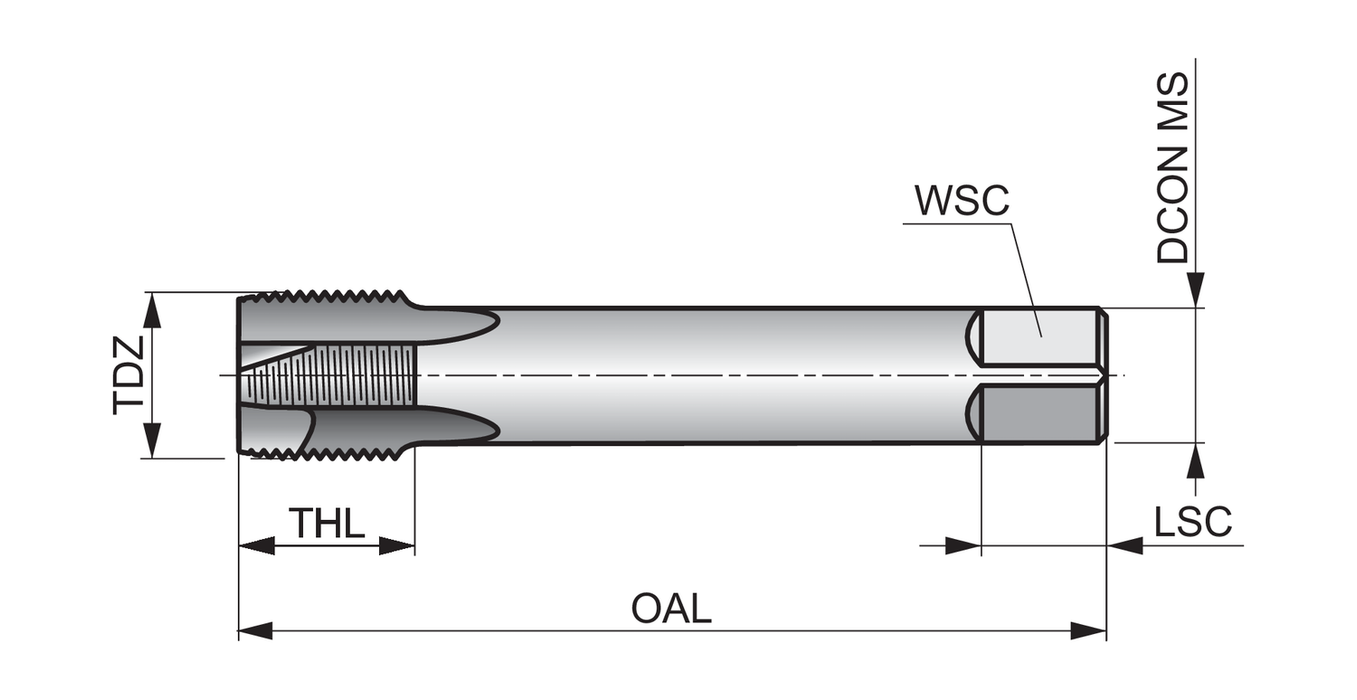

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.937

Connetion Diameter: 0.4331

Tool Direction: Right

Diameter Size: 1/4

Thread Diameter - in: 0.518

Thread Diameter - mm: 13.157

TPI: 19.0

Thread Form: G - British standard pipe fastening - G series

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 138595

EAN: 7320760138595

MFG Part Number: 5973939
