E0351/4

E0351/4

SKU DOR5973974
by Dormer Pramet
Primary Use:

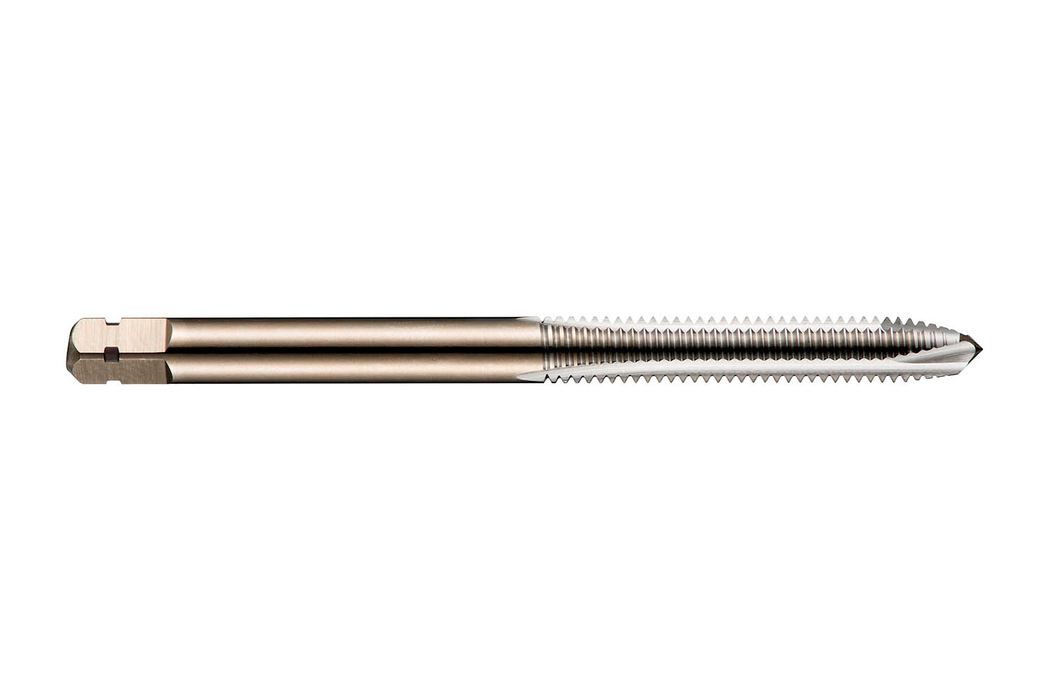

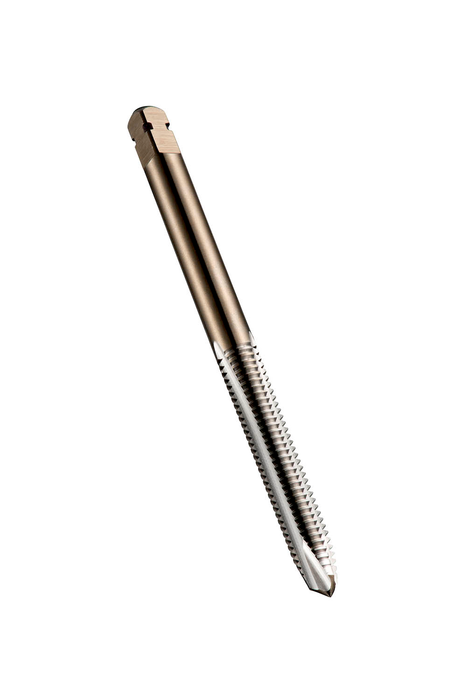

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 1/4" with 28 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.2550" shank and 0.1910" square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$13.17 - $13.17
$13.17
$13.17 - $13.17
$13.17
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.5

Connetion Diameter: 0.255

Tool Direction: Right

Diameter Size: 1/4

TPI: 28.0

Thread Form: UNF - Unified Fine

Shank: Cylindrical shank with Square

Usable Length: 1.0073

Grade: Bright

EDP: 581995

EAN: 7320760581995

MFG Part Number: 5973974
