E02810-24

E02810-24

SKU DOR5974023
by Dormer Pramet
Primary Use: Possible Use:

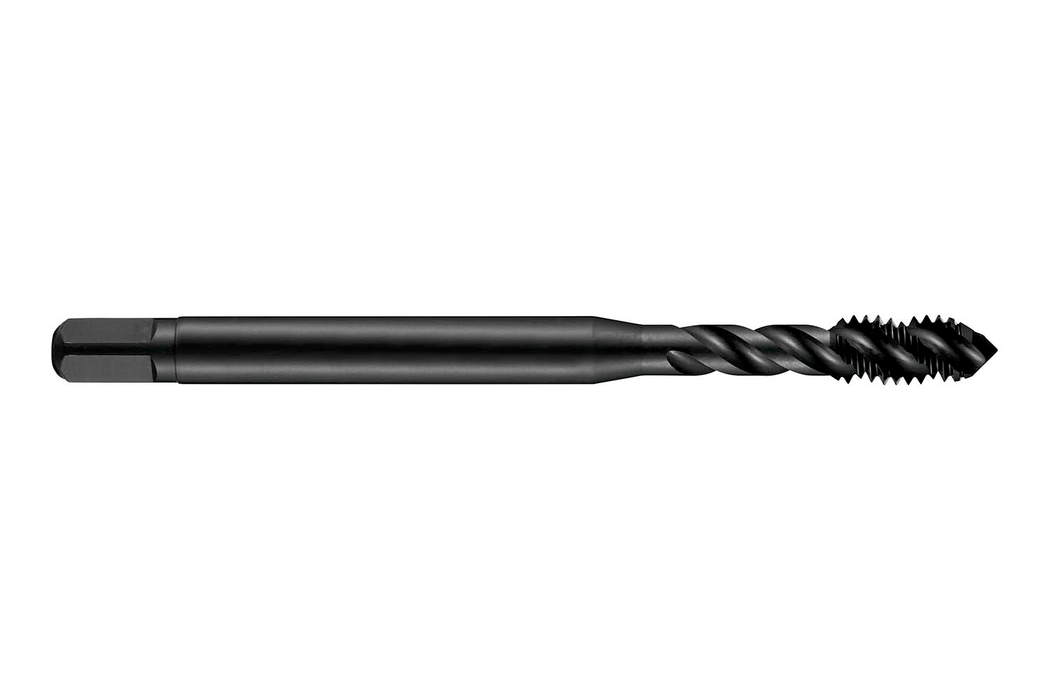

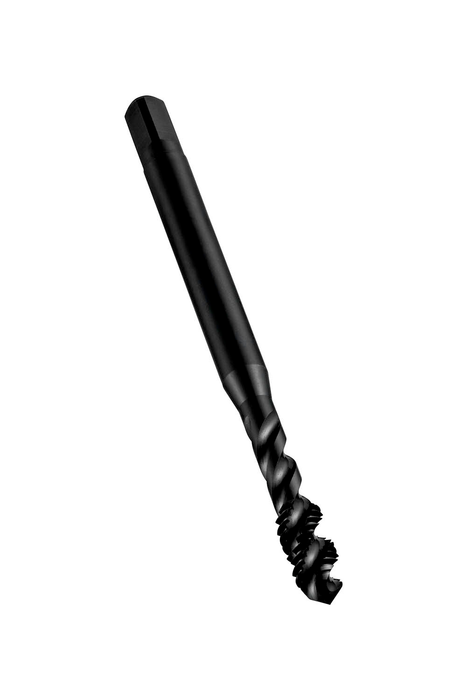

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 10 with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.1940" shank and 0.1520" square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$24.90 - $24.90
$24.90
$24.90 - $24.90
$24.90
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

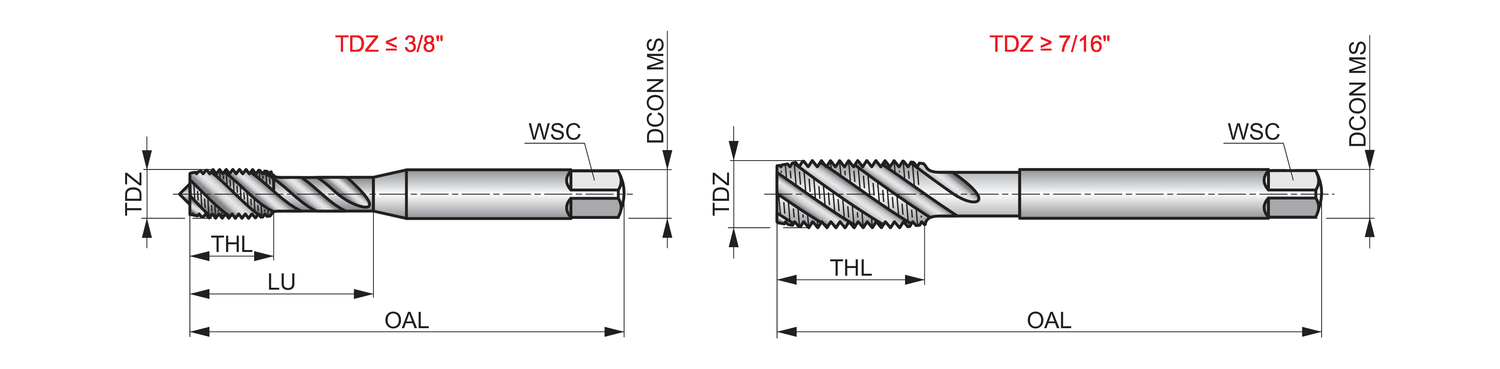

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.375

Connetion Diameter: 0.194

Tool Direction: Right

Diameter Size: 10

TPI: 24.0

Thread Form: UNC - Unified Coarse

Shank: Cylindrical shank with Square

Usable Length: 0.8434

Grade: Steam Tempered

EDP: 581681

EAN: 7320760581681

MFG Part Number: 5974023
