E02512-24

E02512-24

SKU DOR5974034
by Dormer Pramet
Primary Use:

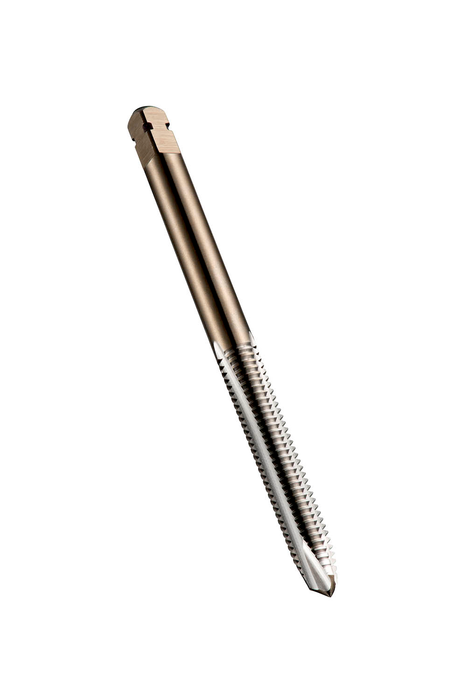

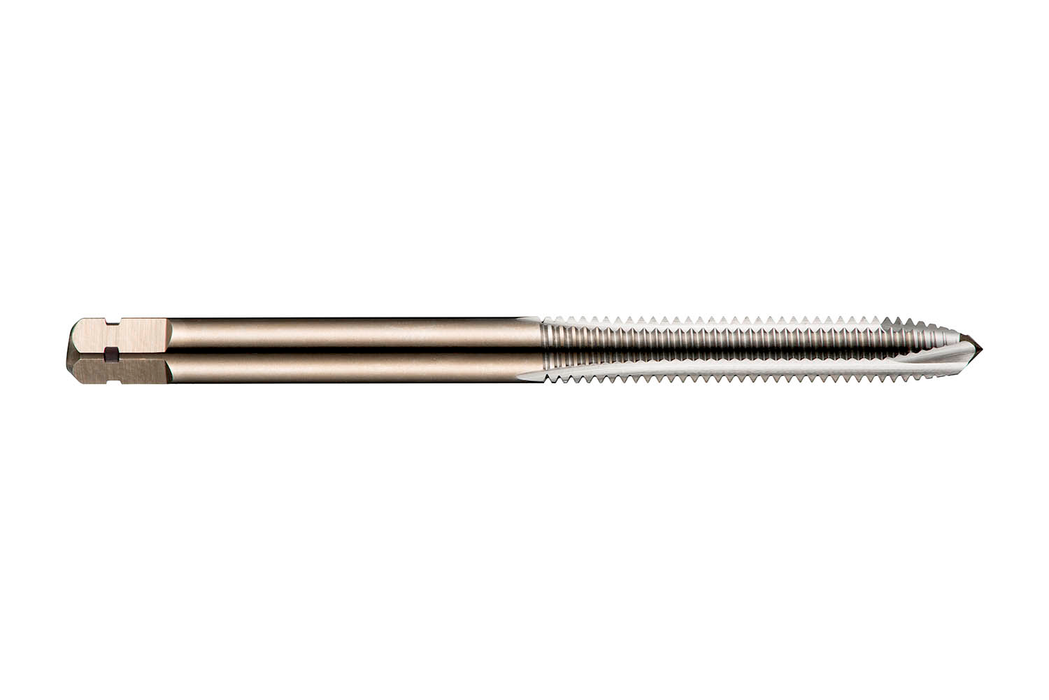

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 12 with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.2200" shank and 0.1650" square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$14.89 - $14.89
$14.89
$14.89 - $14.89
$14.89
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.375

Connetion Diameter: 0.22

Tool Direction: Right

Diameter Size: 12

TPI: 24.0

Thread Form: UNC - Unified Coarse

Shank: Cylindrical shank with Square

Usable Length: 0.8848

Grade: Bright

EDP: 581100

EAN: 7320760581100

MFG Part Number: 5974034
