E0284-40

E0284-40

SKU DOR5974035
by Dormer Pramet
Primary Use: Possible Use:

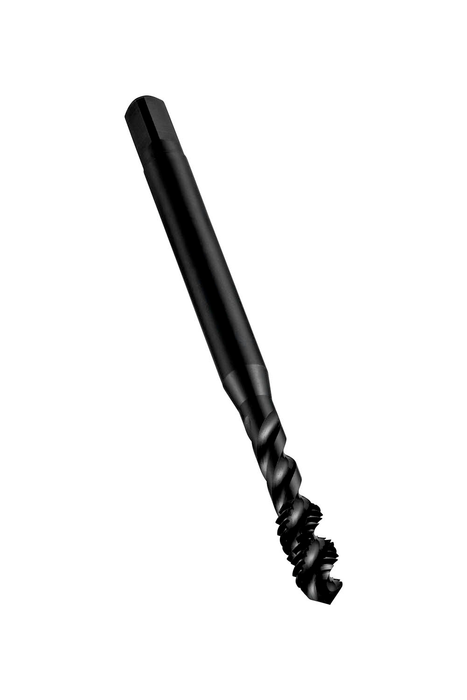

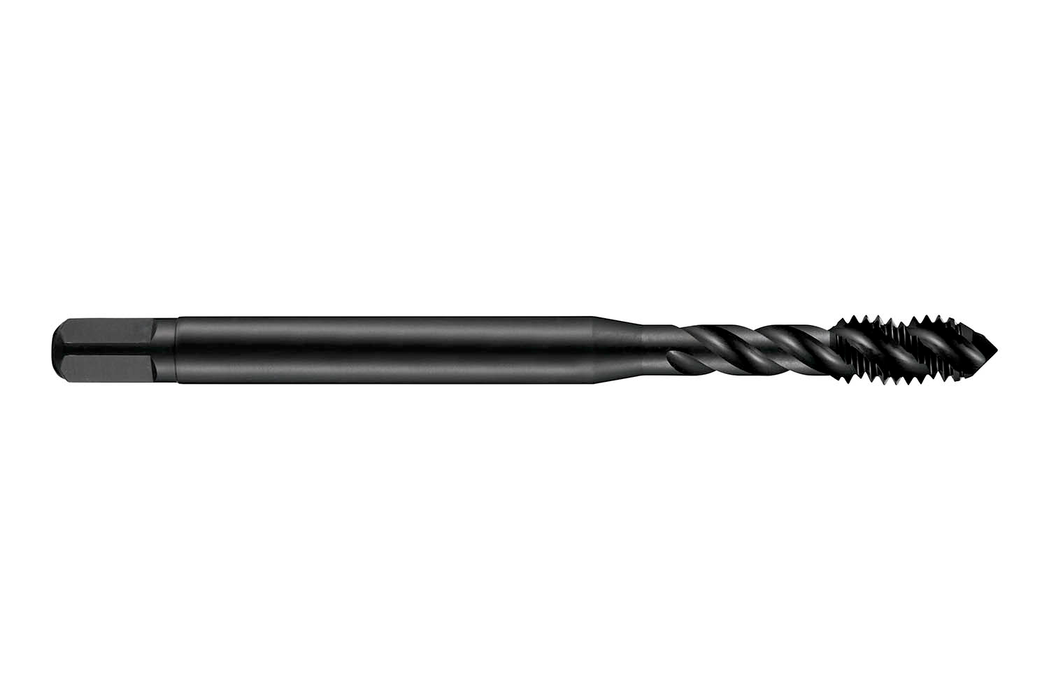

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 4 with 40 TPI and 3B class of fit with H2 pitch diameter limits, dimensions according to ANSI standard with 0.1410" shank and 0.1100" square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$26.54 - $26.54
$26.54
$26.54 - $26.54
$26.54
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

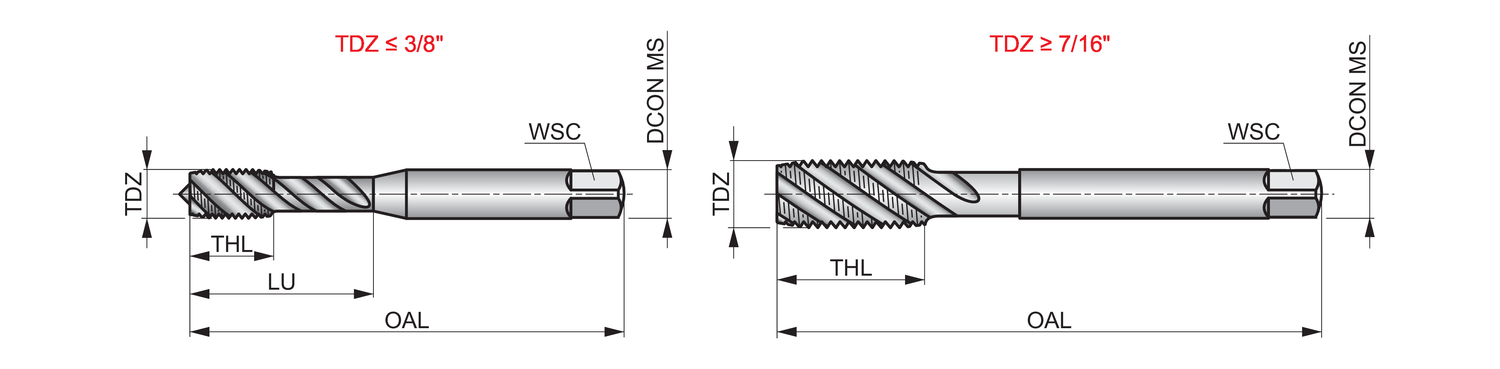

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 1.875

Connetion Diameter: 0.141

Tool Direction: Right

Diameter Size: 4

TPI: 40.0

Thread Form: UNC - Unified Coarse

Shank: Cylindrical shank with Square

Usable Length: 0.6091

Grade: Steam Tempered

EDP: 581643

EAN: 7320760581643

MFG Part Number: 5974035
