EX308-36

EX308-36

SKU DOR5974125
by Dormer Pramet
Primary Use:

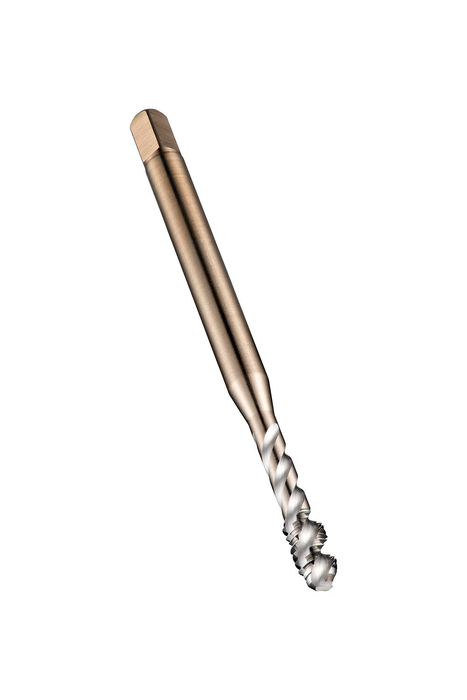

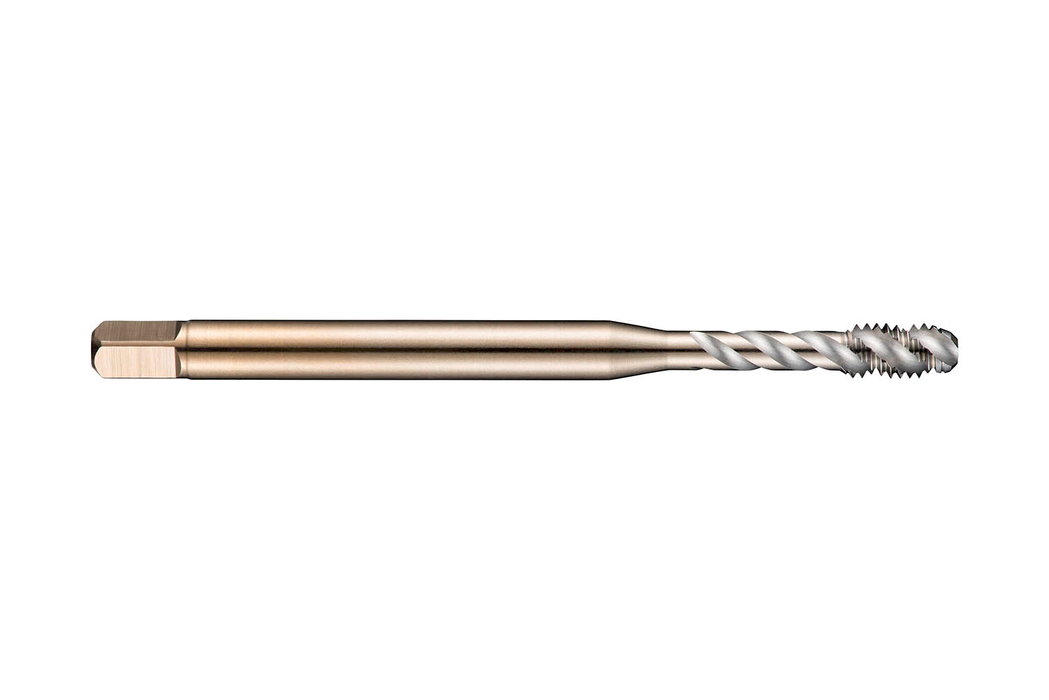

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 8 with 36 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 4.5mm shank and 3.4mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$56.84 - $56.84
$56.84
$56.84 - $56.84
$56.84
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

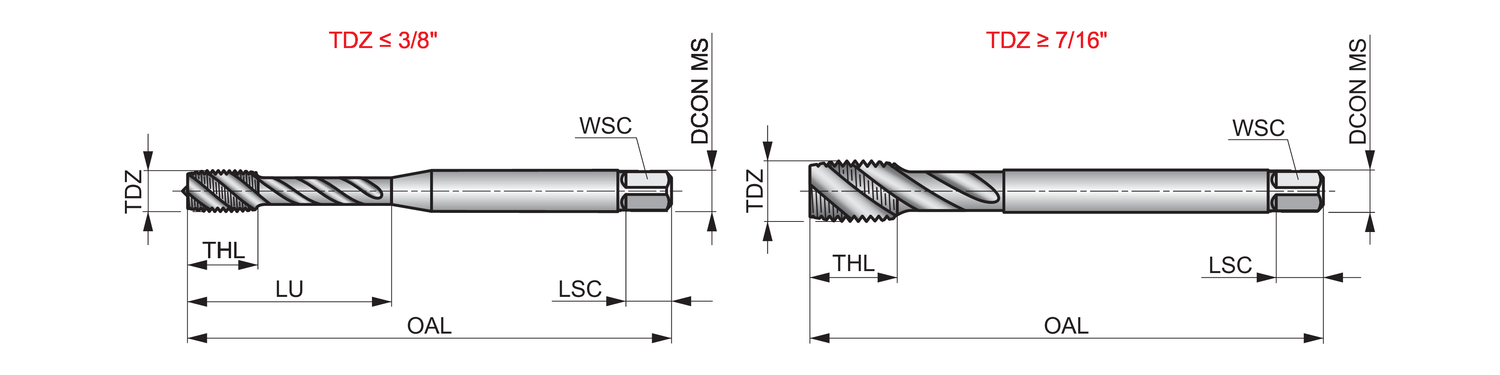

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.4803

Connetion Diameter: 0.1772

Tool Direction: Right

Diameter Size: 8

Thread Diameter - in: 0.164

Thread Diameter - mm: 4.166

TPI: 36.0

Thread Form: UNF - Unified Fine

Shank: Cylindrical shank with Square

Usable Length: 0.8268

Grade: Bright

EDP: 168325

EAN: 7320760168325

MFG Part Number: 5974125
