EX3110-32

EX3110-32

SKU DOR5974151
by Dormer Pramet
Primary Use: Possible Use:

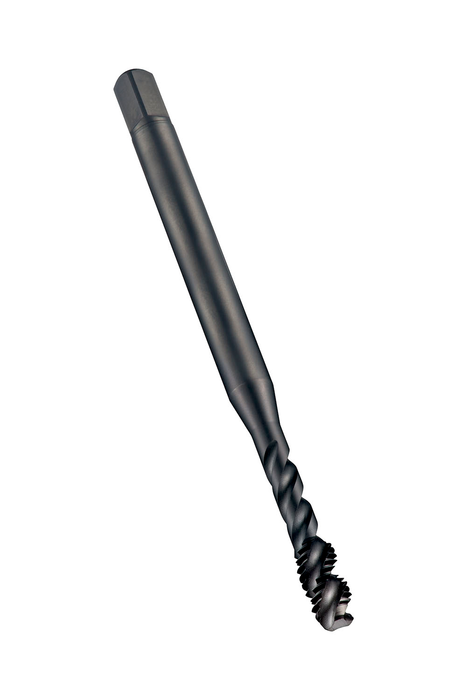

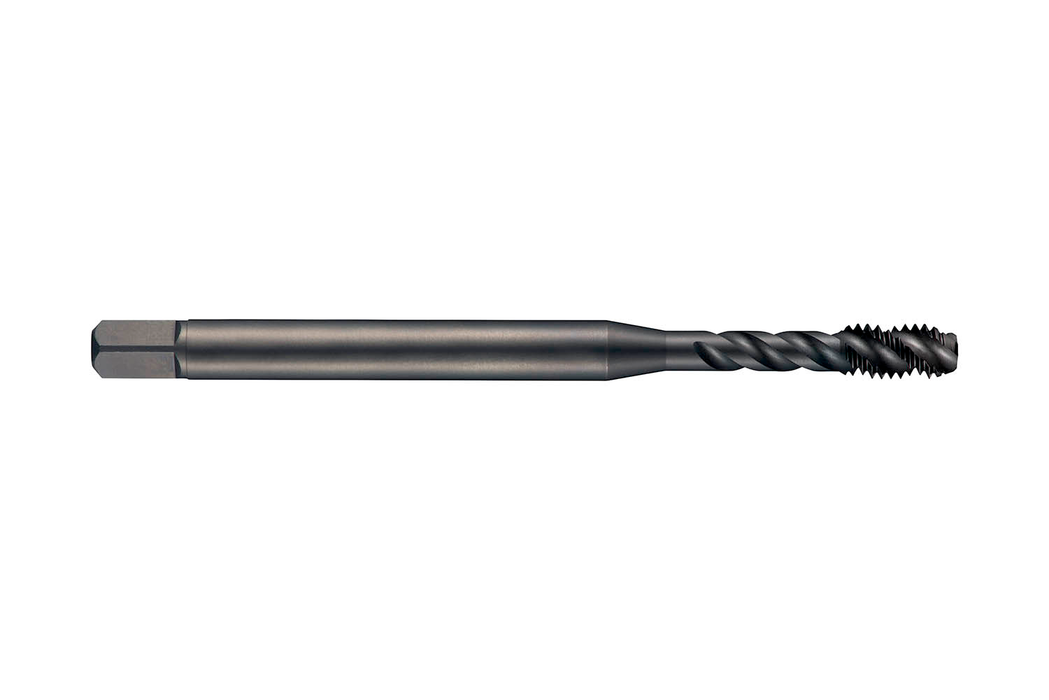

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 10 with 32 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in alloy steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$60.49 - $60.49
$60.49
$60.49 - $60.49
$60.49
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.7559

Connetion Diameter: 0.2362

Tool Direction: Right

Diameter Size: 10

Thread Diameter - in: 0.19

Thread Diameter - mm: 4.826

TPI: 32.0

Thread Form: UNF - Unified Fine

Shank: Cylindrical shank with Square

Usable Length: 0.9843

Grade: Steam Tempered

EDP: 168448

EAN: 7320760168448

MFG Part Number: 5974151
