E0273/8

E0273/8

SKU DOR5974168
by Dormer Pramet
Primary Use:

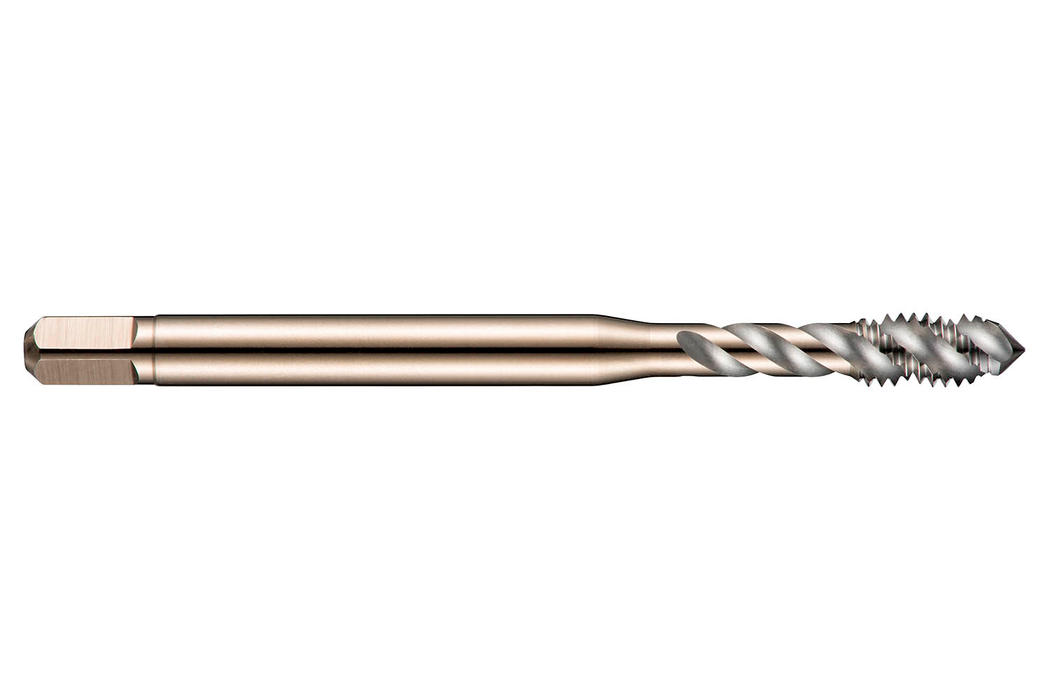

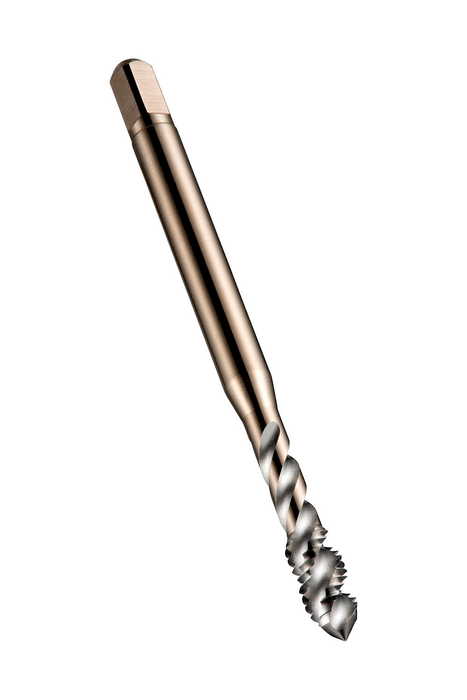

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 3/8" with 16 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.3810" shank and 0.2860" square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$40.24 - $40.24
$40.24
$40.24 - $40.24
$40.24
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

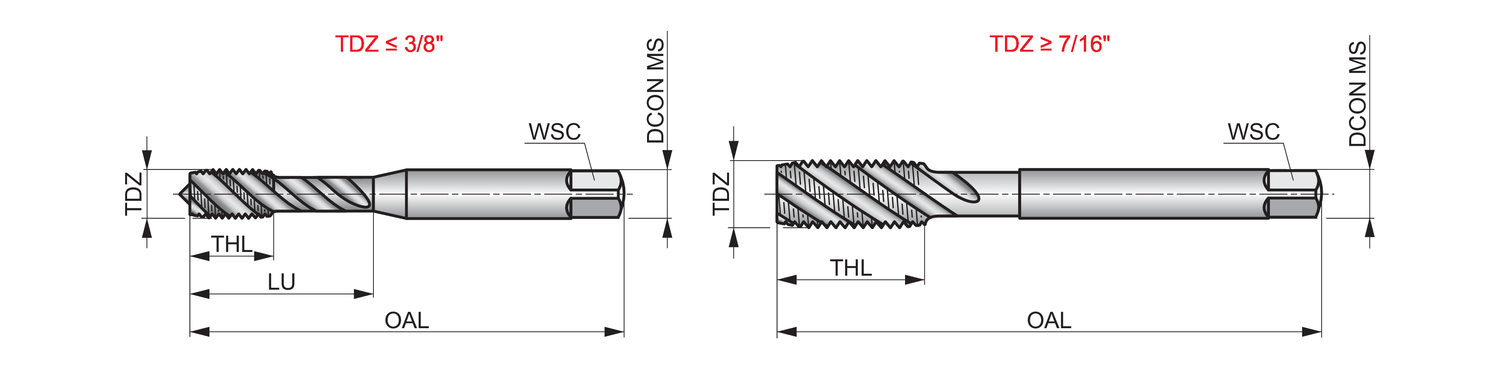

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.9375

Connetion Diameter: 0.381

Tool Direction: Right

Diameter Size: 3/8

TPI: 16.0

Thread Form: UNC - Unified Coarse

Shank: Cylindrical shank with Square

Usable Length: 1.4415

Grade: Bright

EDP: 581568

EAN: 7320760581568

MFG Part Number: 5974168
