EX317/16

EX317/16

SKU DOR5974176
by Dormer Pramet
Primary Use: Possible Use:

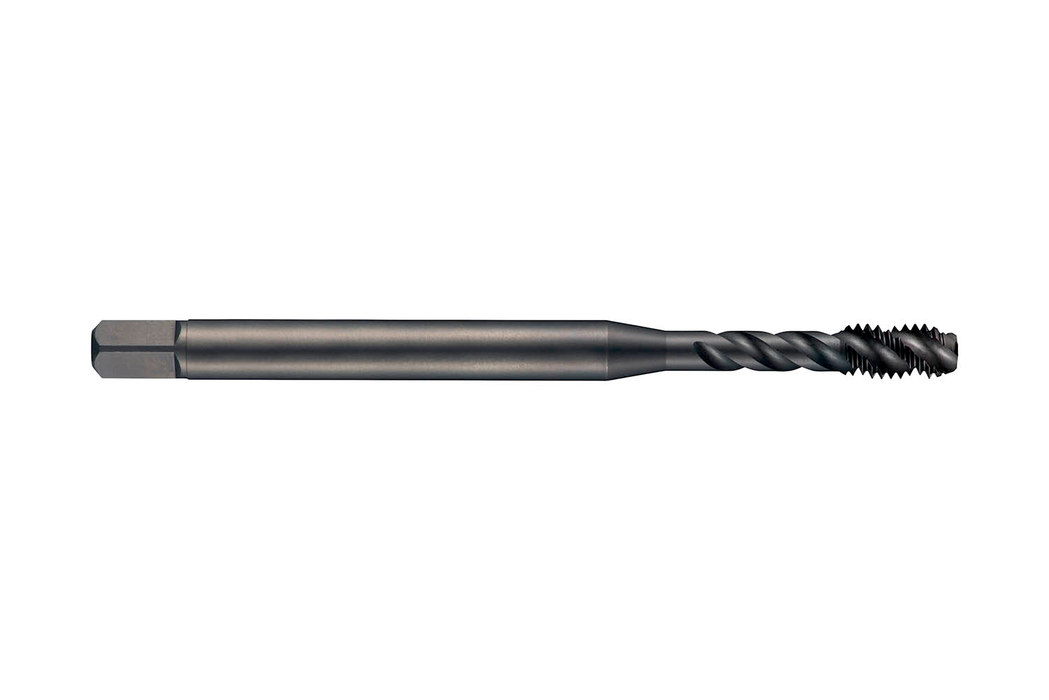

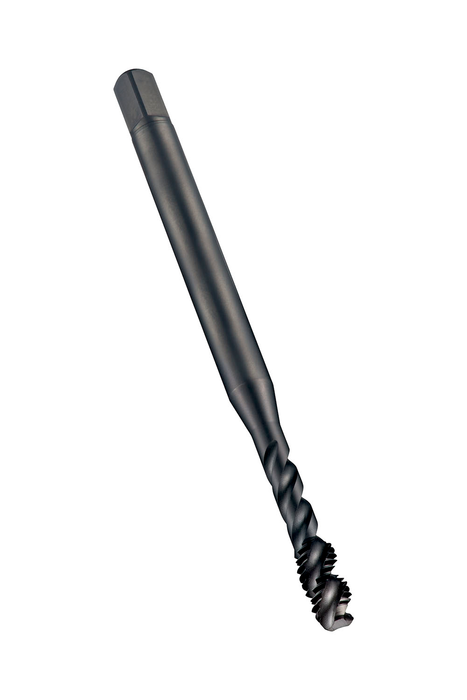

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 7/16" with 20 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 8.0mm shank and 6.2mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in alloy steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$107.94 - $107.94
$107.94
$107.94 - $107.94
$107.94
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

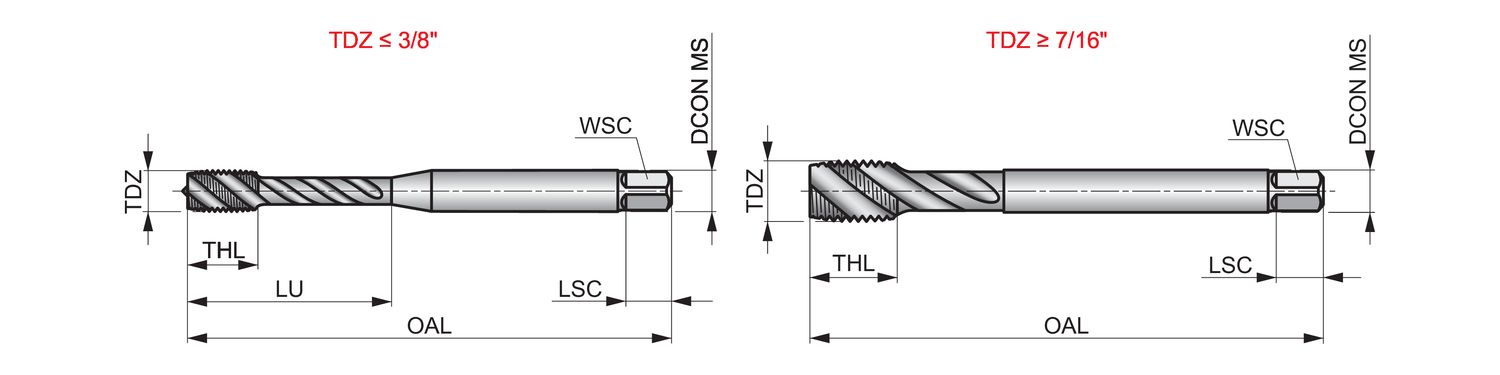

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.937

Connetion Diameter: 0.315

Tool Direction: Right

Diameter Size: 7/16

Thread Diameter - in: 0.4375

Thread Diameter - mm: 11.112

TPI: 20.0

Thread Form: UNF - Unified Fine

Shank: Cylindrical shank with Square

Grade: Steam Tempered

EDP: 168486

EAN: 7320760168486

MFG Part Number: 5974176
