EX211/4

EX211/4

SKU DOR5974234
by Dormer Pramet
Primary Use: Possible Use:

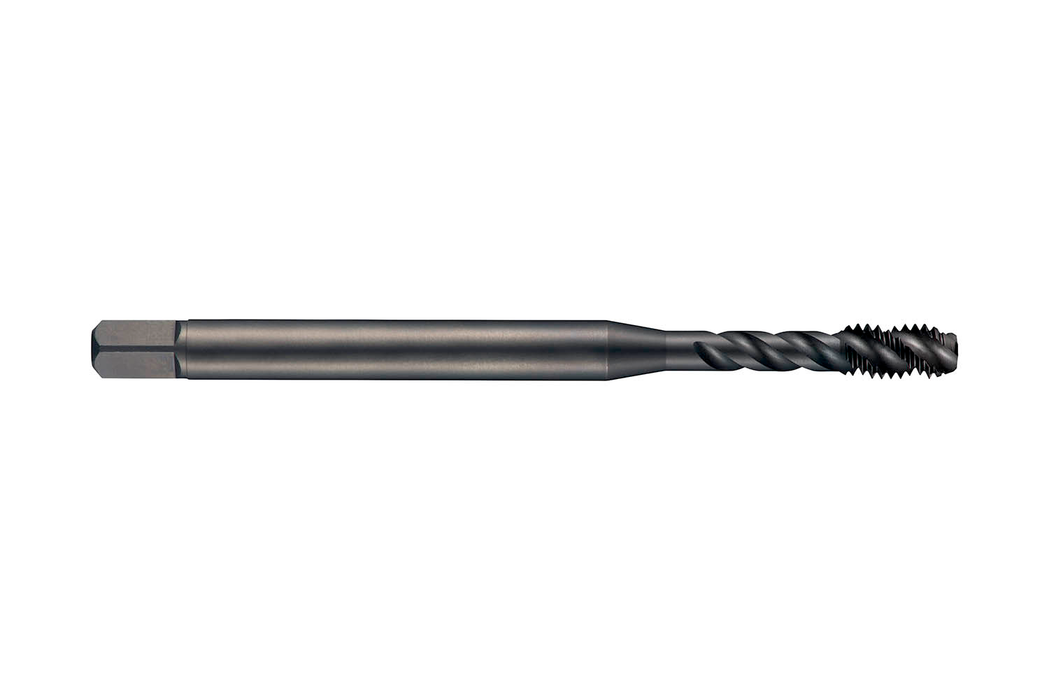

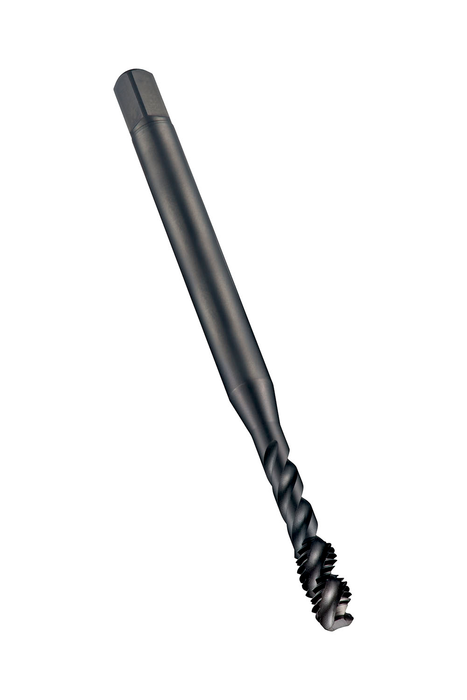

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 1/4" with 20 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$55.27 - $55.27
$55.27
$55.27 - $55.27
$55.27
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

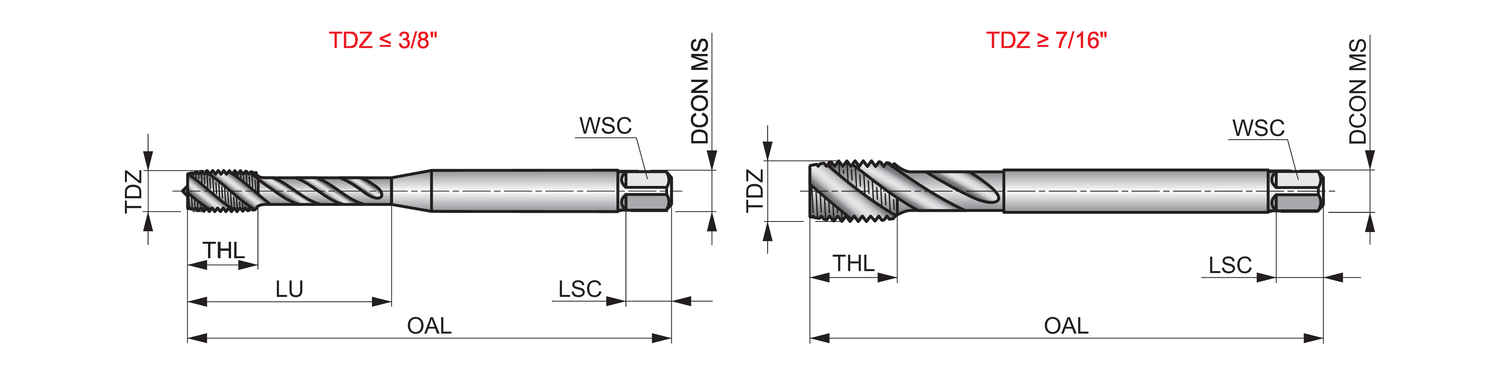

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.1496

Connetion Diameter: 0.2756

Tool Direction: Right

Diameter Size: 1/4

Thread Diameter - in: 0.25

Thread Diameter - mm: 6.35

TPI: 20.0

Thread Form: UNC - Unified Coarse

Shank: Cylindrical shank with Square

Usable Length: 1.1811

Grade: Steam Tempered

EDP: 150474

EAN: 7320760150474

MFG Part Number: 5974234
