E003M2.5

E003M2.5

SKU DOR5974361
by Dormer Pramet
Primary Use: Possible Use:

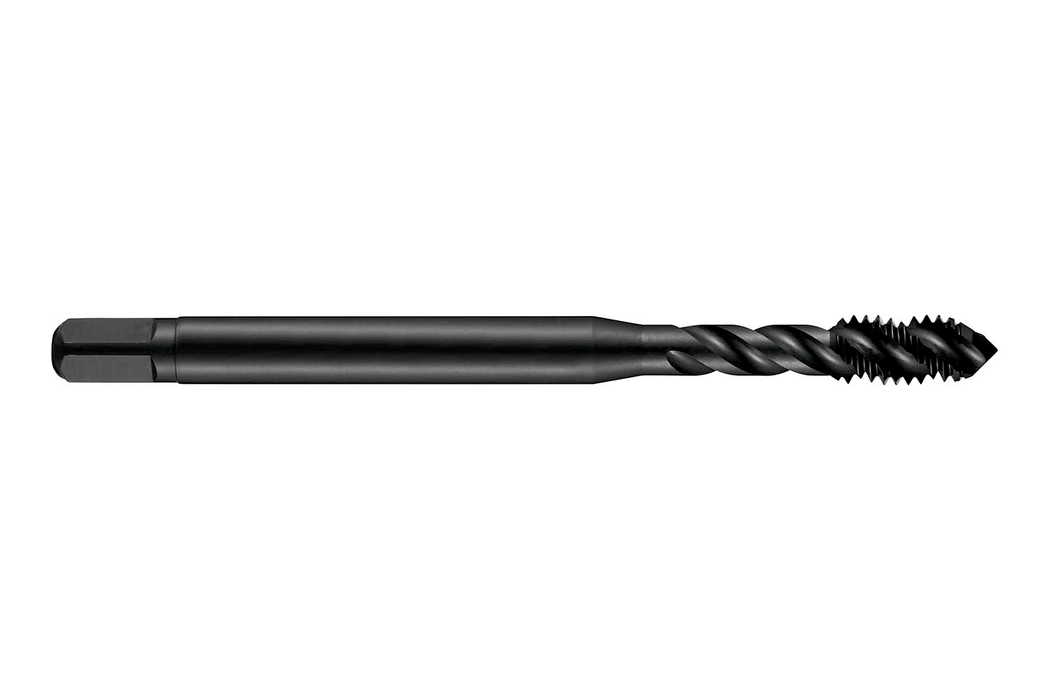

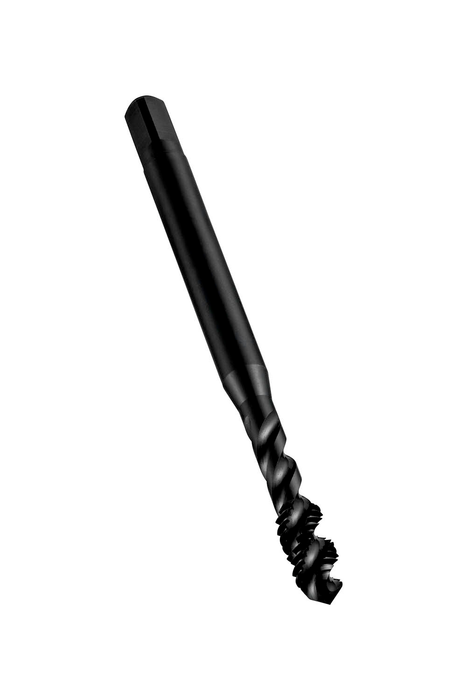

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M2.5 with 0.45 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 2.8mm shank and 2.24mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$35.70 - $35.70
$35.70
$35.70 - $35.70
$35.70
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

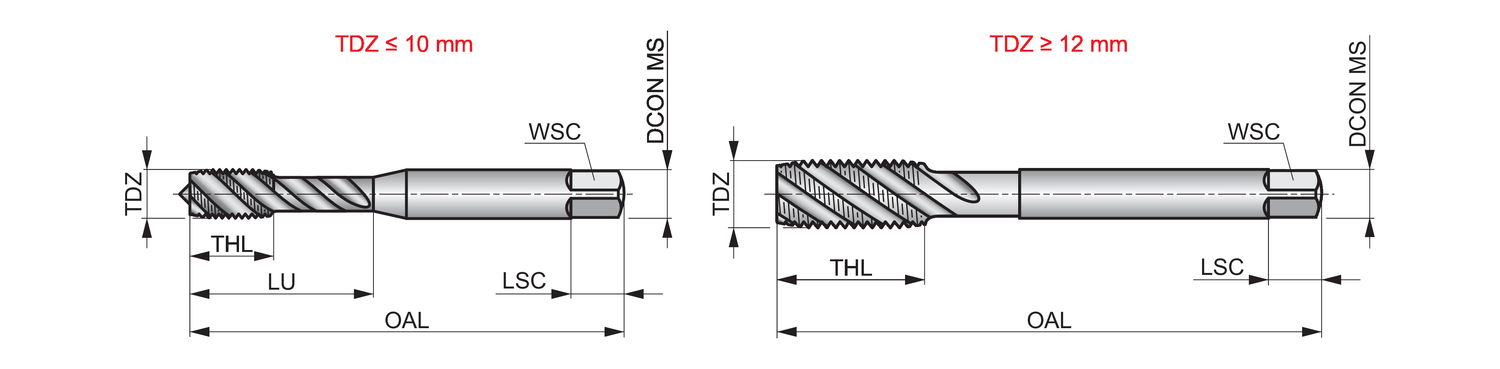

Material: HSS-E

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 1.752

Connetion Diameter: 0.1102

Tool Direction: Right

Diameter Size: 2.5

Pitch - mm: 0.45

Pitch - in: 0.0177

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 0.374

Grade: Steam Tempered

EDP: 168851

EAN: 7320760168851

MFG Part Number: 5974361
