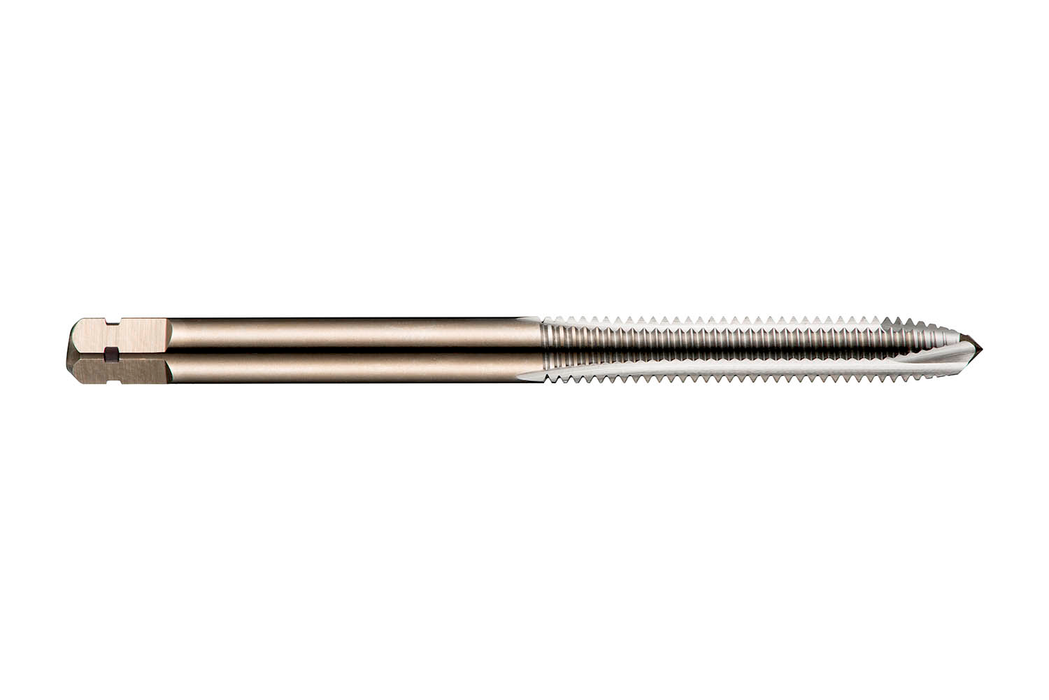

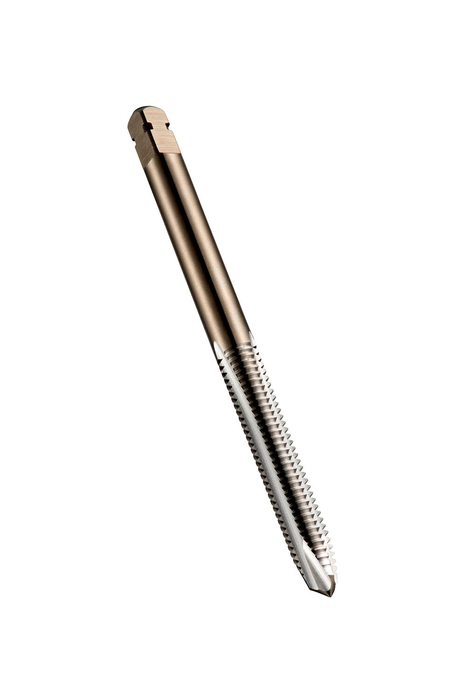

E0358-36

E0358-36

SKU DOR5974557
by Dormer Pramet
Primary Use:

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 8 with 36 TPI and 3B class of fit with H2 pitch diameter limits, dimensions according to ANSI standard with 0.1680" shank and 0.1310" square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$14.89 - $14.89
$14.89
$14.89 - $14.89
$14.89
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.125

Connetion Diameter: 0.168

Tool Direction: Right

Diameter Size: 8

TPI: 36.0

Thread Form: UNF - Unified Fine

Shank: Cylindrical shank with Square

Usable Length: 0.6526

Grade: Bright

EDP: 581964

EAN: 7320760581964

MFG Part Number: 5974557
