E0359/16

E0359/16

SKU DOR5974561
by Dormer Pramet
Primary Use:

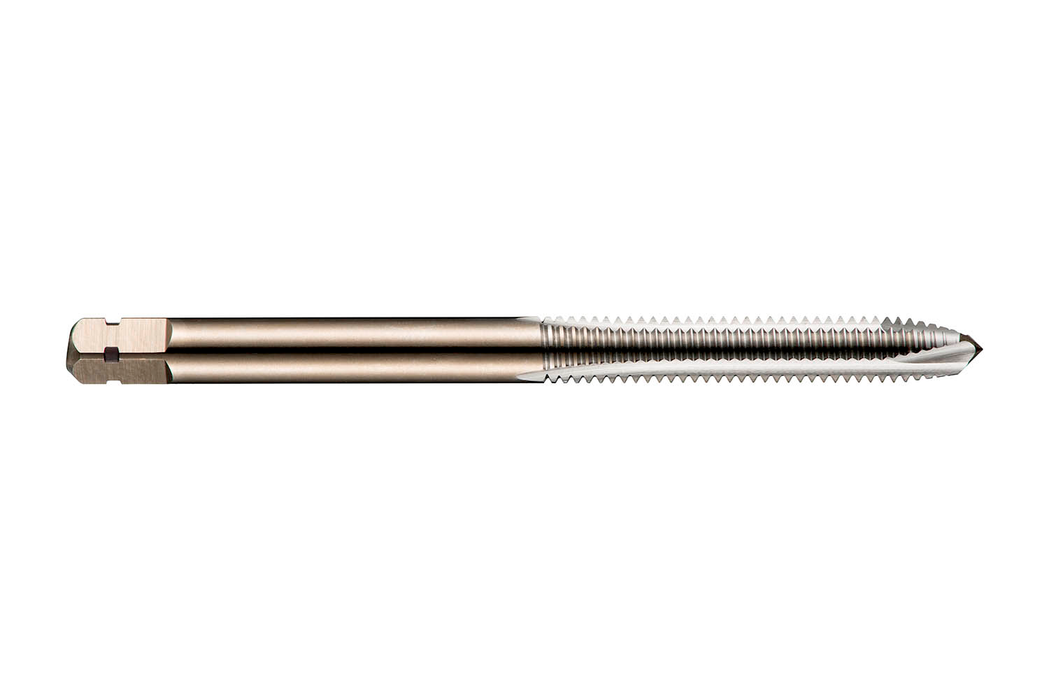

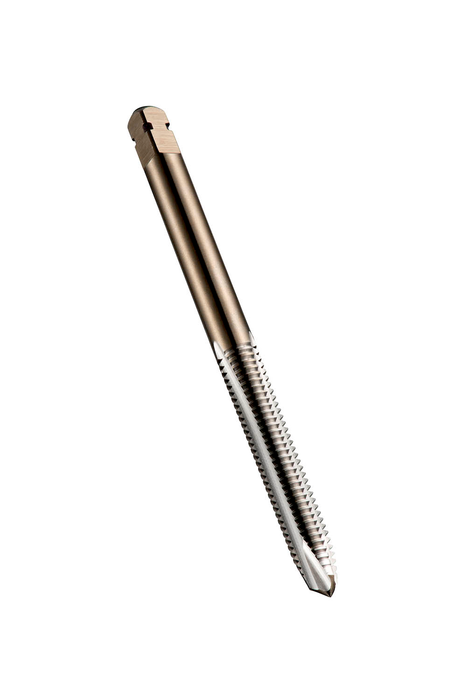

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 9/16" with 18 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to ANSI standard with 0.4290" shank and 0.3220" square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$57.49 - $57.49
$57.49
$57.49 - $57.49
$57.49
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 3.5938

Connetion Diameter: 0.429

Tool Direction: Right

Diameter Size: 9/16

TPI: 18.0

Thread Form: UNF - Unified Fine

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 582084

EAN: 7320760582084

MFG Part Number: 5974561
