E03710-32

E03710-32

SKU DOR5974670
by Dormer Pramet
Primary Use:

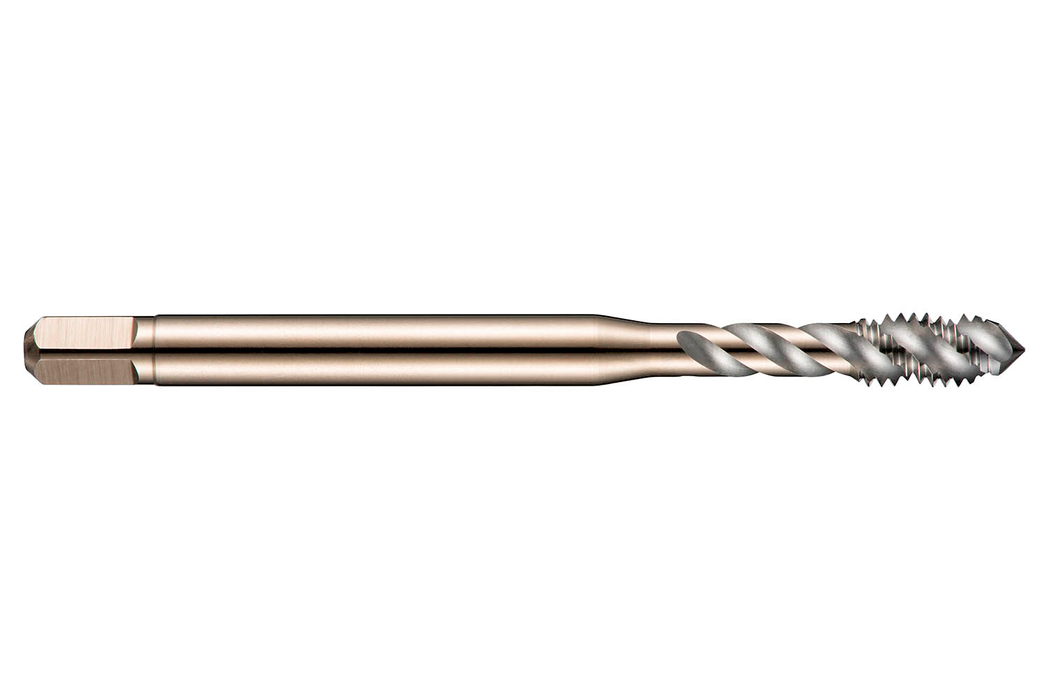

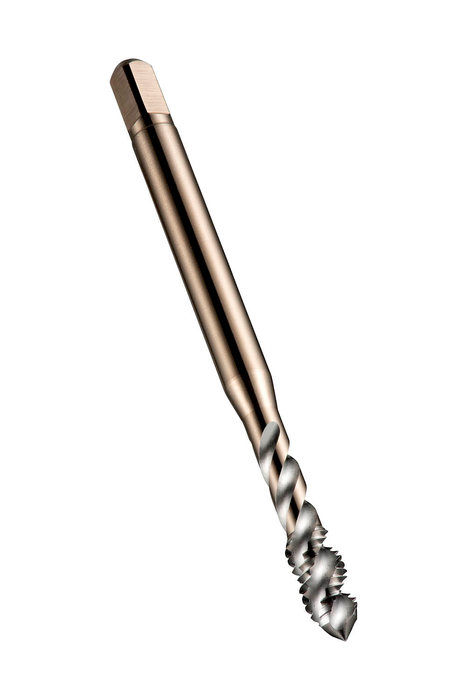

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 10 with 32 TPI and 3B class of fit with H2 pitch diameter limits, dimensions according to ANSI standard with 0.1940" shank and 0.1520" square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$24.90 - $24.90
$24.90
$24.90 - $24.90
$24.90
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

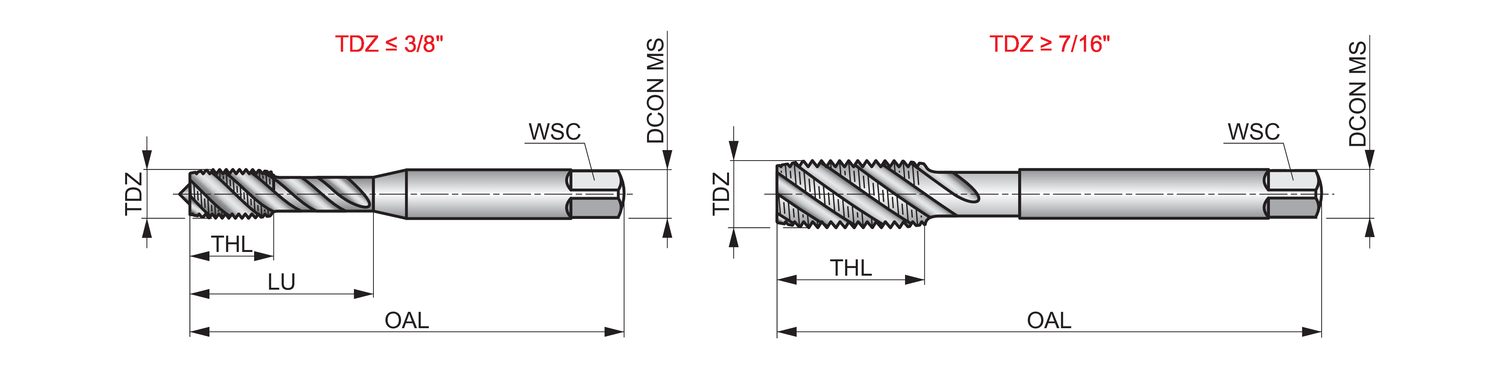

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 2.375

Connetion Diameter: 0.194

Tool Direction: Right

Diameter Size: 10

TPI: 32.0

Thread Form: UNF - Unified Fine

Shank: Cylindrical shank with Square

Usable Length: 0.8434

Grade: Bright

EDP: 582312

EAN: 7320760582312

MFG Part Number: 5974670
