E0381-14

E0381-14

SKU DOR5974707
by Dormer Pramet
Primary Use: Possible Use:

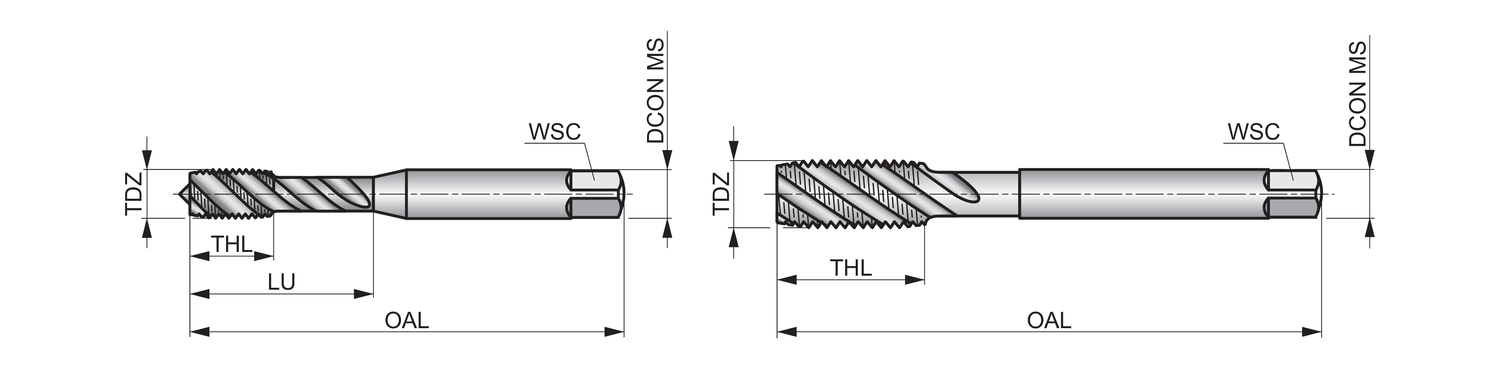

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 1" with 14 TPI and 3B class of fit with H4 pitch diameter limits, dimensions according to ANSI standard with 0.8000" shank and 0.6000" square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$270.86 - $270.86
$270.86
$270.86 - $270.86
$270.86
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E-PM

Lenxth x Diameter Ratio: 2.5

Overall Length (OAL): 5.125

Connetion Diameter: 0.8

Tool Direction: Right

Diameter Size: 1"

TPI: 14.0

Thread Form: UNF - Unified Fine

Shank: Cylindrical shank with Square

Grade: Steam Tempered

EDP: 582541

EAN: 7320760582541

MFG Part Number: 5974707
