E102M6NO8

E102M6NO8

SKU DOR5974874
by Dormer Pramet
Primary Use: Possible Use:

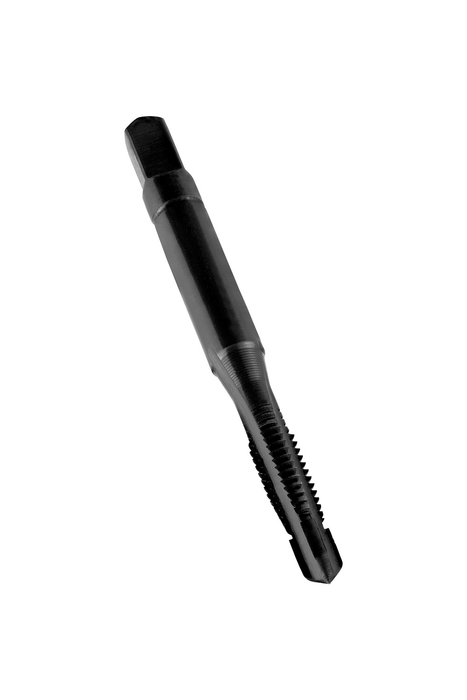

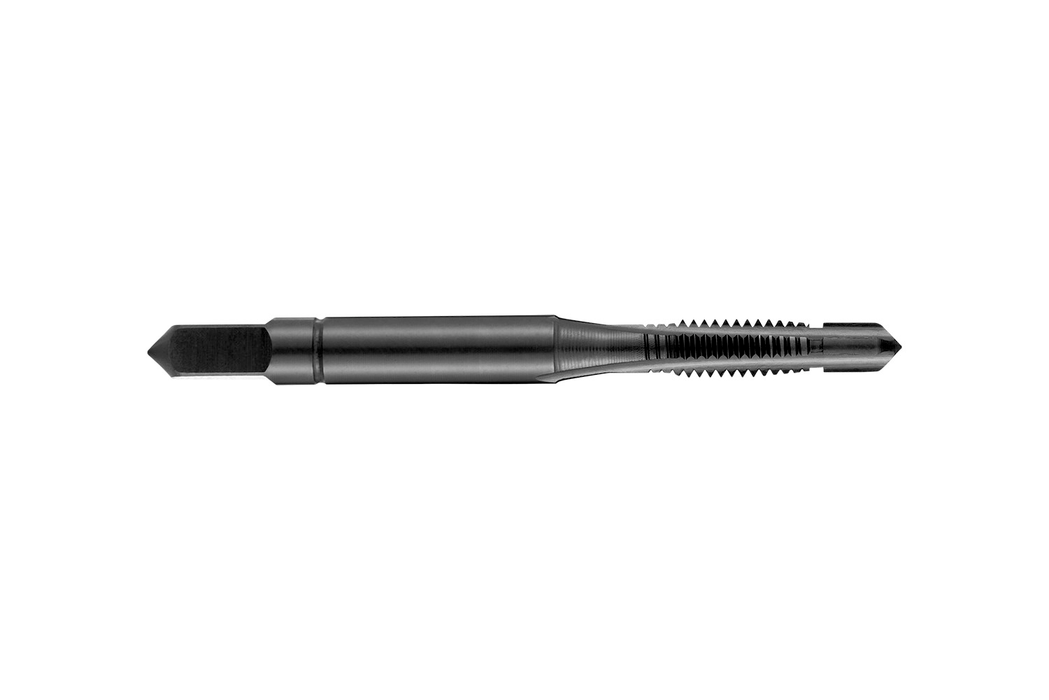

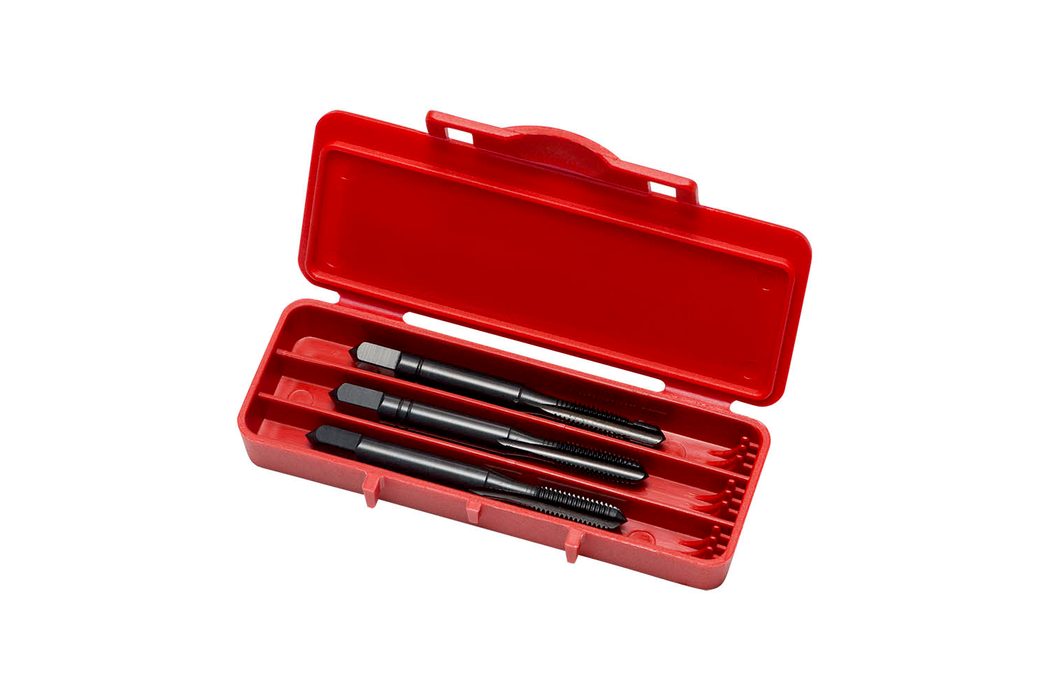

Set of straight flute serial taps NO8 for ISO-Metric thread M6 with 1.00 mm pitch and 6HX class of fit, consisting of 1 tap with a truncated thread profile and 6-8xP taper lead, 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 352 standard with 6.0mm shank and 4.9mm square drive, cobalt based HSS-E with steam tempered surface finish for 1.5xD through or blind hole threading in stainless steel and cast-iron

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$91.26 - $91.26
$91.26
$91.26 - $91.26
$91.26
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

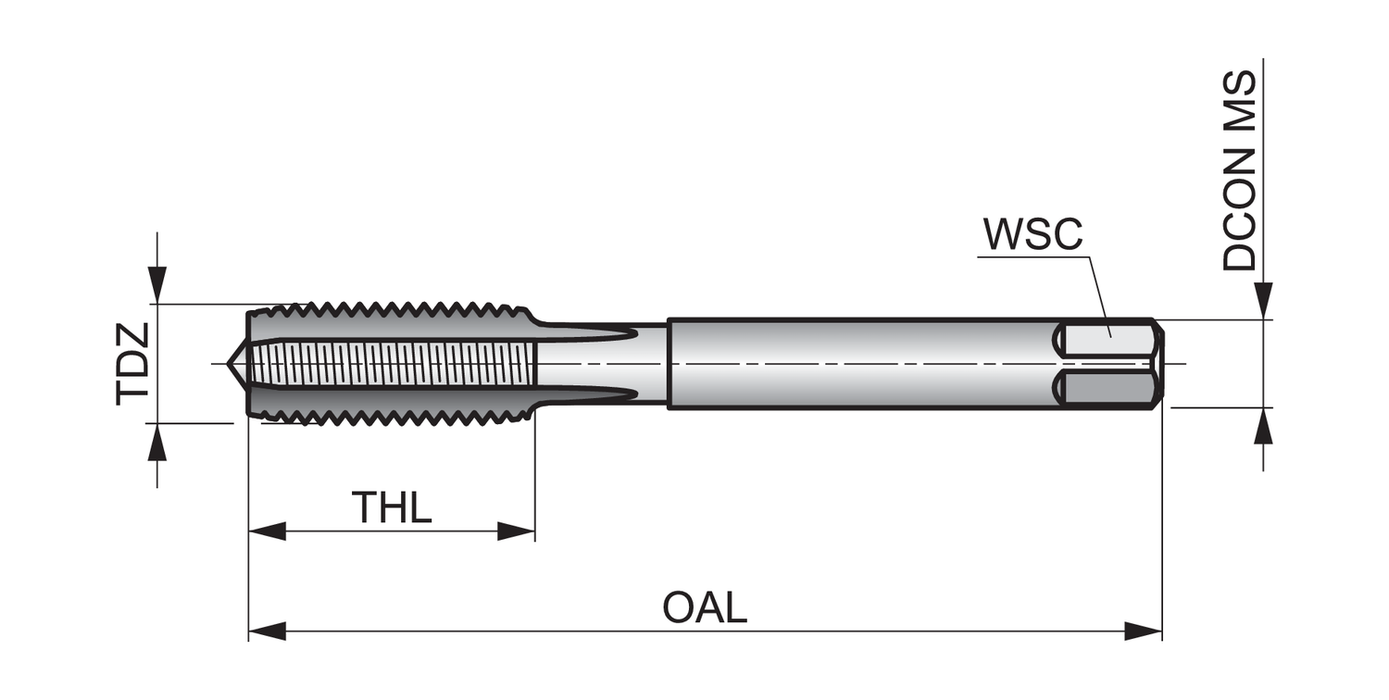

Material: HSS-E

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 2.2047

Connetion Diameter: 0.2362

Tool Direction: Right

Diameter Size: 6

Pitch - mm: 1.0

Pitch - in: 0.0394

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Grade: Steam Tempered

EDP: 80191

EAN: 7320760080191

MFG Part Number: 5974874
