E2781.1/4

E2781.1/4

SKU DOR5975096
by Dormer Pramet
Primary Use: Possible Use:

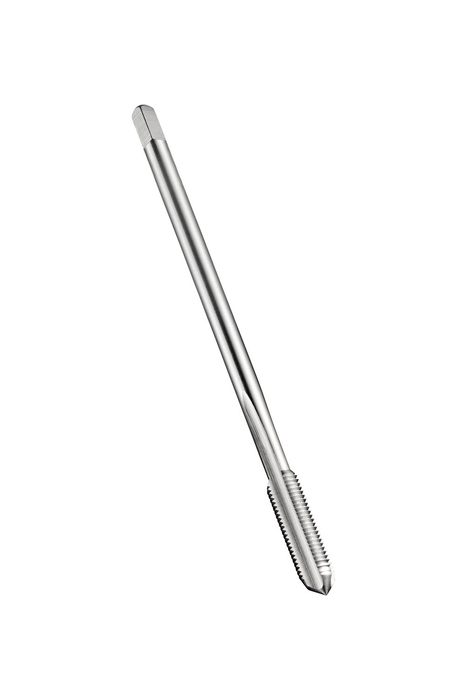

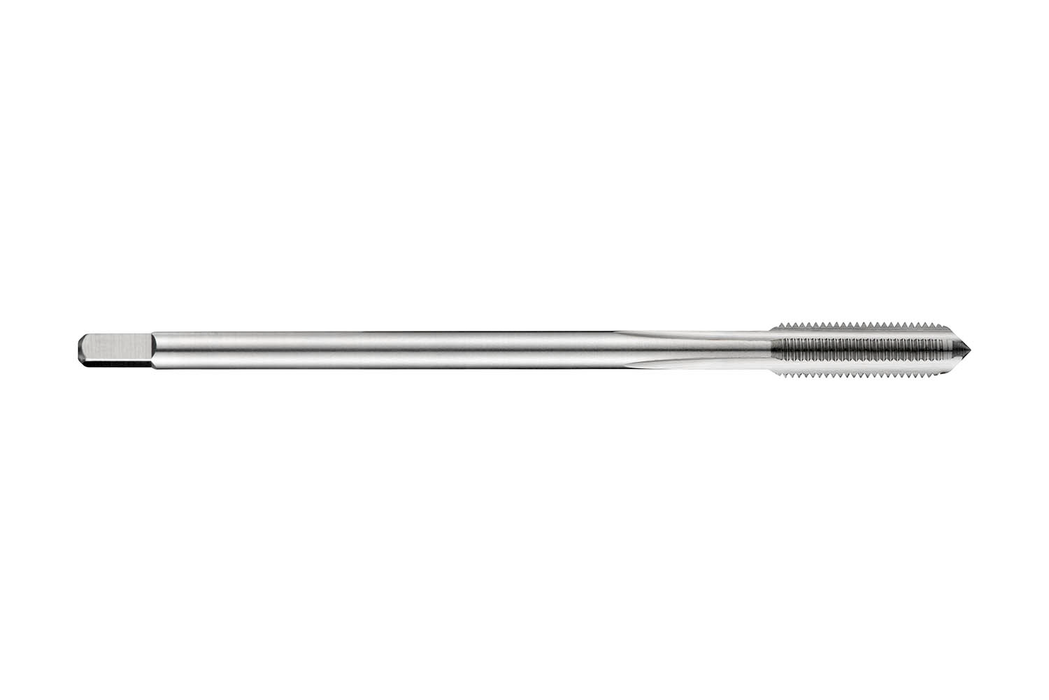

Straight flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 1.1/4" with 12 TPI and 2B class of fit, dimensions according to DIN 374 standard with 25.0mm shank and 20.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$357.19 - $357.19
$357.19
$357.19 - $357.19
$357.19
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

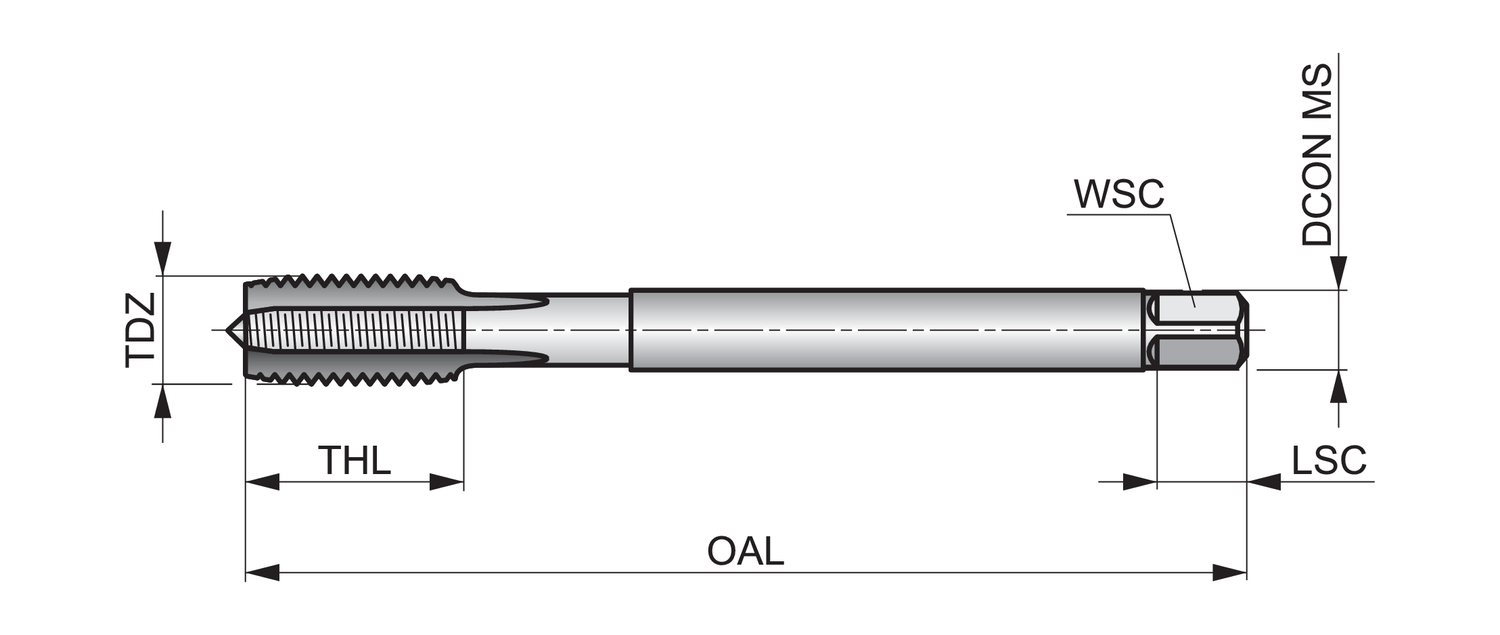

Material: HSS-E-PM

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 5.9055

Connetion Diameter: 0.9843

Tool Direction: Right

Diameter Size: 1.1/4

Thread Diameter - in: 1.25

Thread Diameter - mm: 31.75

TPI: 12.0

Thread Form: UNF - Unified Fine

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 89583

EAN: 7320760089583

MFG Part Number: 5975096
