E2781.3/8

E2781.3/8

SKU DOR5975103
by Dormer Pramet
Primary Use: Possible Use:

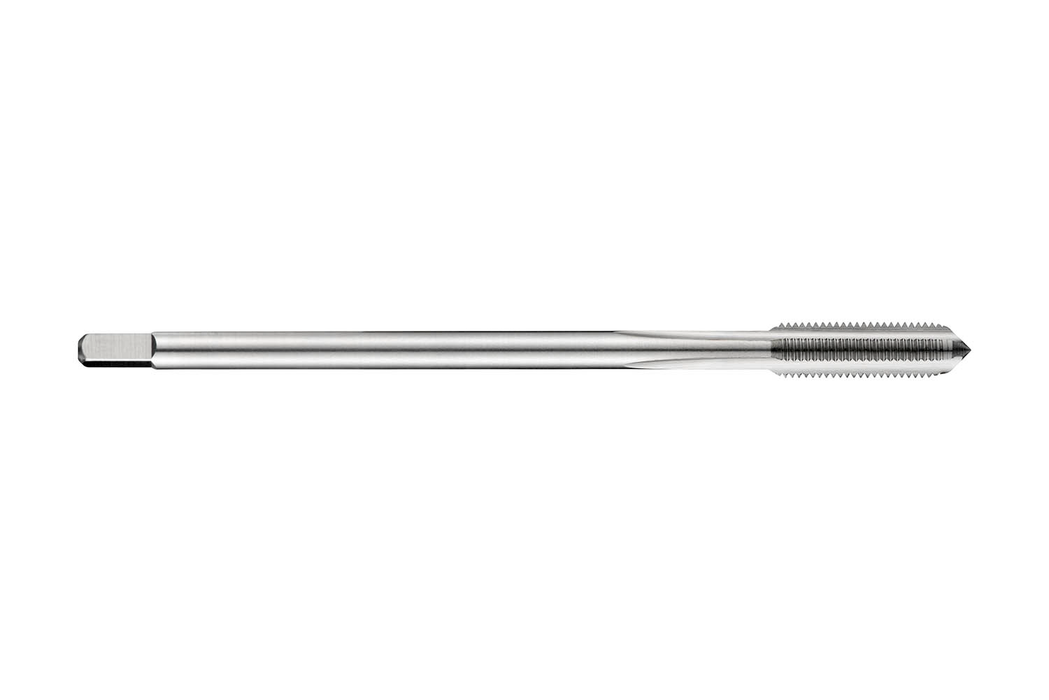

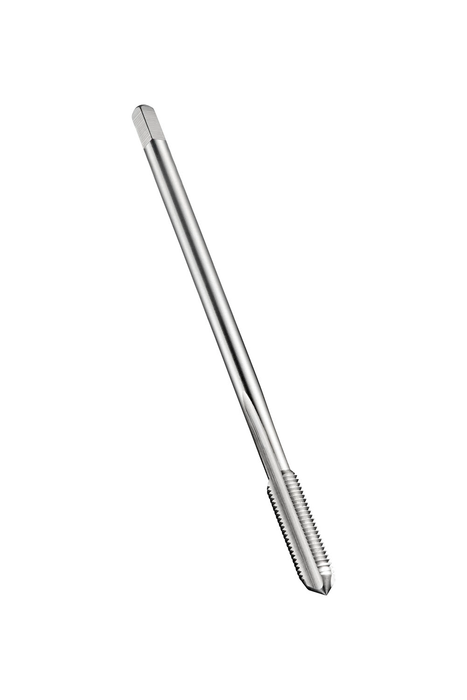

Straight flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 1.3/8" with 12 TPI and 2B class of fit, dimensions according to DIN 374 standard with 28.0mm shank and 22.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$562.63 - $562.63
$562.63
$562.63 - $562.63
$562.63
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

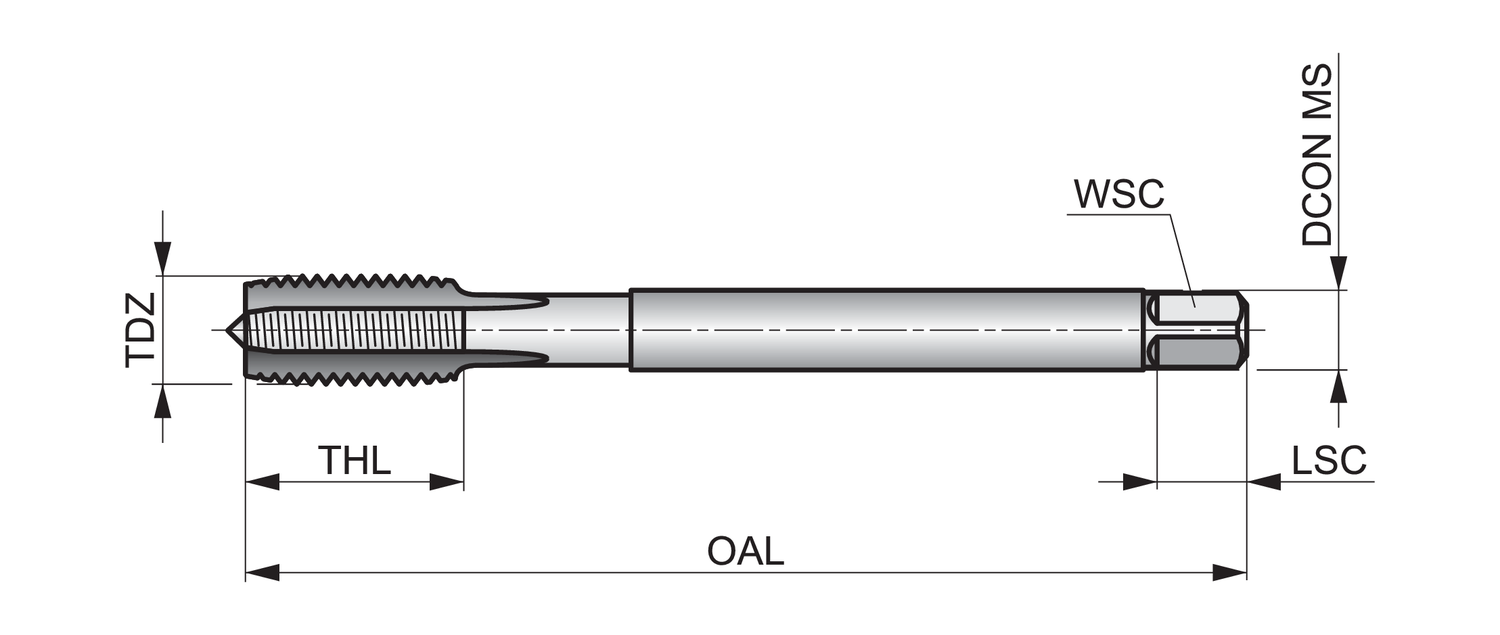

Material: HSS-E-PM

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 6.6929

Connetion Diameter: 1.1024

Tool Direction: Right

Diameter Size: 1.3/8

Thread Diameter - in: 1.3752

Thread Diameter - mm: 34.93

TPI: 12.0

Thread Form: UNF - Unified Fine

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 89606

EAN: 7320760089606

MFG Part Number: 5975103
