E268M48X1.5

E268M48X1.5

SKU DOR5975179
by Dormer Pramet
Primary Use: Possible Use:

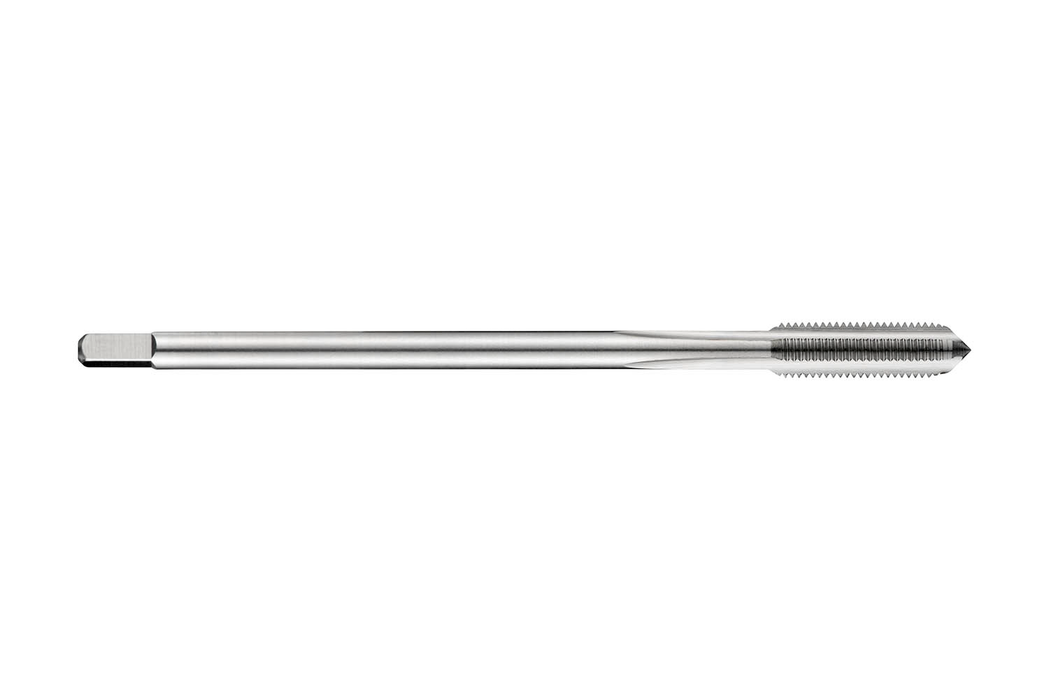

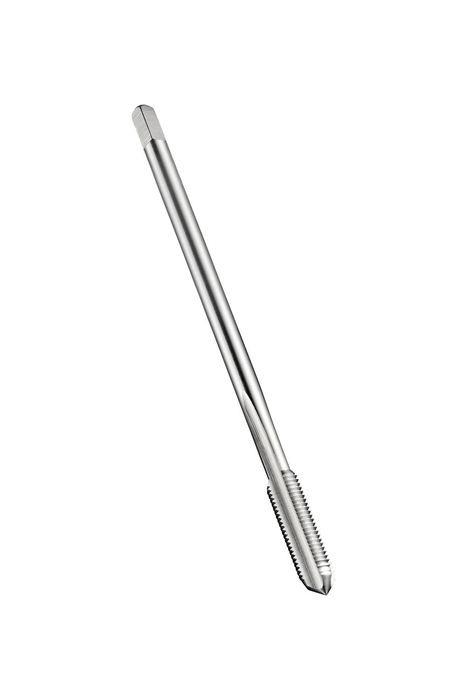

Straight flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M48 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 36.0mm shank and 29.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$745.13 - $745.13
$745.13
$745.13 - $745.13
$745.13
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

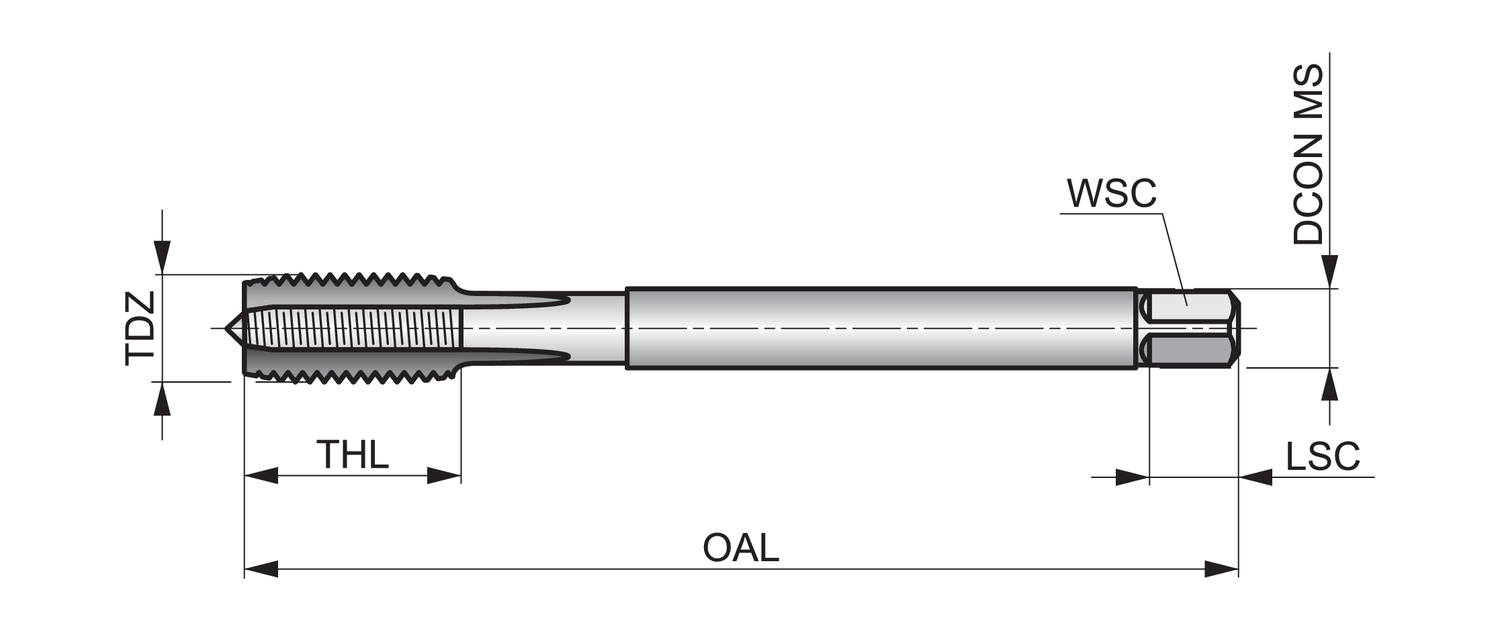

Material: HSS-E

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 7.4803

Connetion Diameter: 1.4173

Tool Direction: Right

Diameter Size: 48

Pitch - mm: 1.5

Pitch - in: 0.0591

Thread Form: MF - Metric fine

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 88906

EAN: 7320760088906

MFG Part Number: 5975179
