E207M2

E207M2

SKU DOR5975721
by Dormer Pramet
Primary Use: Possible Use:

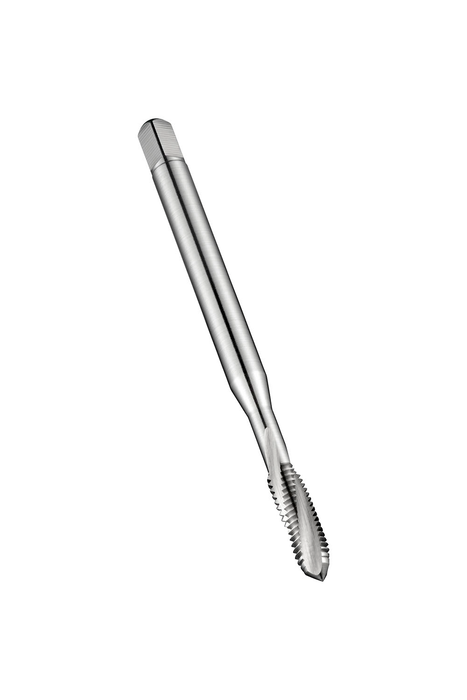

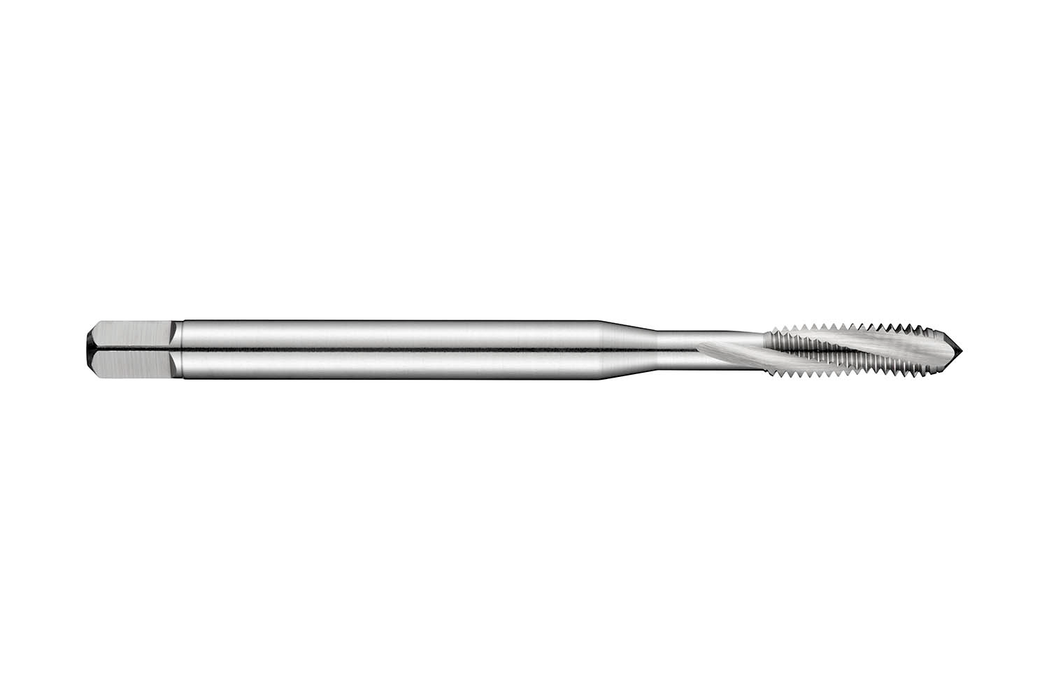

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M2 with 0.40 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 2.8mm shank and 2.1mm square drive, powder metallurgical HSS-E with bright finish and 15° helix angle for 1.5xD blind hole threading in alloy steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$35.67 - $35.67
$35.67
$35.67 - $35.67
$35.67
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

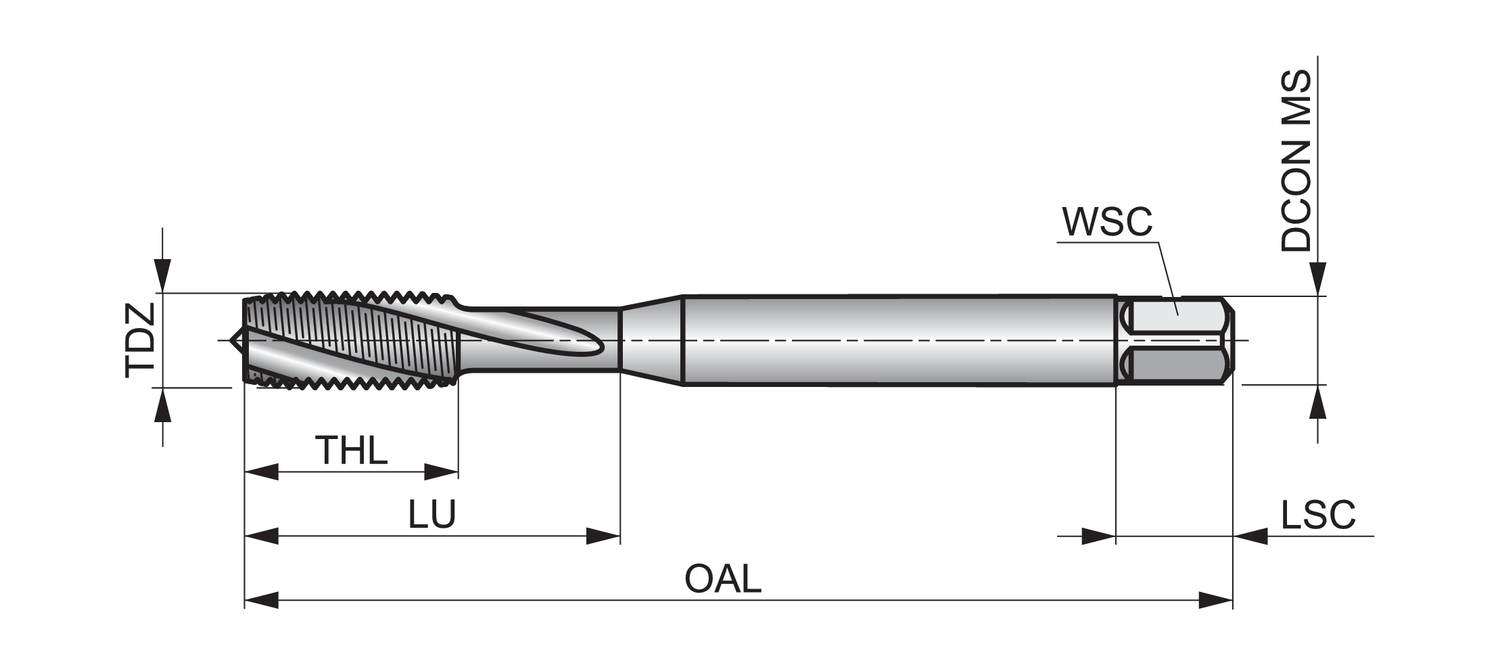

Material: HSS-E-PM

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 1.7717

Connetion Diameter: 0.1102

Tool Direction: Right

Diameter Size: 2

Pitch - mm: 0.4

Pitch - in: 0.0157

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Usable Length: 0.3543

Grade: Bright

EDP: 85363

EAN: 7320760085363

MFG Part Number: 5975721
