E1197/8NO9

E1197/8NO9

SKU DOR5975776
by Dormer Pramet
Primary Use: Possible Use:

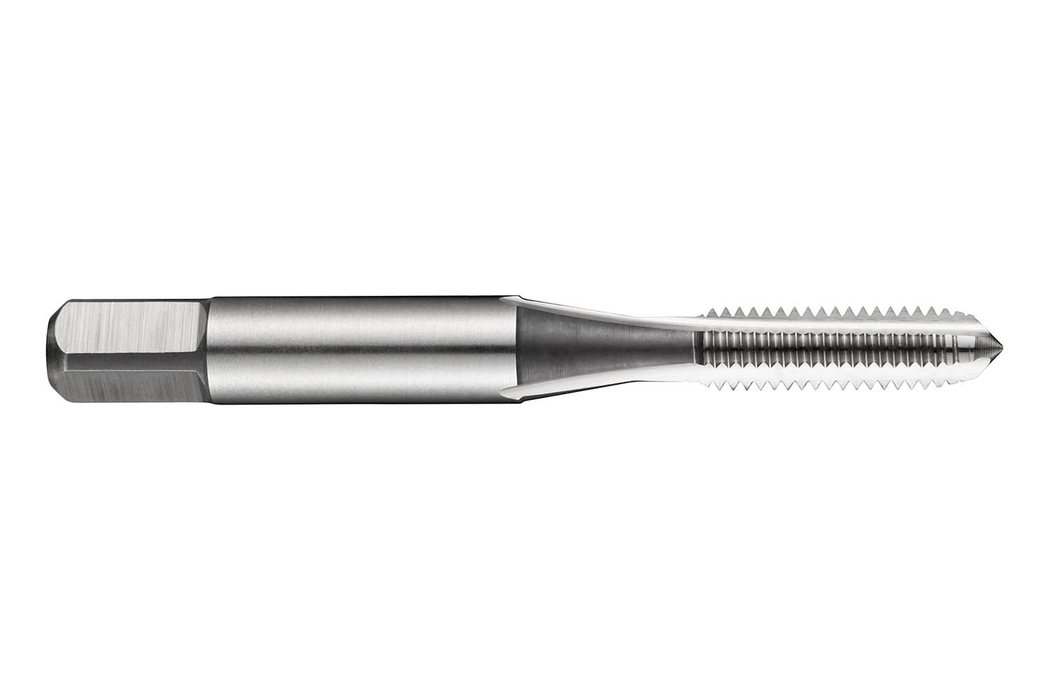

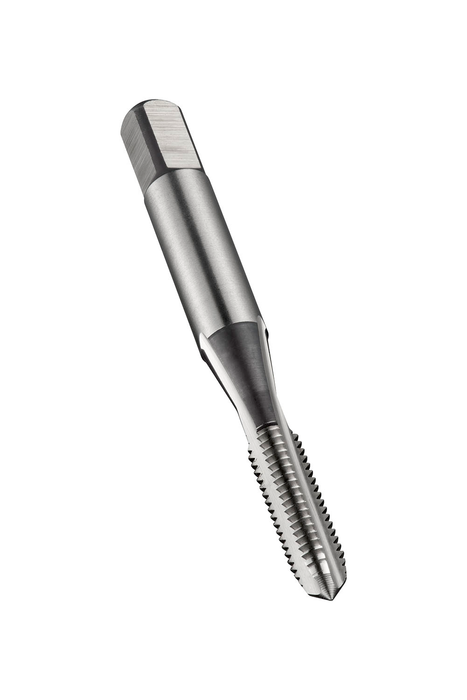

Set of straight flute serial taps NO9 for British Standard Pipe thread G 7/8" with 14 TPI and Normal class of fit, consisting of 1 tap with a truncated thread profile and 3.5-5xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to DIN 5157 standard with 22.0mm shank and 18.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and non-ferrous metals

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$282.61 - $282.61
$282.61
$282.61 - $282.61
$282.61
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 3.5433

Connetion Diameter: 0.8661

Tool Direction: Right

Diameter Size: 7/8

Thread Diameter - in: 1.189

Thread Diameter - mm: 30.2

TPI: 14.0

Thread Form: G - British standard pipe fastening - G series

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 84823

EAN: 7320760084823

MFG Part Number: 5975776
