E243PG16NO2

E243PG16NO2

SKU DOR5975805
by Dormer Pramet
Primary Use: Possible Use:

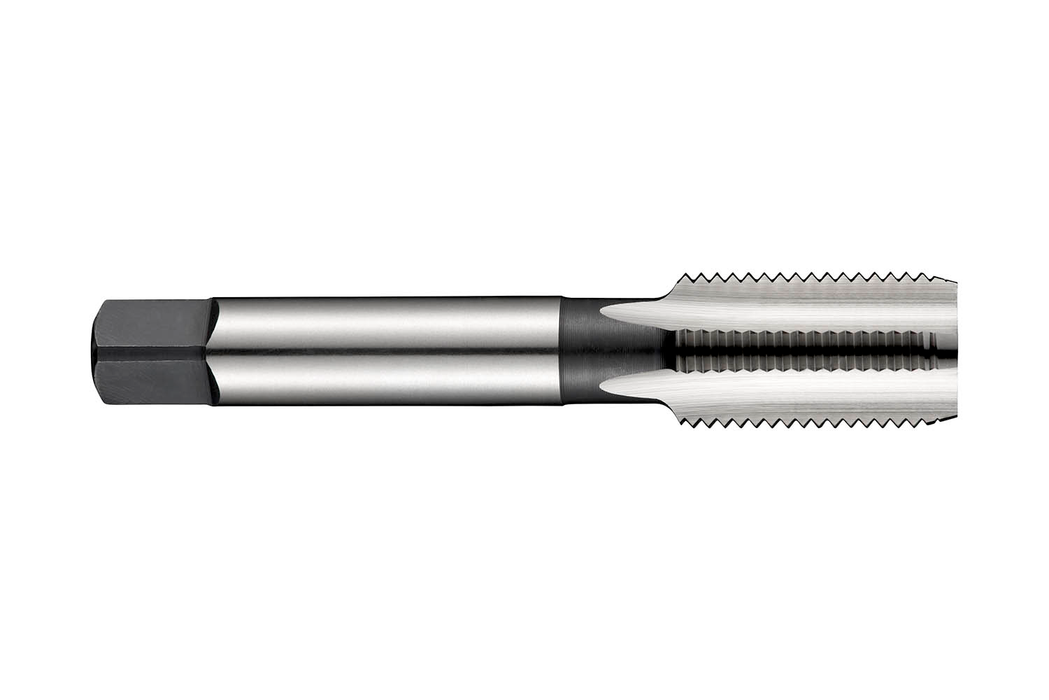

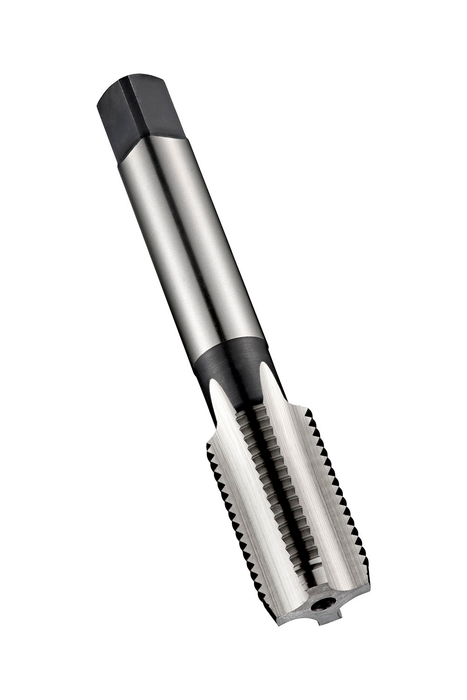

Straight flute tap NO2 with a 4-6xP second lead, for Panzergewinde (steel conduit thread) PG16 with 18 TPI and Normal class of fit, dimensions according to DIN 40432 standard with 18.0mm shank and 14.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$146.00 - $146.00
$146.00
$146.00 - $146.00
$146.00
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

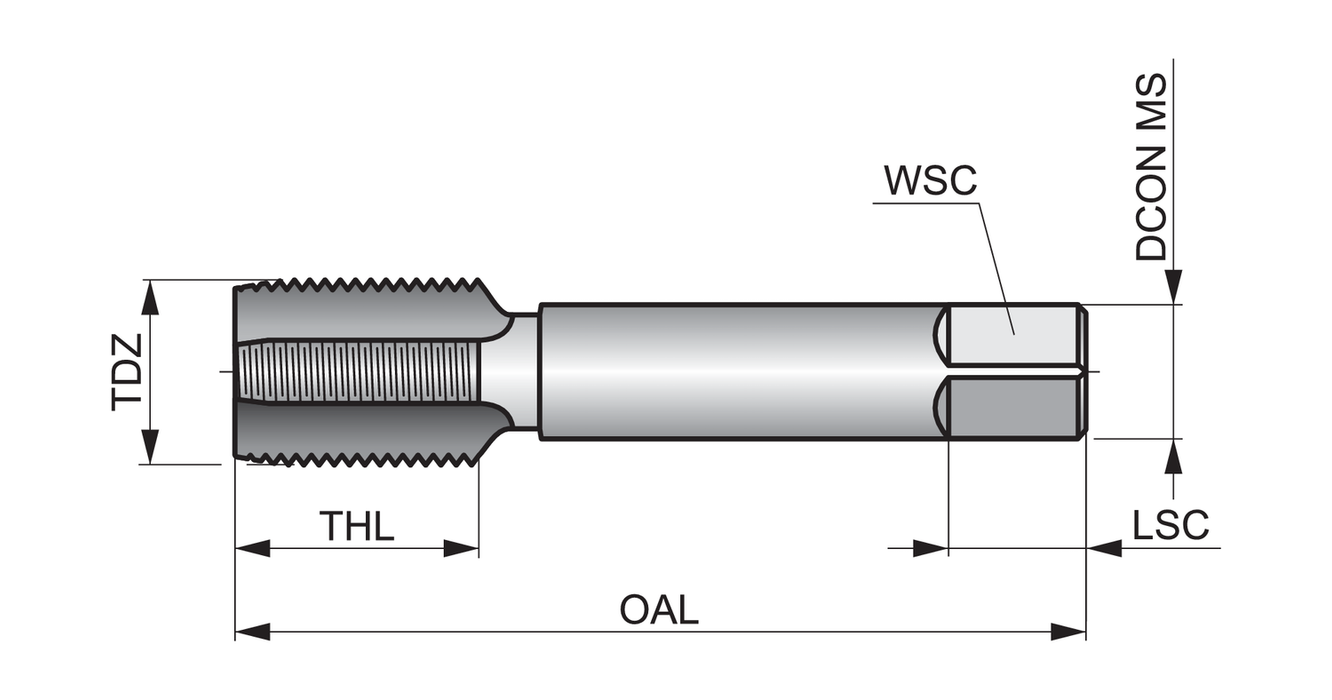

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 3.1496

Connetion Diameter: 0.7087

Tool Direction: Right

Diameter Size: 16

Thread Diameter - in: 0.8858

Thread Diameter - mm: 22.5

TPI: 18.0

Thread Form: PG

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 86605

EAN: 7320760086605

MFG Part Number: 5975805
