E243PG29NO2

E243PG29NO2

SKU DOR5975818
by Dormer Pramet
Primary Use: Possible Use:

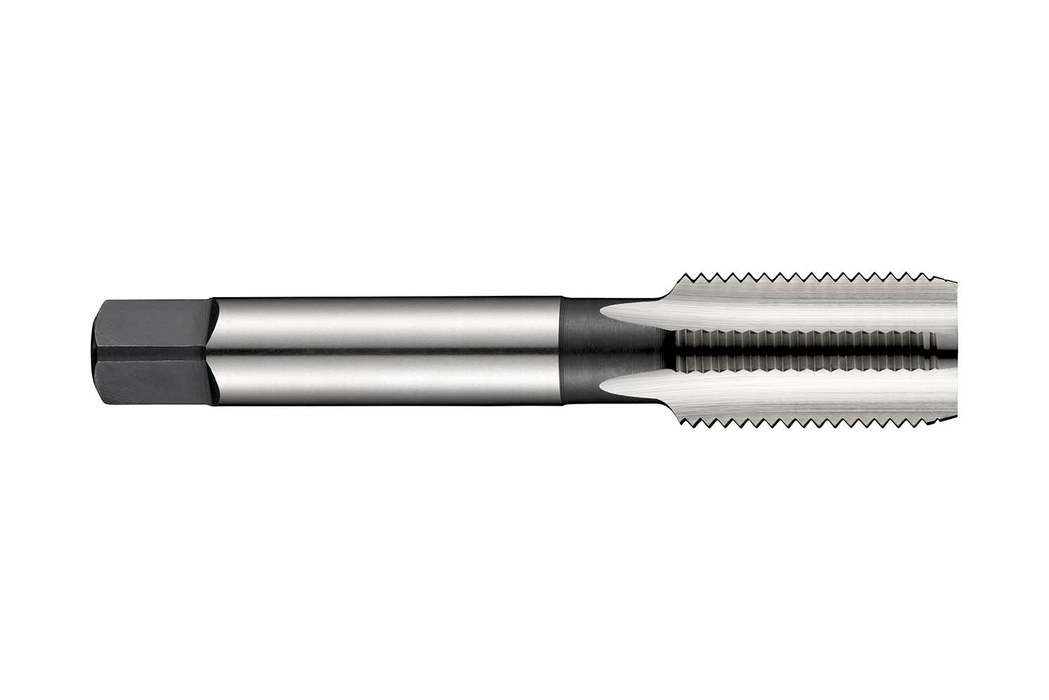

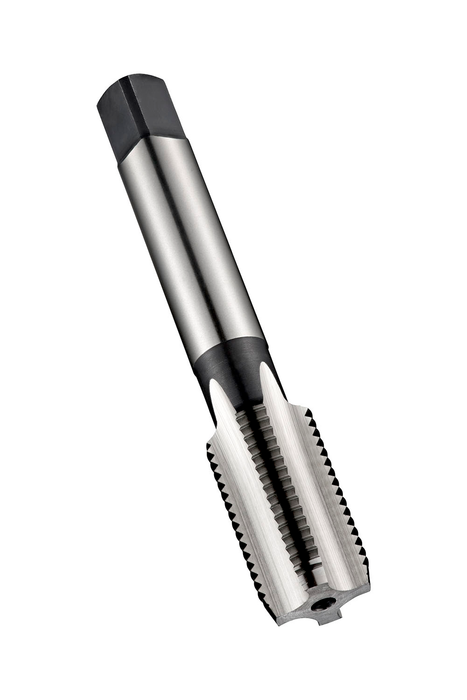

Straight flute tap NO2 with a 4-6xP second lead, for Panzergewinde (steel conduit thread) PG29 with 16 TPI and Normal class of fit, dimensions according to DIN 40432 standard with 28.0mm shank and 22.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$313.39 - $313.39
$313.39
$313.39 - $313.39
$313.39
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

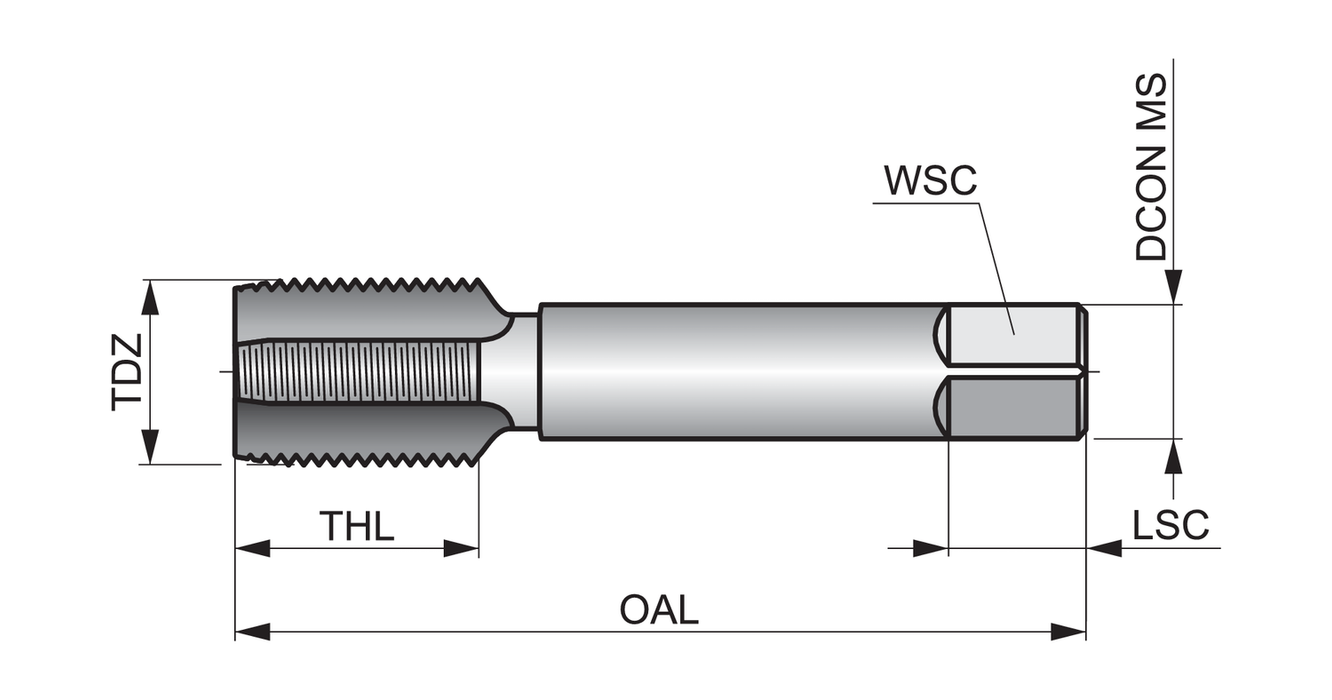

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 3.937

Connetion Diameter: 1.1024

Tool Direction: Right

Diameter Size: 29

Thread Diameter - in: 1.4567

Thread Diameter - mm: 37.0

TPI: 16.0

Thread Form: PG

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 86643

EAN: 7320760086643

MFG Part Number: 5975818
