E243PG36NO2

E243PG36NO2

SKU DOR5975827
by Dormer Pramet
Primary Use: Possible Use:

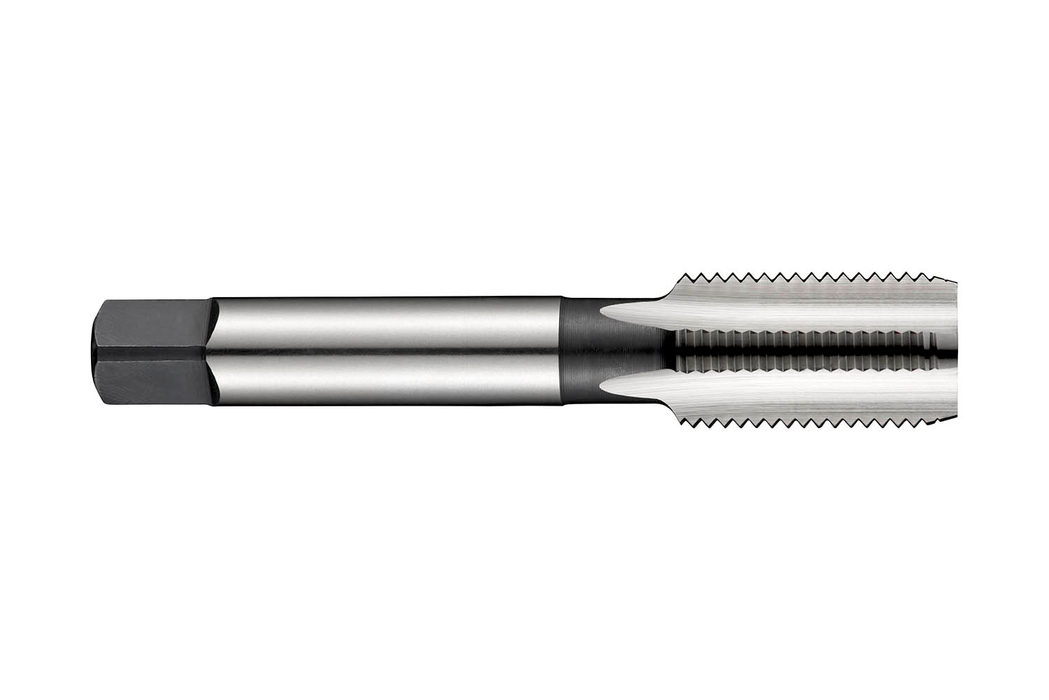

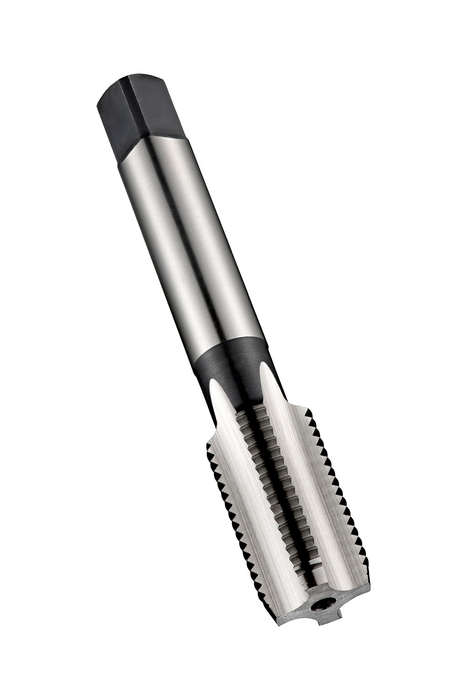

Straight flute tap NO2 with a 4-6xP second lead, for Panzergewinde (steel conduit thread) PG36 with 16 TPI and Normal class of fit, dimensions according to DIN 40432 standard with 36.0mm shank and 29.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$414.01 - $414.01
$414.01
$414.01 - $414.01
$414.01
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

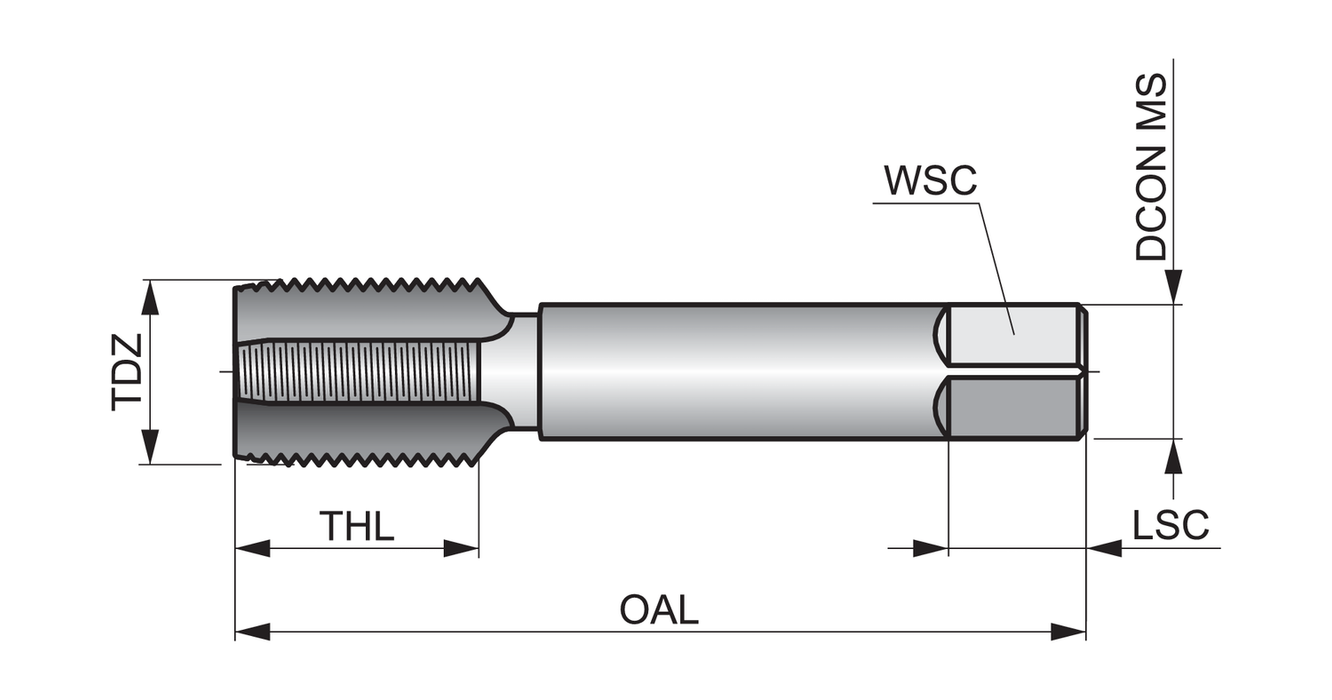

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 5.5118

Connetion Diameter: 1.4173

Tool Direction: Right

Diameter Size: 36

Thread Diameter - in: 1.8504

Thread Diameter - mm: 47.0

TPI: 16.0

Thread Form: PG

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 86667

EAN: 7320760086667

MFG Part Number: 5975827
