E2823/8

E2823/8

SKU DOR5975981
by Dormer Pramet
Primary Use: Possible Use:

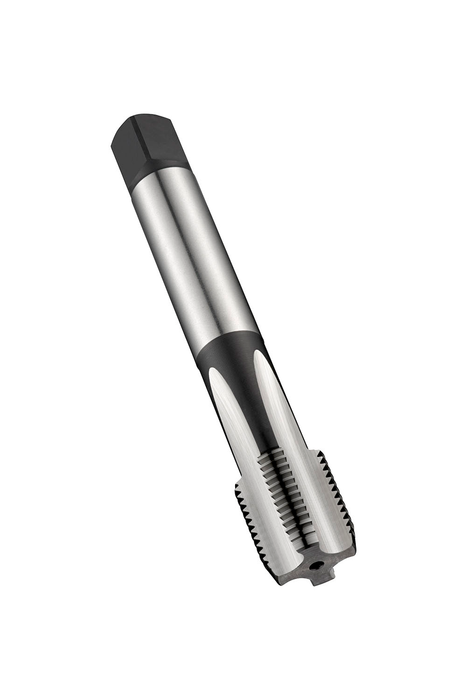

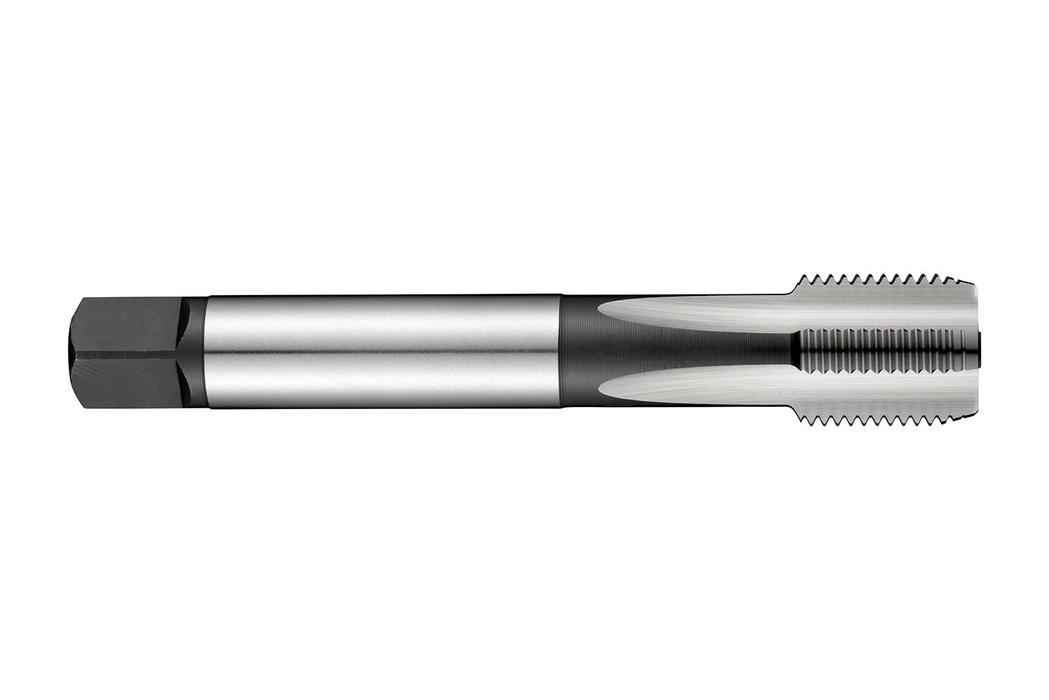

Straight flute tap with chamfer form C with a 2-3xP plug lead, for British Standard Pipe thread G 3/8" with 19 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 12.0mm shank and 9.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$63.61 - $63.61
$63.61
$63.61 - $63.61
$63.61
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

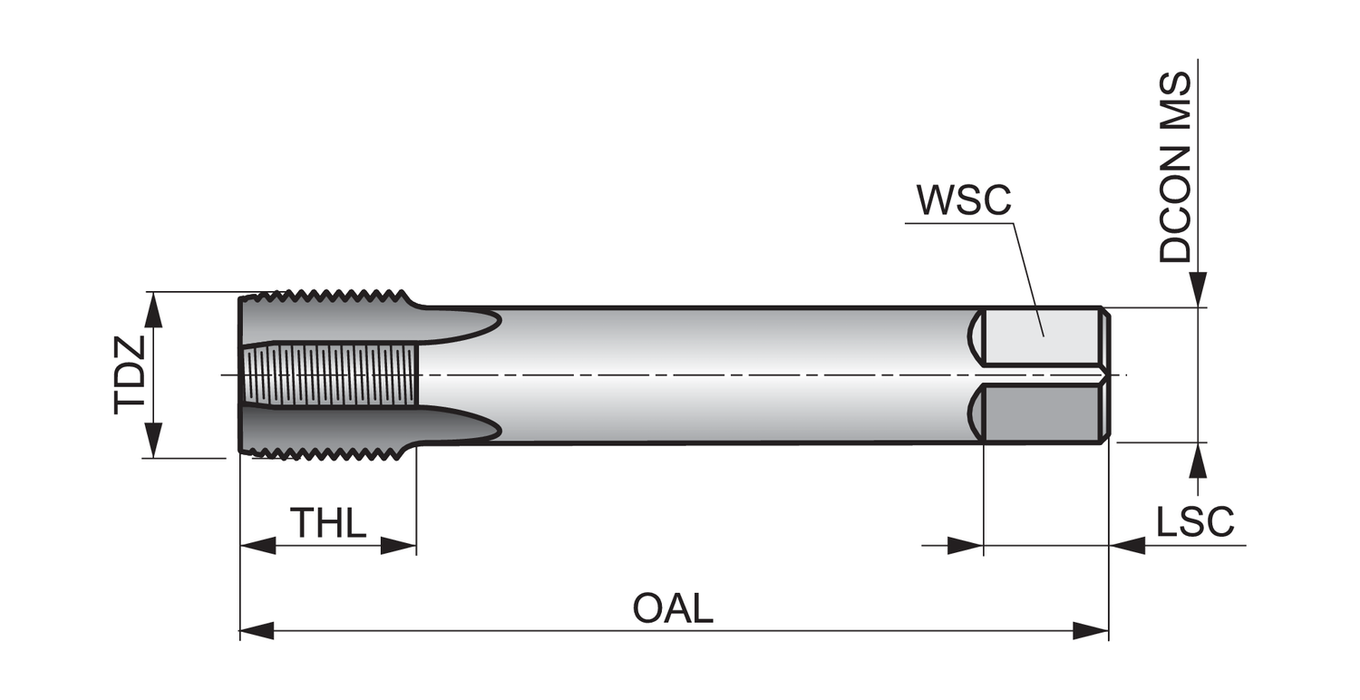

Material: HSS-E-PM

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 3.937

Connetion Diameter: 0.4724

Tool Direction: Right

Diameter Size: 3/8

Thread Diameter - in: 0.6559

Thread Diameter - mm: 16.66

TPI: 19.0

Thread Form: G - British standard pipe fastening - G series

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 90022

EAN: 7320760090022

MFG Part Number: 5975981
