E303M5NO3

E303M5NO3

SKU DOR5975984
by Dormer Pramet
Primary Use: Possible Use:

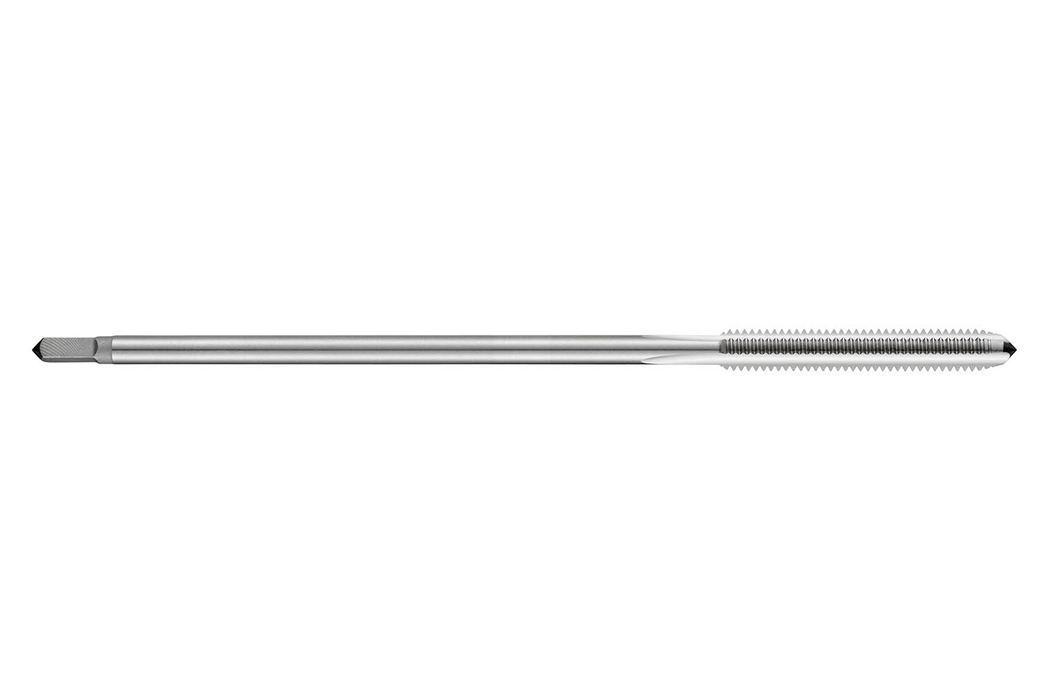

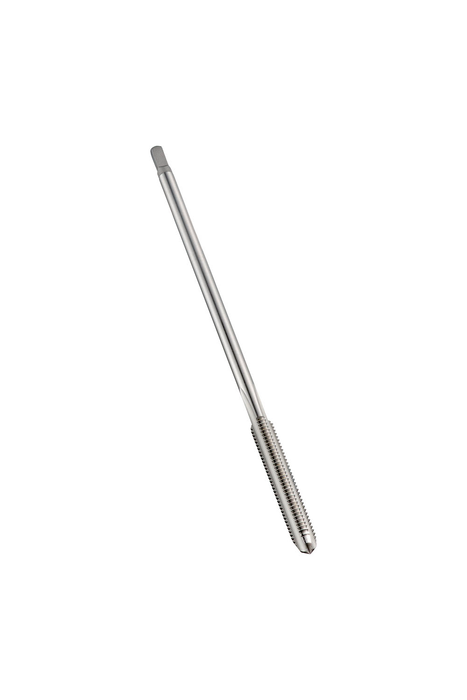

Straight flute nut tap NO3 with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 357 standard with 3.5mm shank and 2.7mm square drive, cobalt based HSS-E with bright finish for 2xD through or blind hole threading in free machining steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$45.10 - $45.10
$45.10
$45.10 - $45.10
$45.10
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

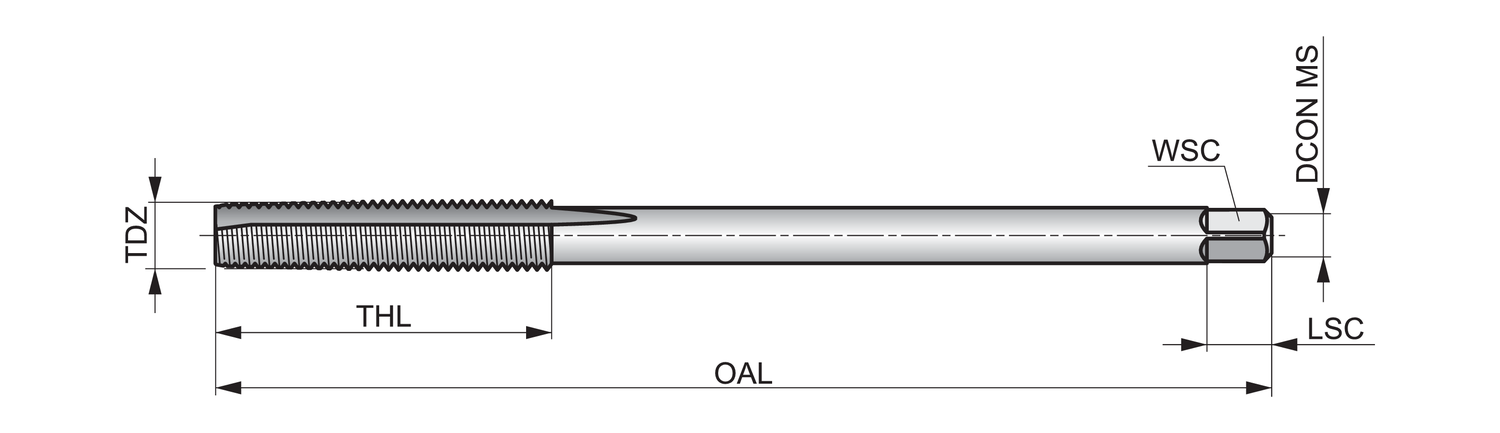

Material: HSS-E

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 3.937

Connetion Diameter: 0.1378

Tool Direction: Right

Diameter Size: 5

Pitch - mm: 0.8

Pitch - in: 0.0315

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 90404

EAN: 7320760090404

MFG Part Number: 5975984
