E303M8NO1

E303M8NO1

SKU DOR5976066
by Dormer Pramet
Primary Use: Possible Use:

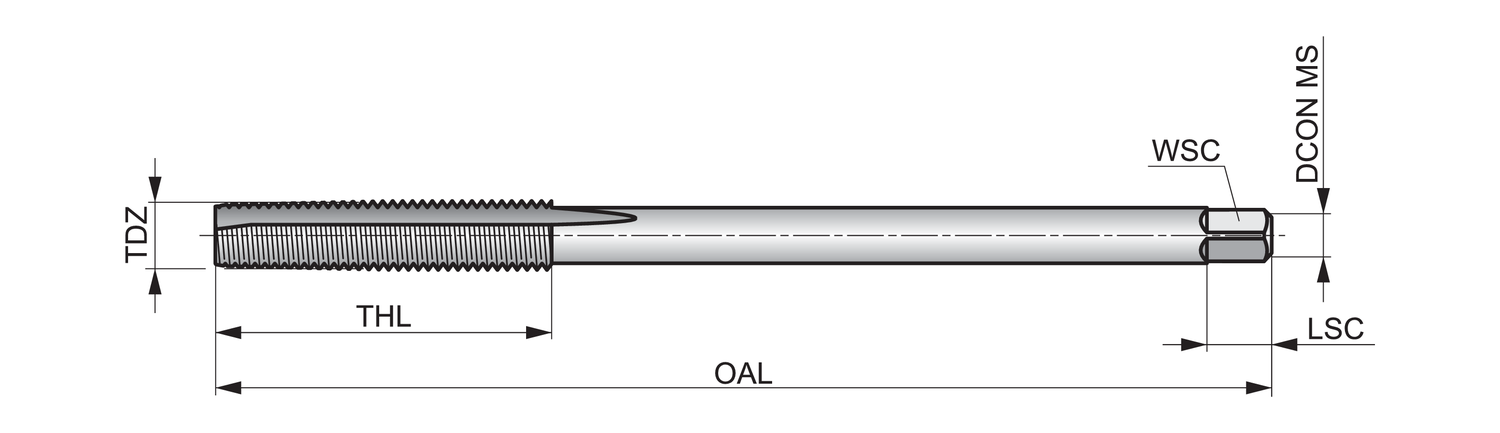

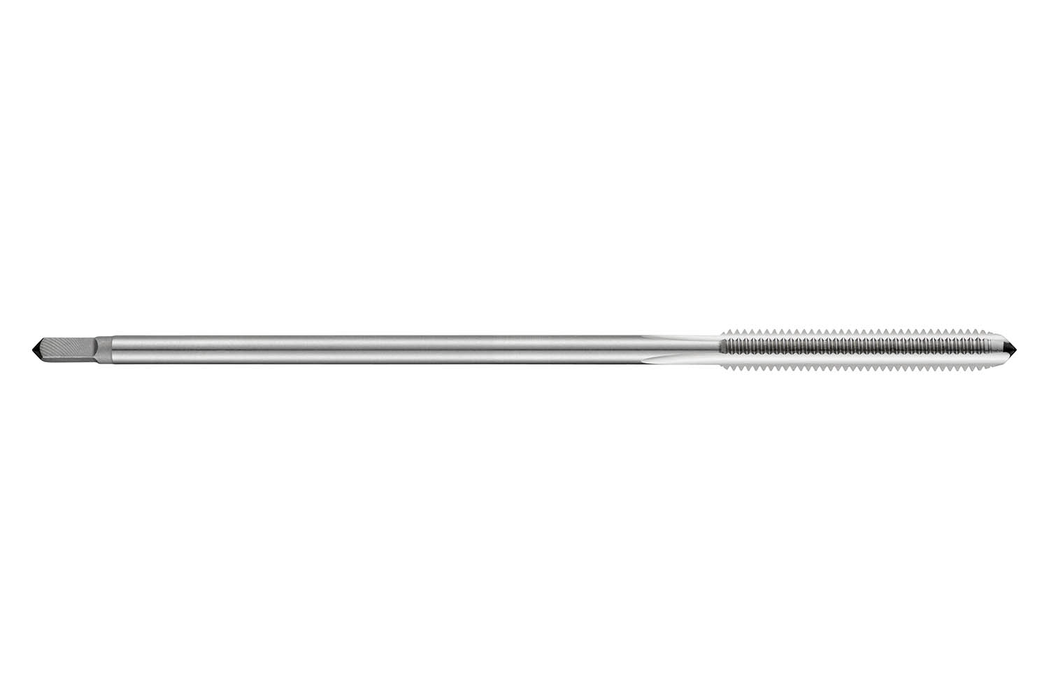

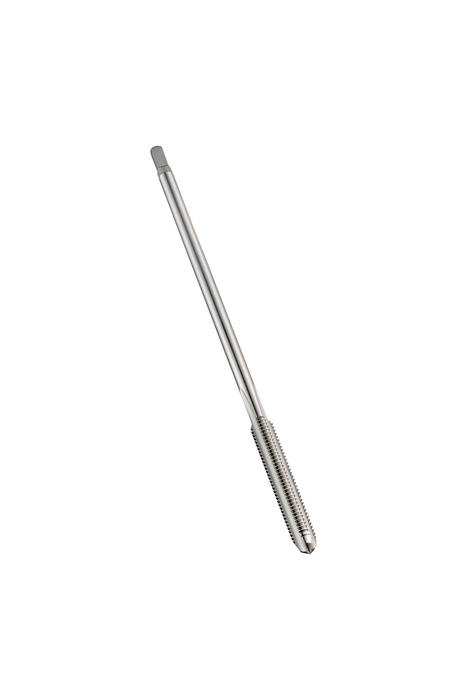

Straight flute nut tap with a 18-20xP extra long taper lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 357 standard with 6.0mm shank and 4.9mm square drive, cobalt based HSS-E with bright finish for 2xD through or blind hole threading in free machining steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$49.33 - $49.33
$49.33
$49.33 - $49.33
$49.33
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS-E

Lenxth x Diameter Ratio: 2

Overall Length (OAL): 4.9213

Connetion Diameter: 0.2362

Tool Direction: Right

Diameter Size: 8

Pitch - mm: 1.25

Pitch - in: 0.0492

Thread Form: M - Metric coarse

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 90435

EAN: 7320760090435

MFG Part Number: 5976066
