E22912-28

E22912-28

SKU DOR5976136
by Dormer Pramet
Primary Use: Possible Use:

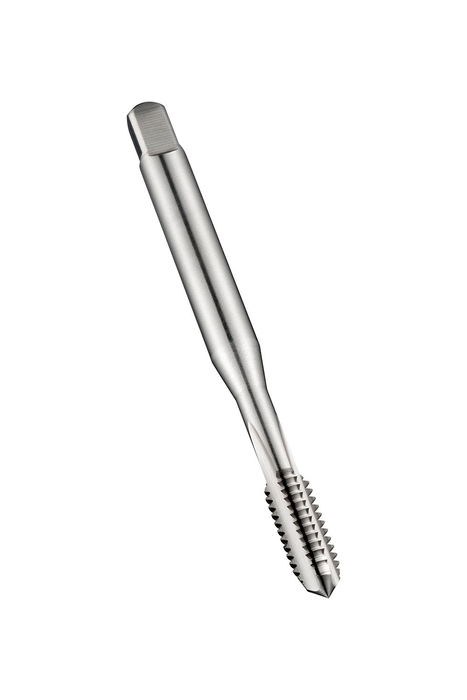

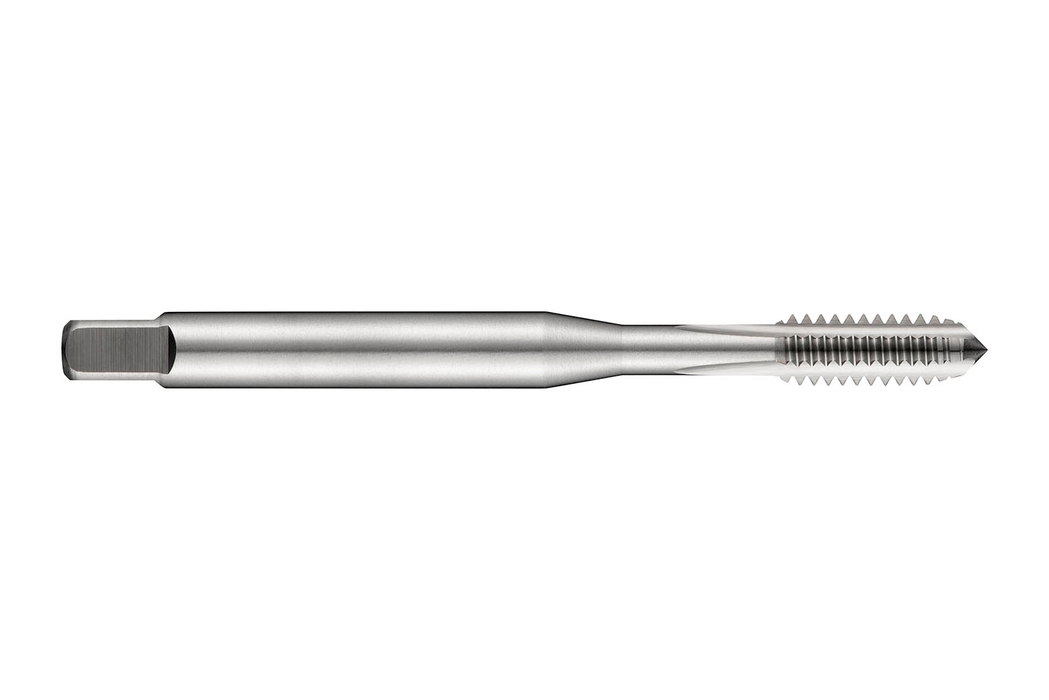

Straight flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 12 with 28 TPI and 2B class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$40.67 - $40.67
$40.67
$40.67 - $40.67
$40.67
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

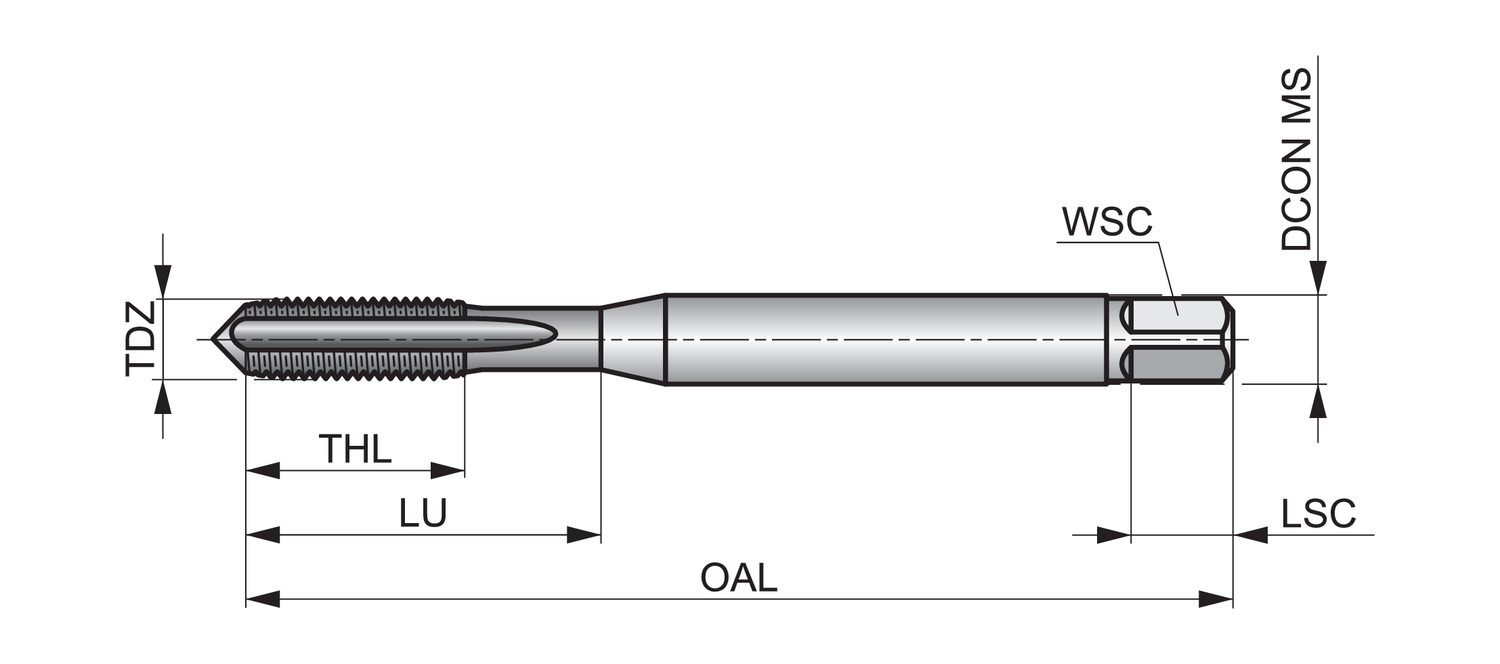

Material: HSS-E-PM

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 3.1496

Connetion Diameter: 0.2362

Tool Direction: Right

Diameter Size: 12

Thread Diameter - in: 0.216

Thread Diameter - mm: 5.486

TPI: 28.0

Thread Form: UNF - Unified Fine

Shank: Cylindrical shank with Square

Usable Length: 1.1811

Grade: Bright

EDP: 86308

EAN: 7320760086308

MFG Part Number: 5976136
