E2292-64

E2292-64

SKU DOR5976140
by Dormer Pramet
Primary Use: Possible Use:

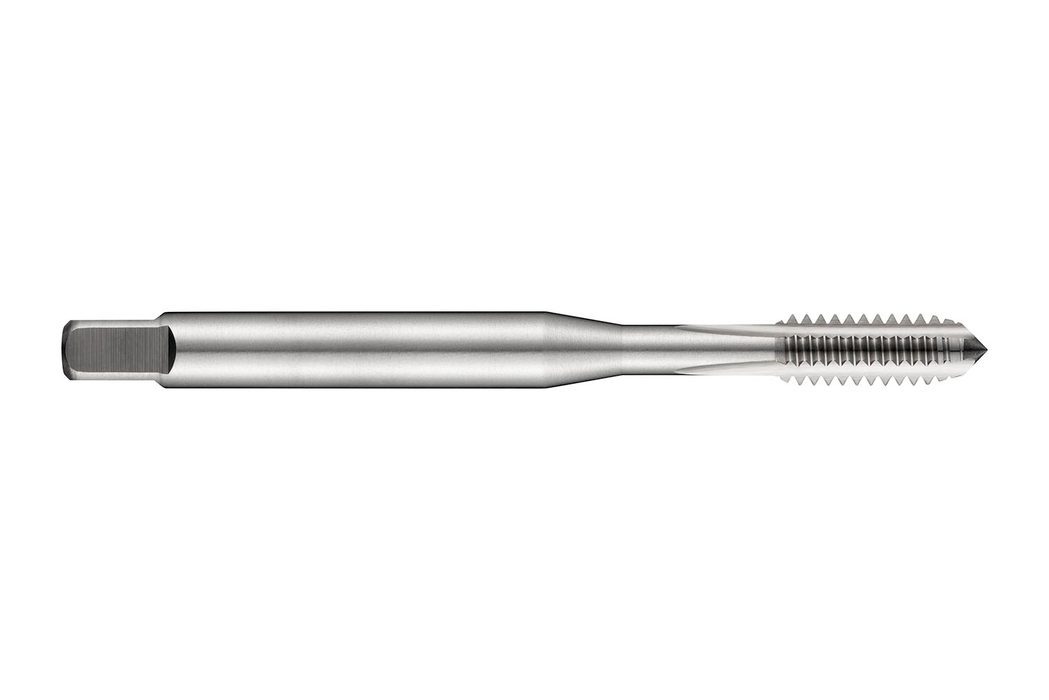

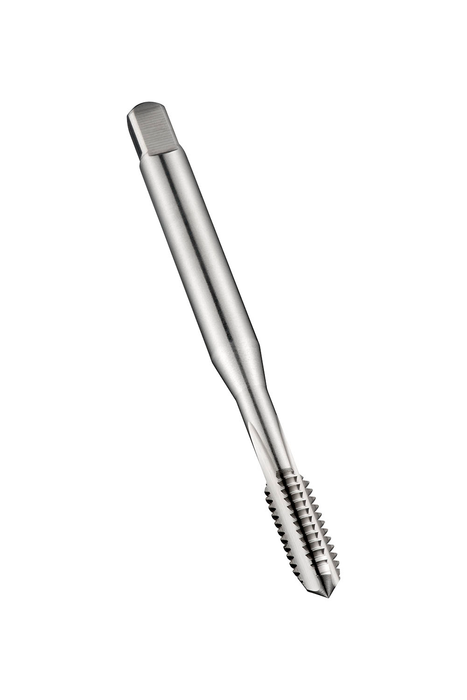

Straight flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 2 with 64 TPI and 2B class of fit, dimensions according to DIN 371 standard with 2.8mm shank and 2.1mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$51.99 - $51.99
$51.99
$51.99 - $51.99
$51.99
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

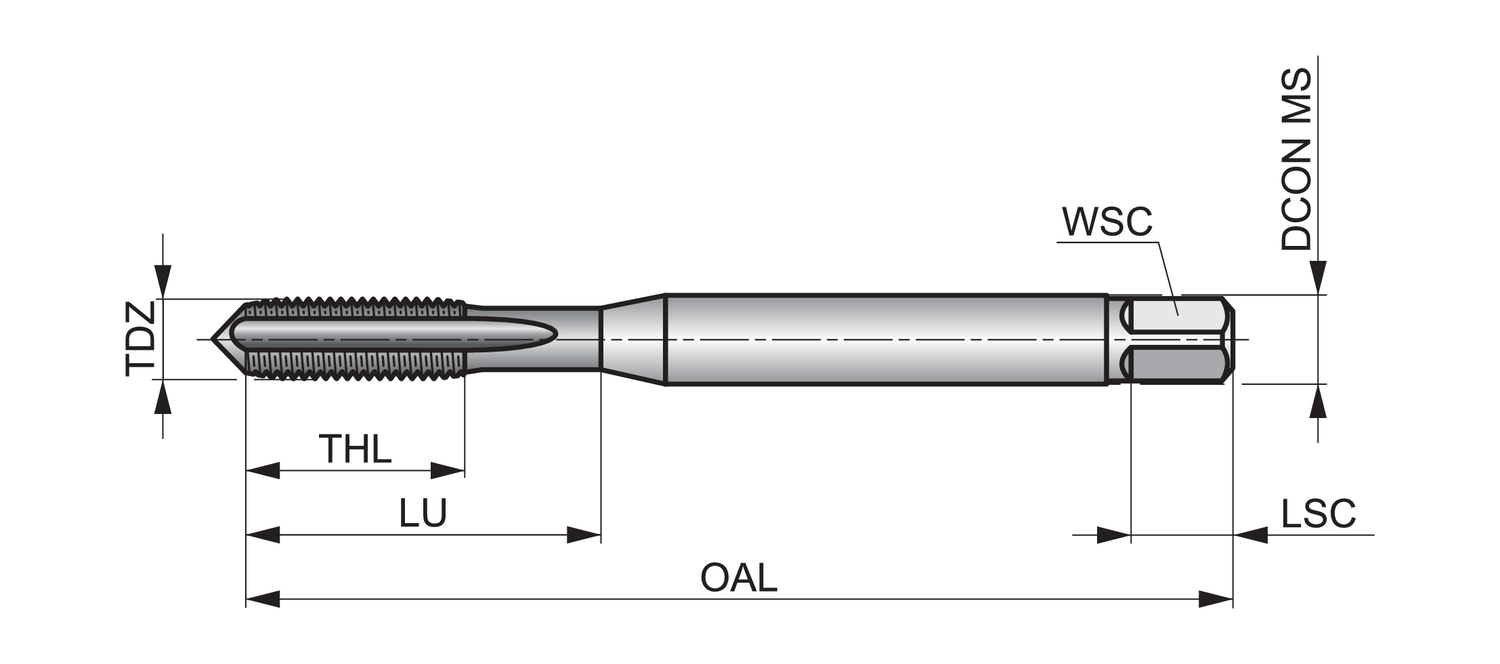

Material: HSS-E-PM

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 1.7717

Connetion Diameter: 0.1102

Tool Direction: Right

Diameter Size: 2

Thread Diameter - in: 0.086

Thread Diameter - mm: 2.184

TPI: 64.0

Thread Form: UNF - Unified Fine

Shank: Cylindrical shank with Square

Usable Length: 0.4724

Grade: Bright

EDP: 86322

EAN: 7320760086322

MFG Part Number: 5976140
