E5247/8NO6

E5247/8NO6

SKU DOR5976178
by Dormer Pramet
Primary Use: Possible Use:

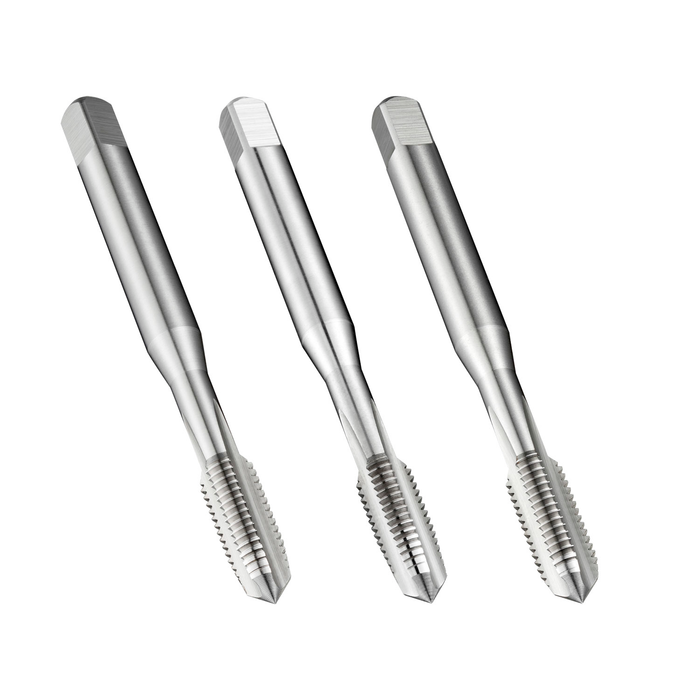

Set of straight flute hand taps NO6 for Unified National Fine thread UNF 7/8" with 14 TPI and 2B class of fit, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 529 standard with 16.0mm shank and 12.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$391.67 - $391.67
$391.67
$391.67 - $391.67
$391.67
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

Overall Length (OAL): 4.6457

Connetion Diameter: 0.6299

Tool Direction: Right

Diameter Size: 7/8

Thread Diameter - in: 0.875

Thread Diameter - mm: 22.225

TPI: 14.0

Thread Form: UNF - Unified Fine

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 153338

EAN: 7320760153338

MFG Part Number: 5976178
