E5471/4NO1

E5471/4NO1

SKU DOR5976327
by Dormer Pramet
Primary Use: Possible Use:

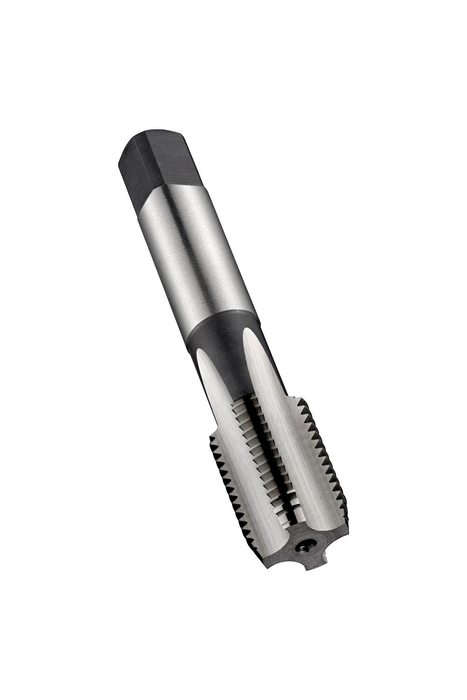

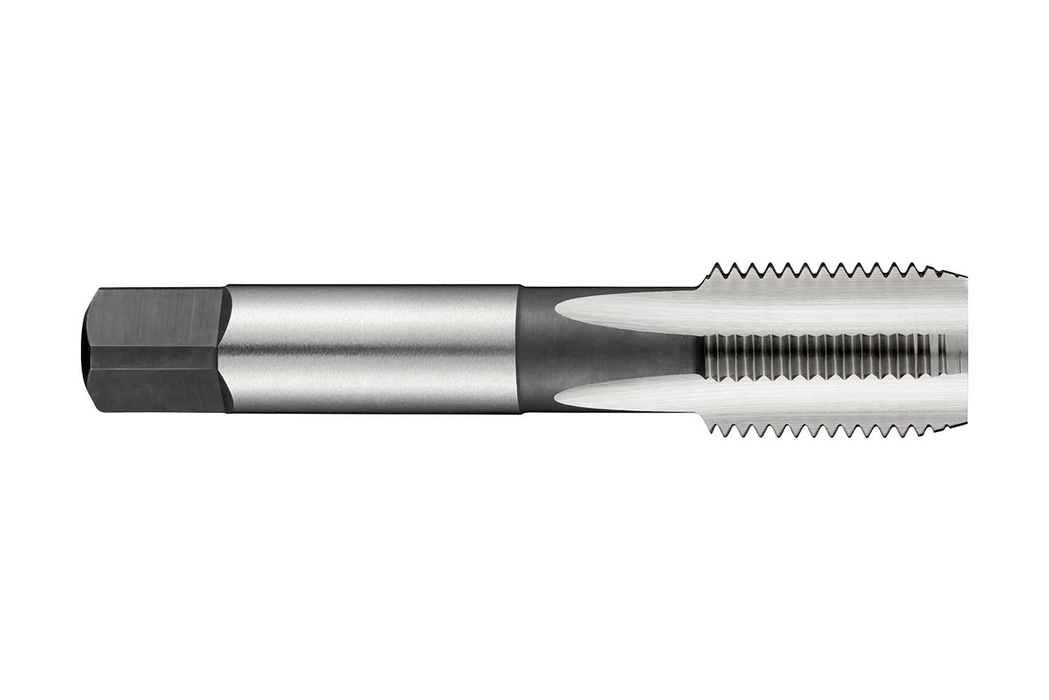

Straight flute hand tap NO1 with a 6-8xP taper lead, for British Standard Pipe thread G 1/4" with 19 TPI and Normal class of fit, dimensions according to ISO 2284 standard with 10.0mm shank and 8.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel

Inventory
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)

Sold in packs of: 1

For more information about this product, click here
$50.34 - $50.34
$50.34
$50.34 - $50.34
$50.34
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.

Material: HSS

Lenxth x Diameter Ratio: 1.5

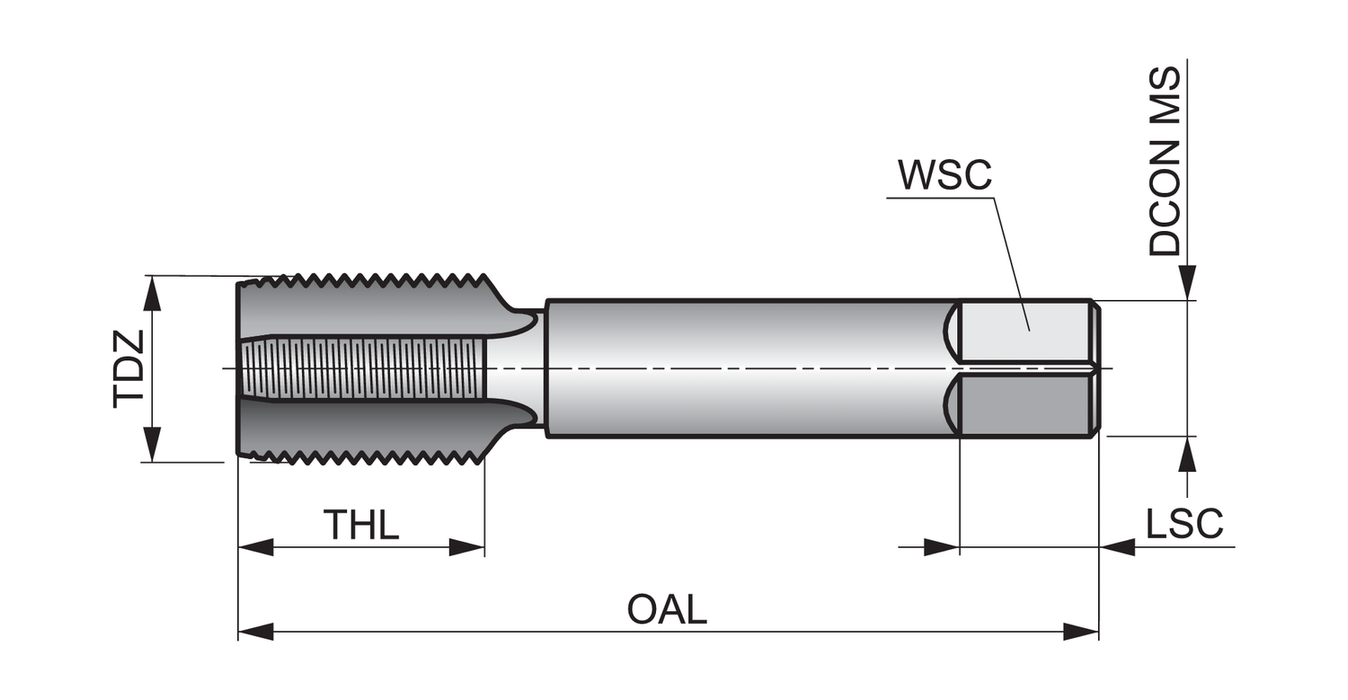

Overall Length (OAL): 2.6378

Connetion Diameter: 0.3937

Tool Direction: Right

Diameter Size: 1/4

Thread Diameter - in: 0.518

Thread Diameter - mm: 13.157

TPI: 19.0

Thread Form: G - British standard pipe fastening - G series

Shank: Cylindrical shank with Square

Grade: Bright

EDP: 157190

EAN: 7320760157190

MFG Part Number: 5976327
